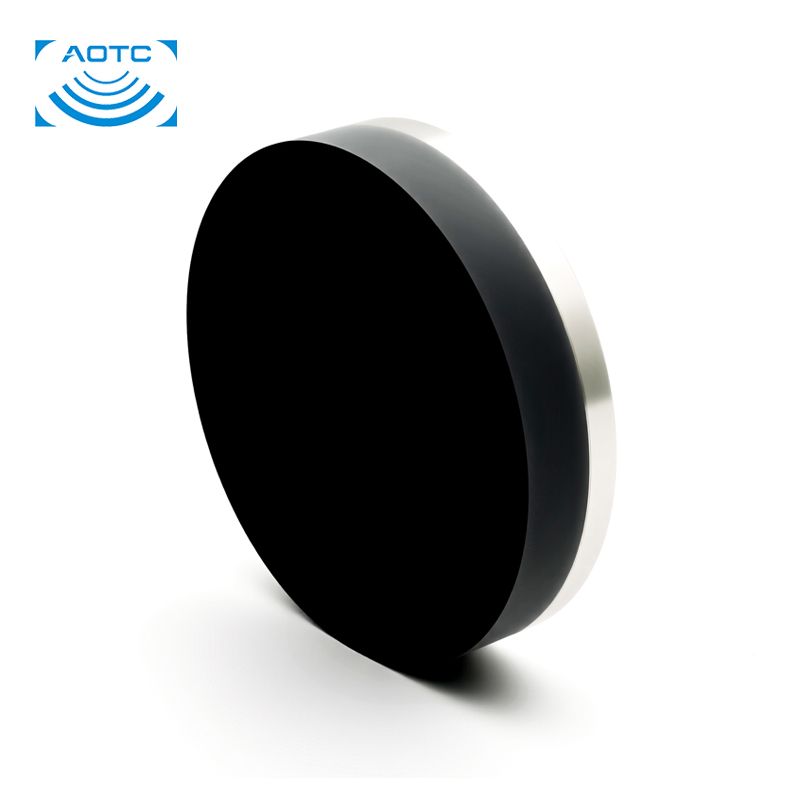

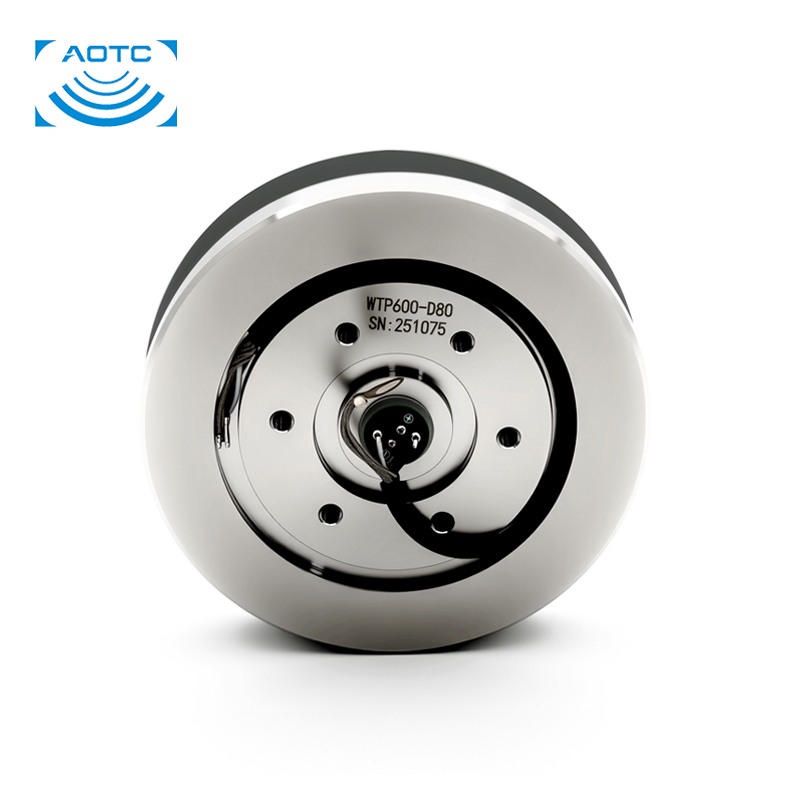

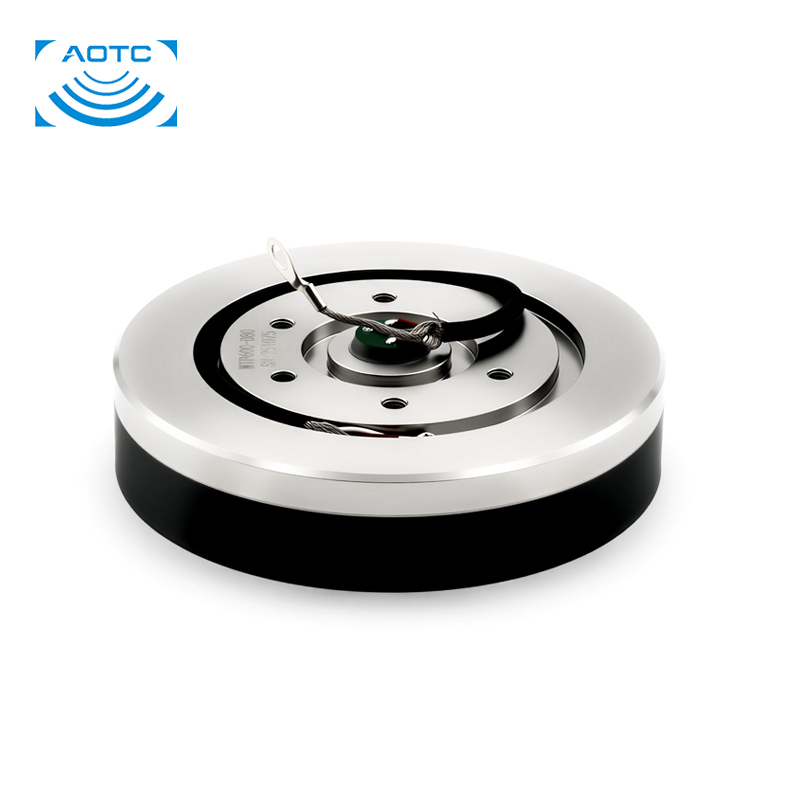

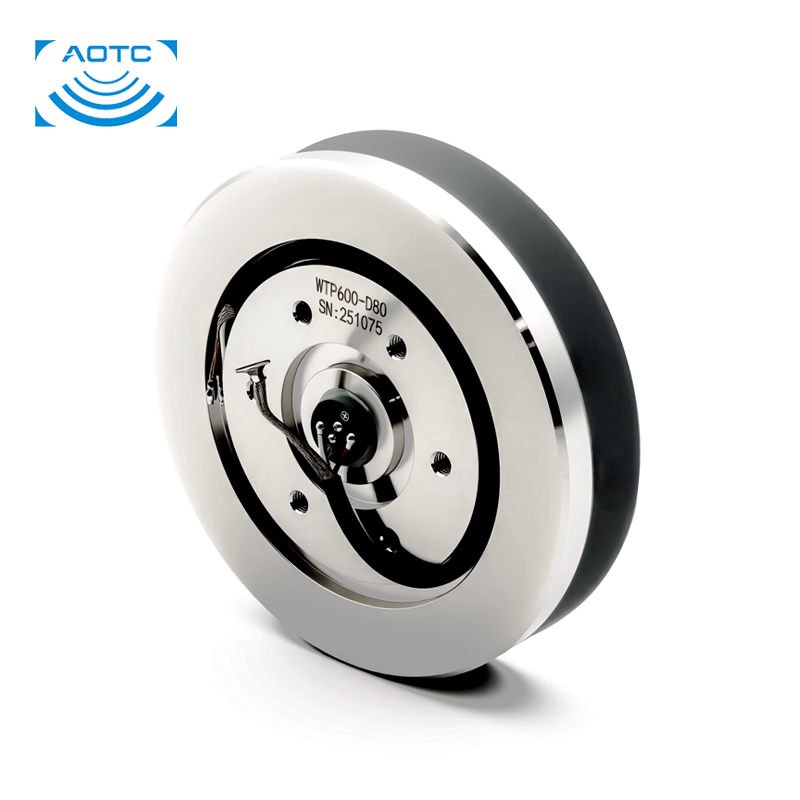

WTP600-D80(M4) Broadband Flat Piston Transducer



● Static Capacitance (C₀): 14 nF
● Center Frequency (f _c): 600 kHz

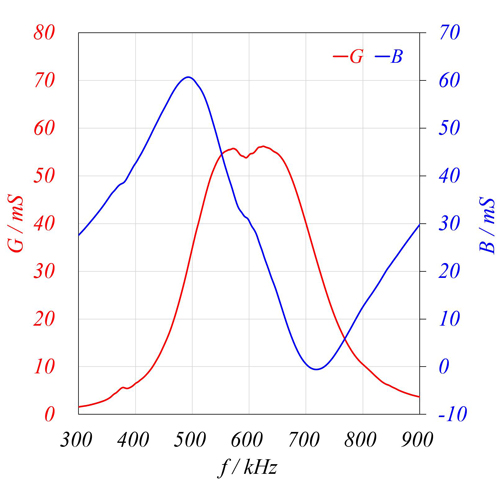

● Impedance @ f _c: 15Ω± 30%
● Impedance Bandwidth: ≥ 200 kHz

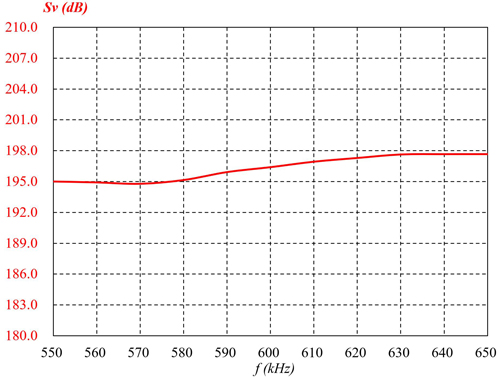

● TVR@ f _c: ≥ 196 dB re 1 μPa•m/V
● Source Level @ f _c: ≥ 222 dB re 1 μPa•m

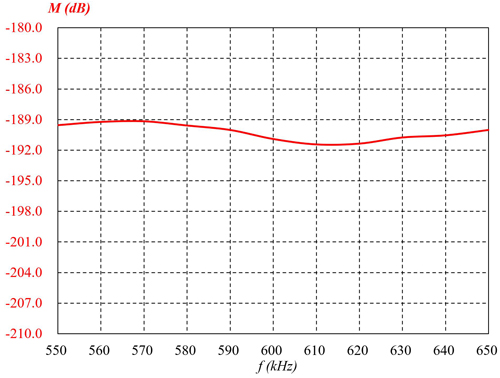

● OCVS@ f _c: ≥ -191 dB re 1 V/μPa

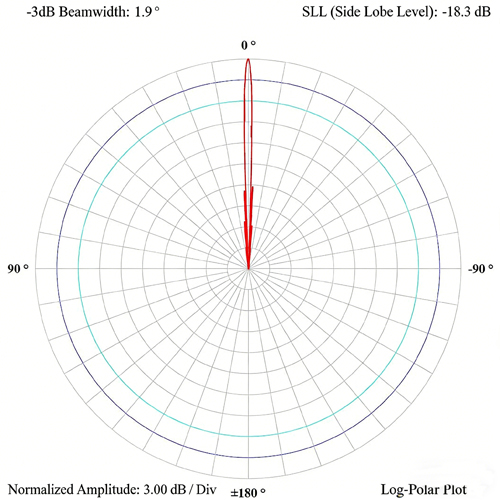

● Beam Pattern θ-3dB: 1.9° ± 0.2°
● First Side Lobe Level: ≤ -15 dB
● Maximum Operating Depth: 450 m
● Interface Type: PCB terminal block
● Main Body Material: Titanium alloy
● Weight: ≤ 600 g
