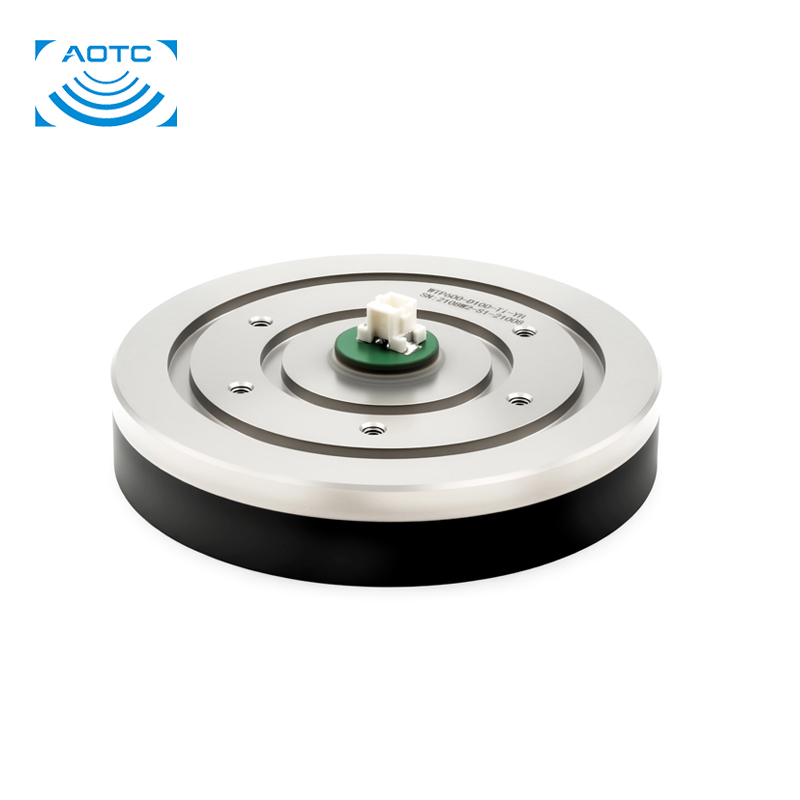

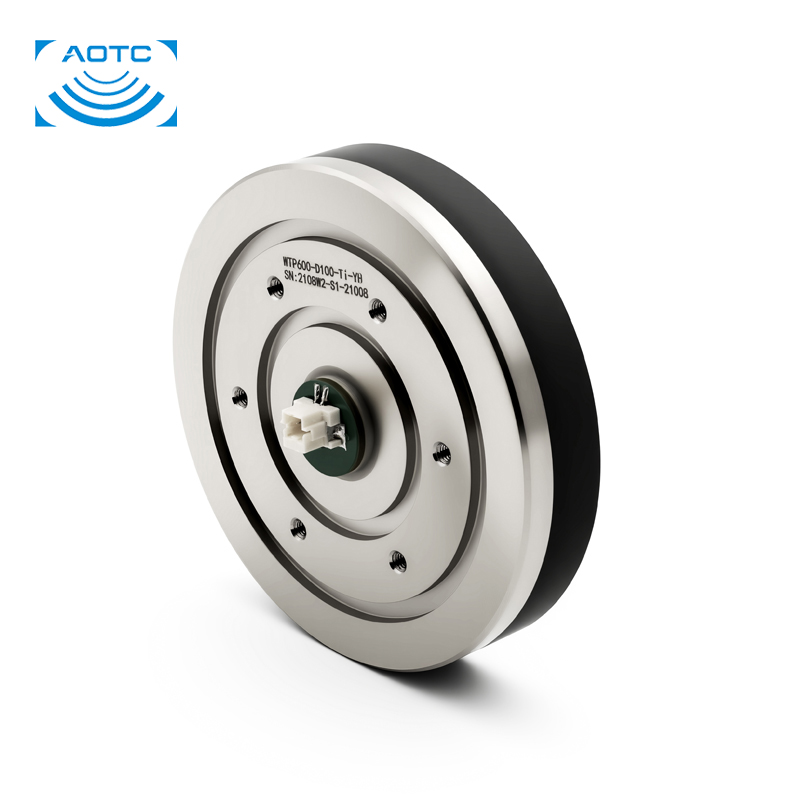

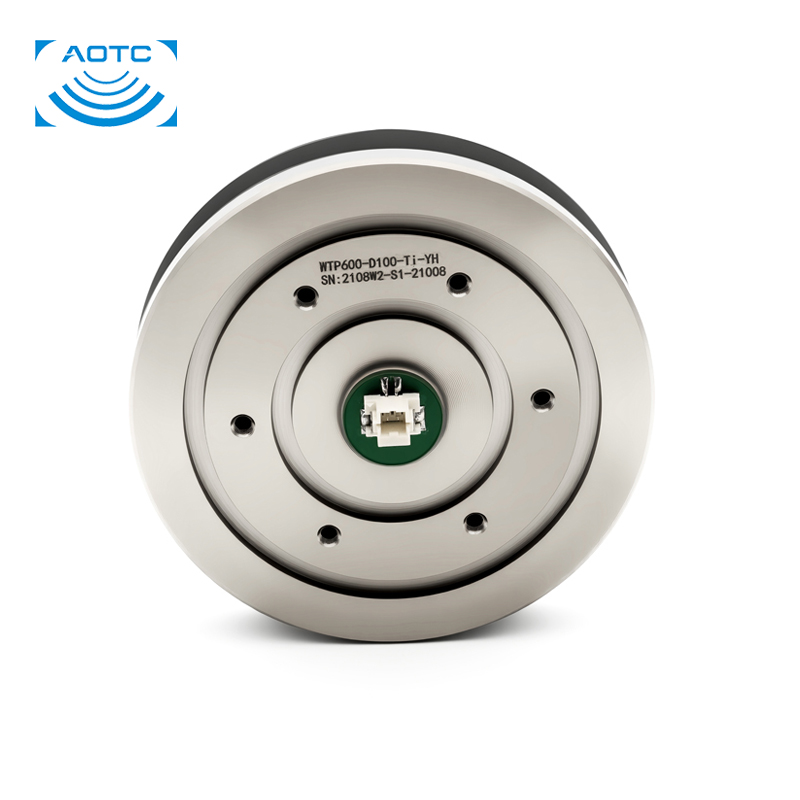

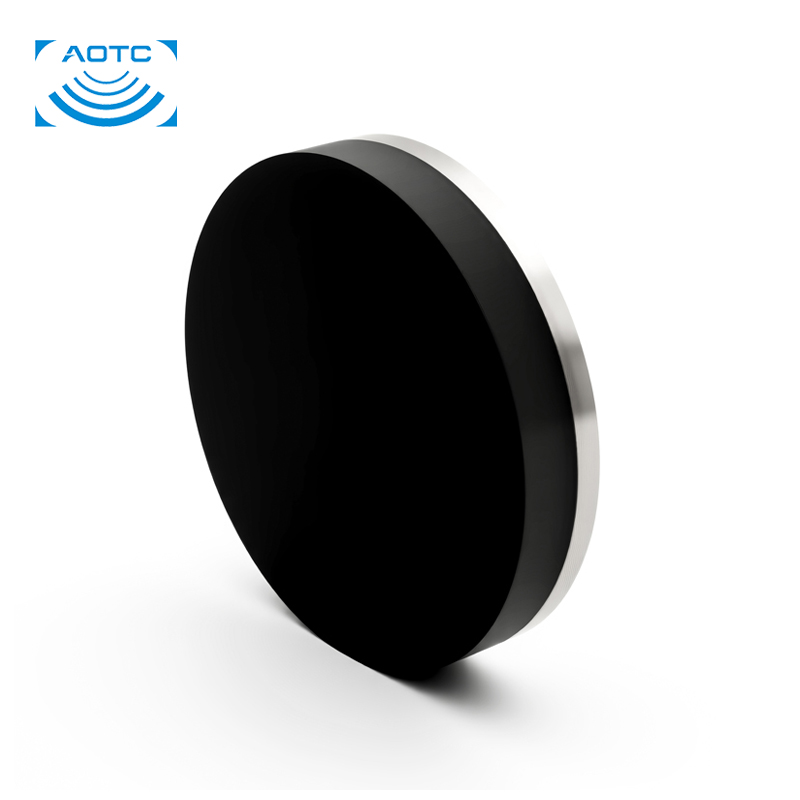

WTP600-D100-Ti Broadband Flat Piston Transducer



● Static Capacitance (C₀): 23 nF
● Center Frequency (f _c): 600 kHz

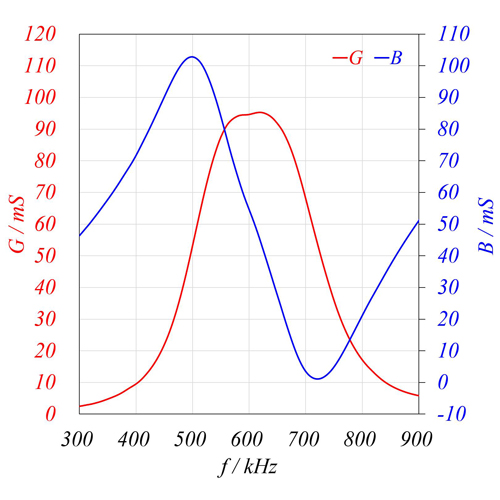

● Impedance @ f _c: 10 Ω ± 30%
● Impedance Bandwidth: ≥ 120 kHz

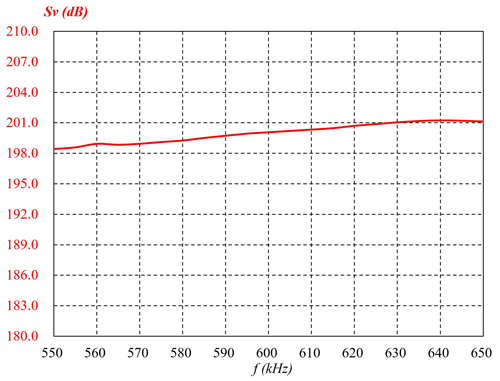

● TVR@ f _c: ≥ 198 dB re 1 μPa•m/V
● Source Level @ f _c: ≥ 225 dB re 1 μPa•m

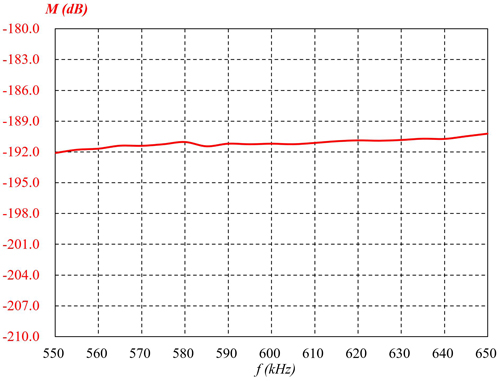

● OCVS @ f _c: ≥ -195 dB re 1 V/μPa

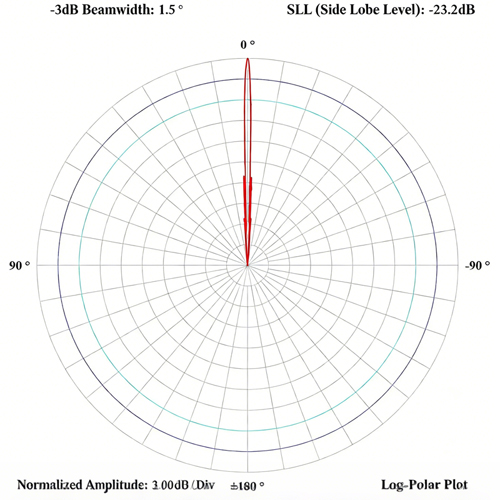

● Beam Pattern: 1.5° ± 0.2°
● Side Lobe to Main Lobe Ratio: ≤ -15 dB
● Maximum Operating Depth: 450 m

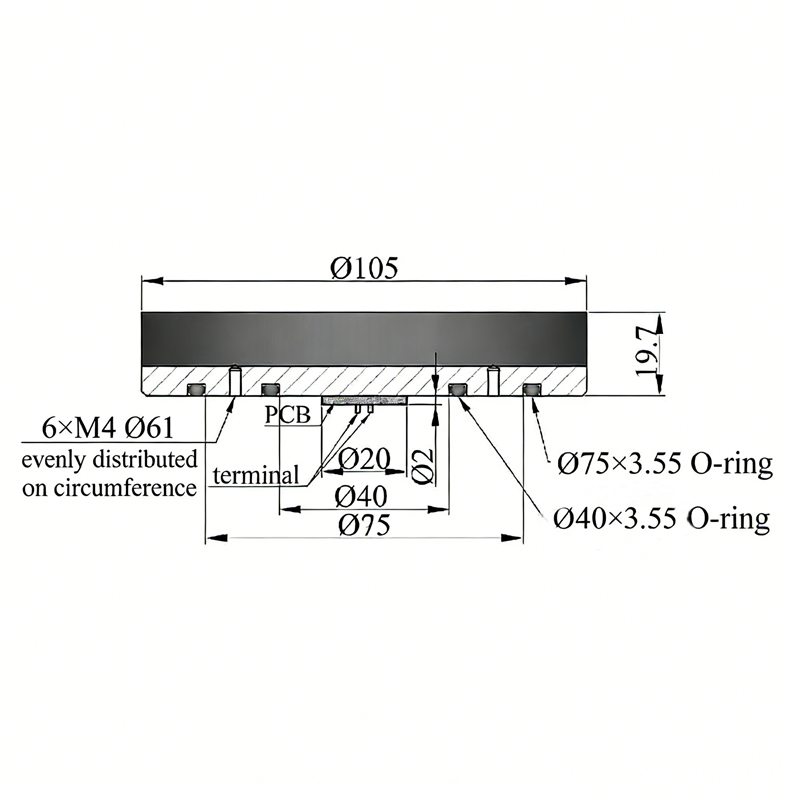

● Interface Type: PCB terminal block
● Main Body Material: Titanium alloy
● Weight: ≤ 900 g
