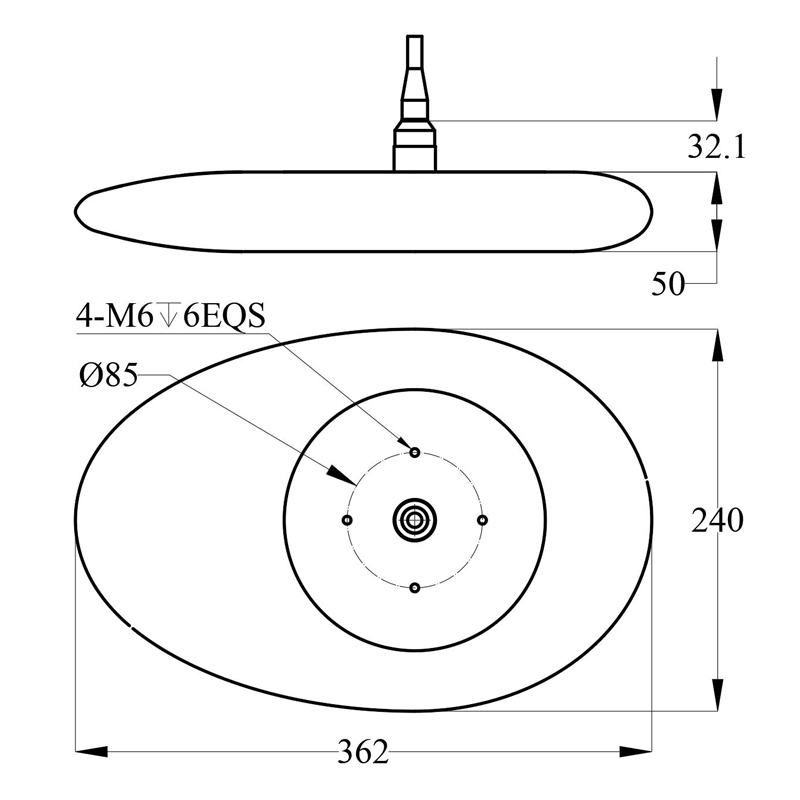

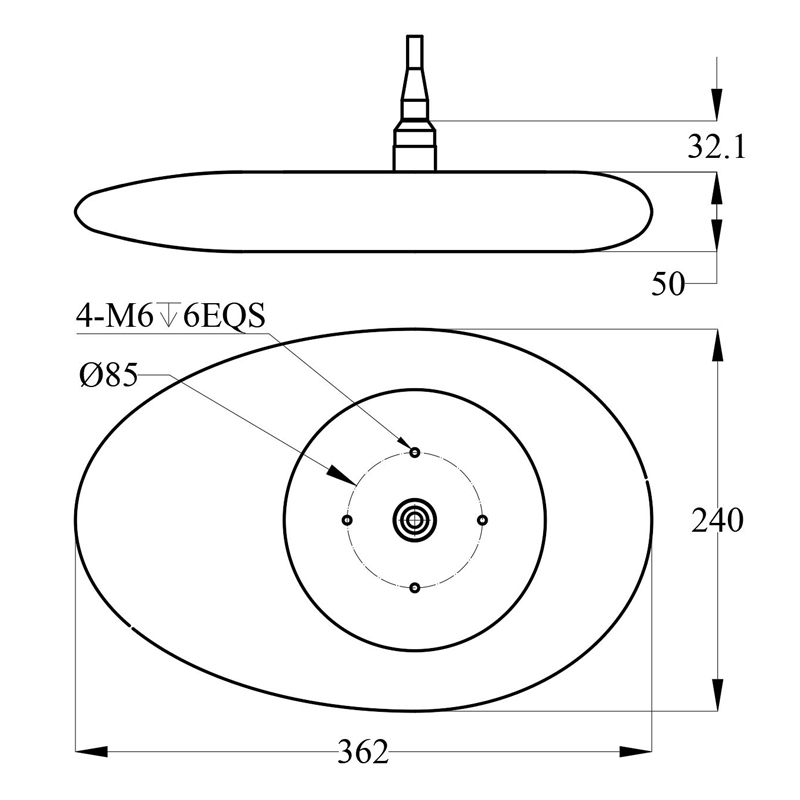

WTP110-D180-CL20 Broadband Flat Piston Transducer



● Central frequency (f _c): 110 kHz
● Static capacitance (C₀): 19 nF

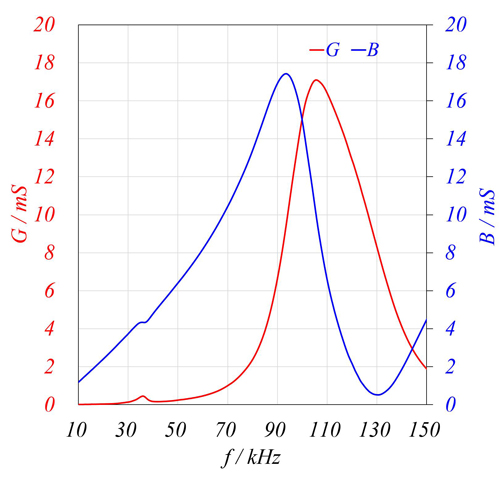

● Impedance bandwidth: ≥ 25 kHz

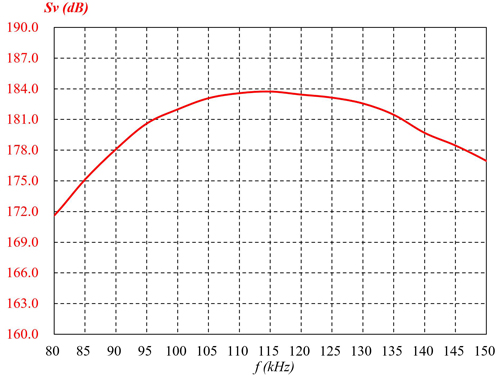

● TVR @ 110 kHz: 183 dB re 1 μPa•m/V

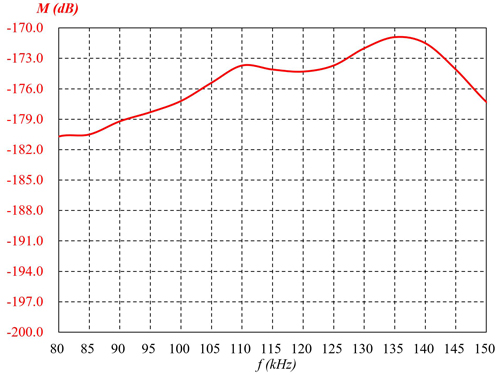

● Low-frequency OCVS@ 20 kHz: -191 dB re 1 V/μPa

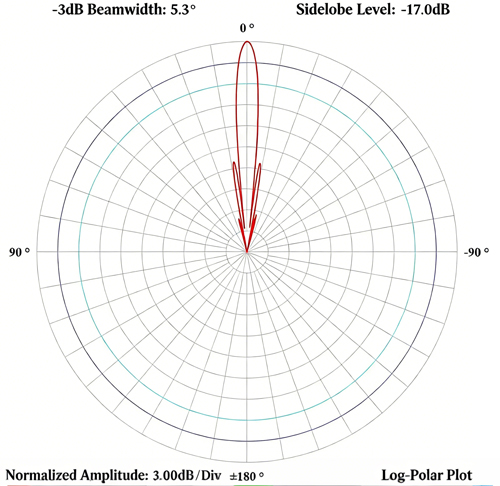

● Beam Patternθ-3dB @ 110 kHz: 5° ± 0.5°
● Maximum operating depth: 50 m
● Cable: 4-core shielded cable
● Cable length: Standard 20 m, customizable
● Main body material: Stainless steel and polyurethane
● Weight: 5 kg
