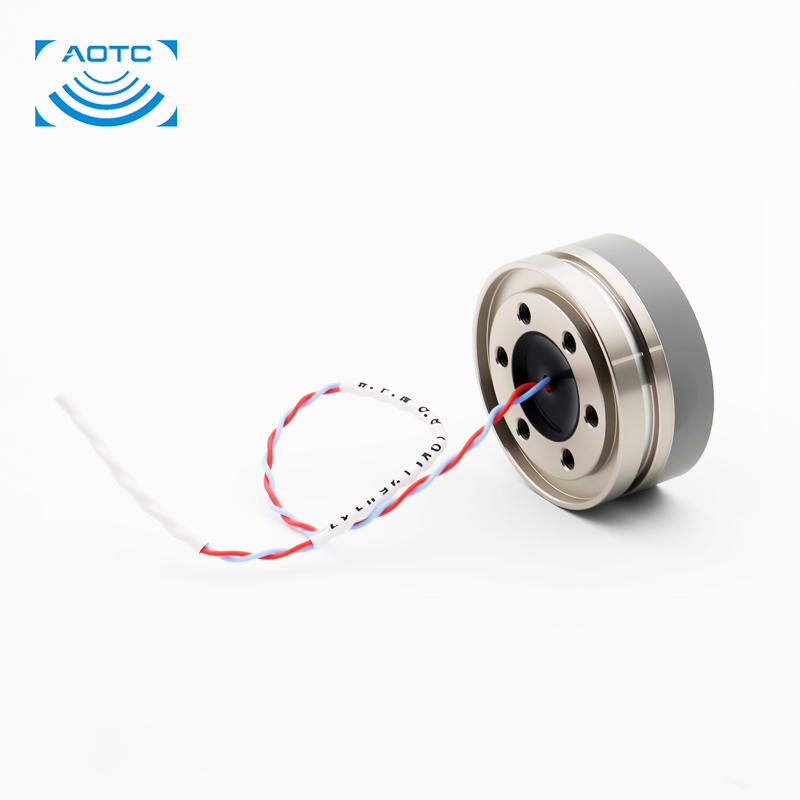

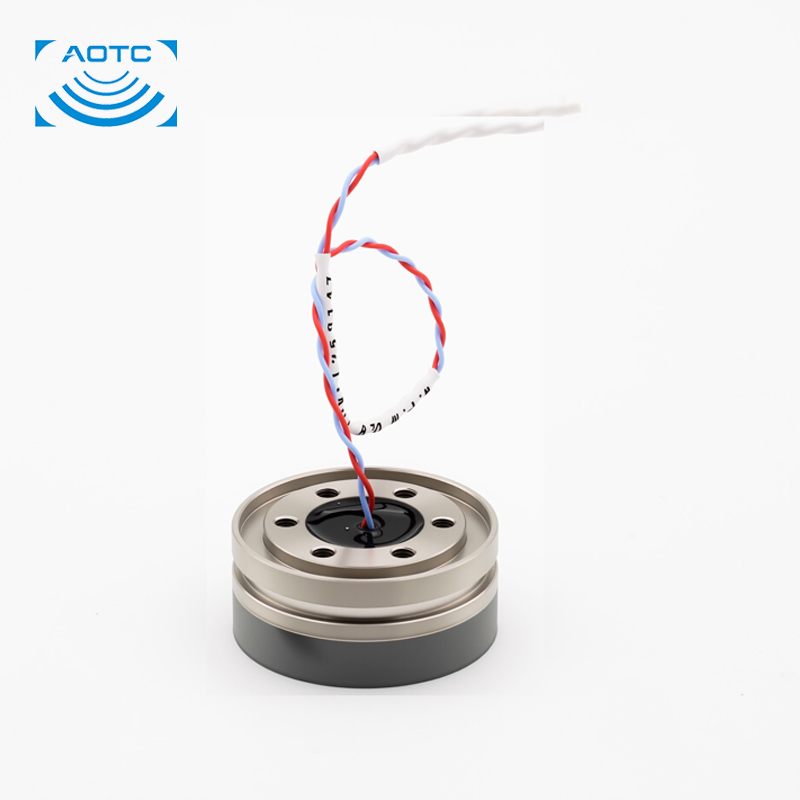

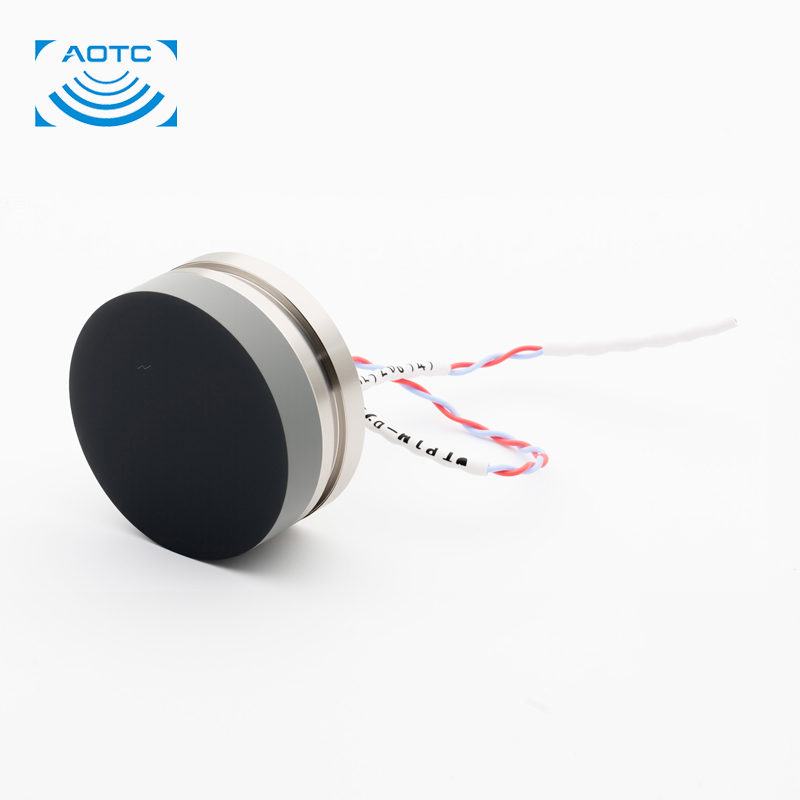

WTP1M-D28 Broadband Flat Piston Transducer



● Center Frequency f _c：1.0 MHz
● Static Capacitance C₀：3.0 nF

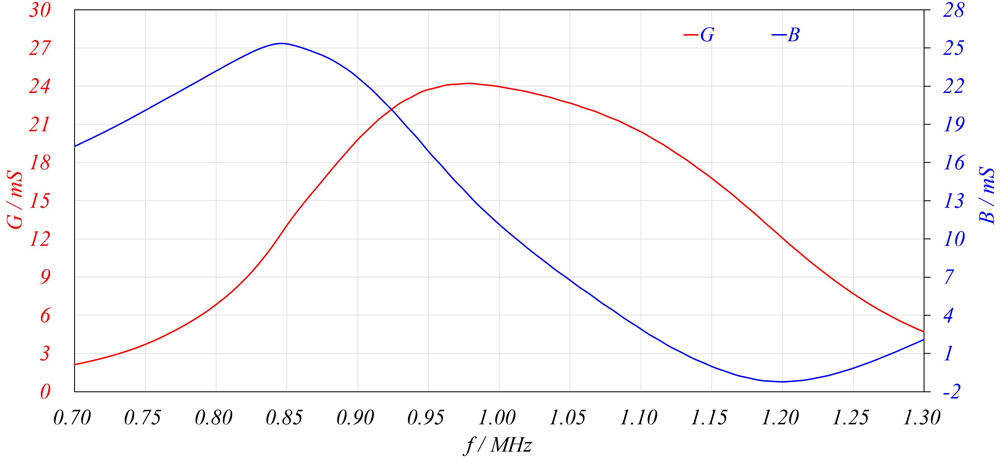

● Impedance @1MHz：85Ω±30%
● Impedance Bandwidth：≥300 kHz
● TVR@f1MHz：≥183dB re 1 μPa•m/V
● OCVS @1MHz：≥-196dB re 1V/μPa

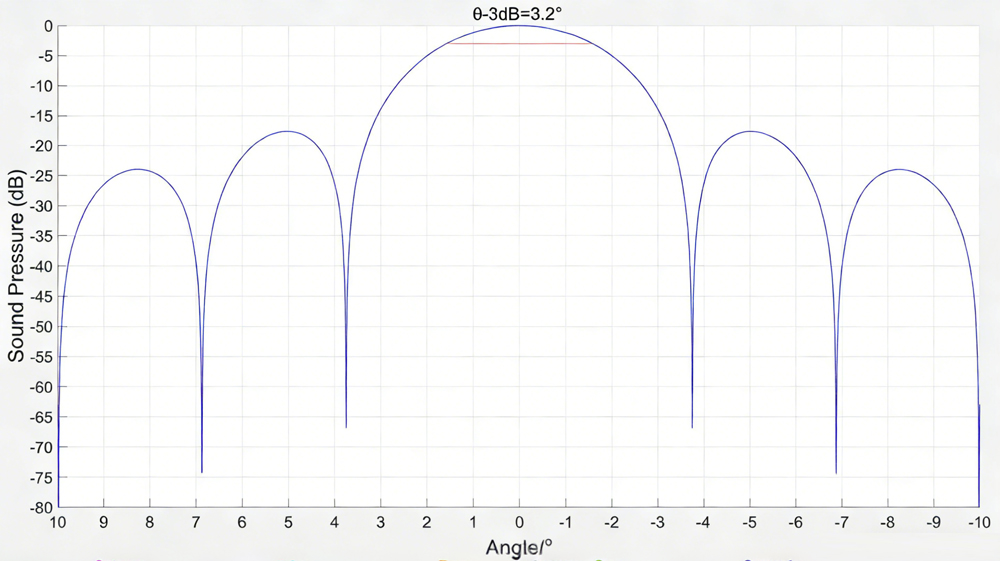

● Beam Patternθ-3dB： 3.2°±0.5°
● Side Lobe to Main Lobe Ratio：≤-15 dB
● Maximum Operating Depth：300m

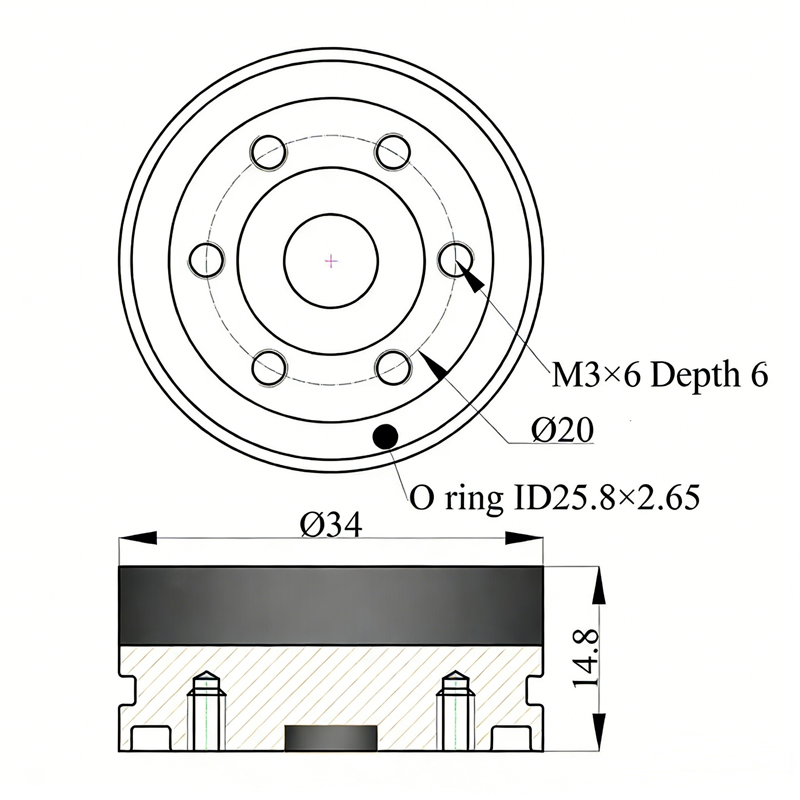

● Interface Type： PCB terminal block
● Main Body Material: SS
● Weight：58 g
