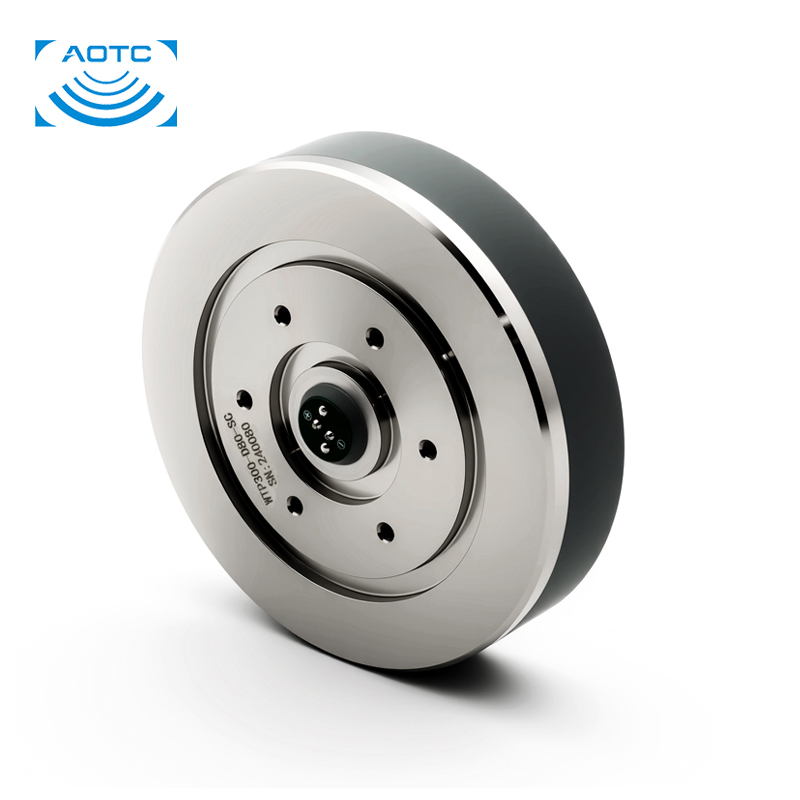

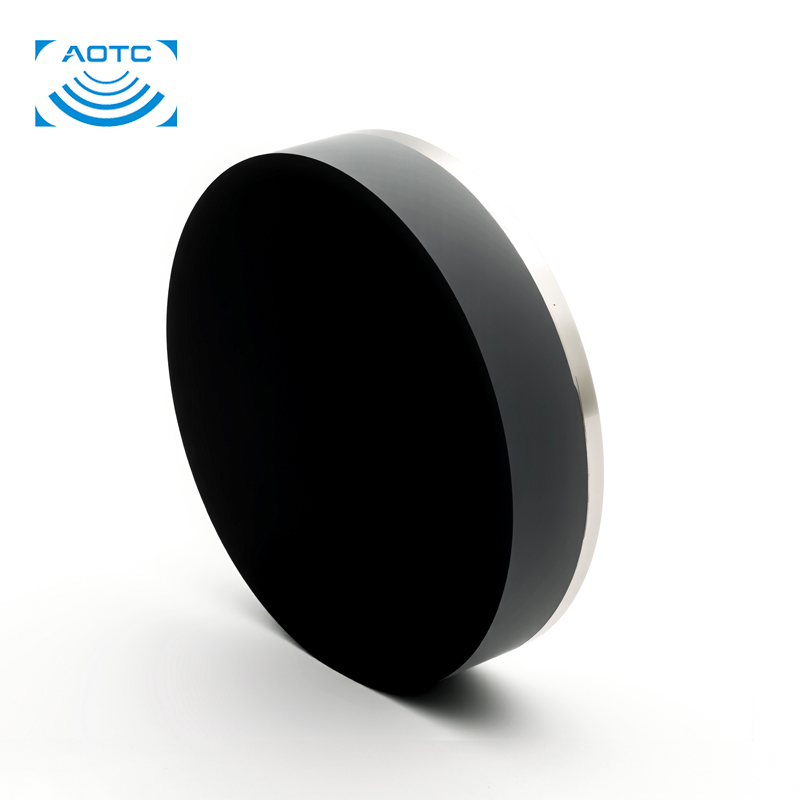

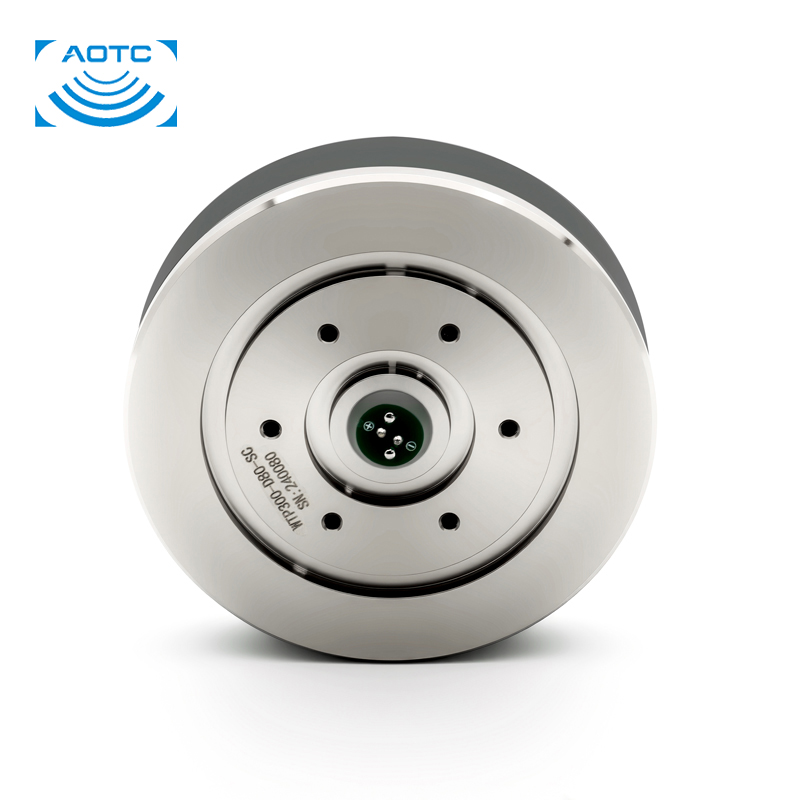

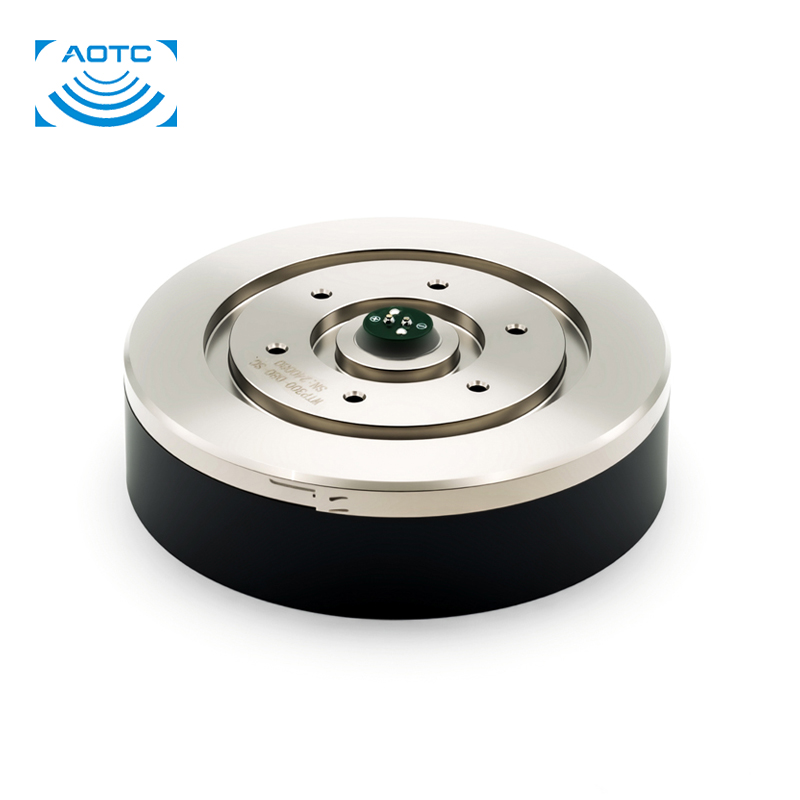

WTP300-D80-SC Broadband Flat Piston Transducer



● Resonant Frequency (f _c): 300 ± 30 kHz
● Static Capacitance (C₀): 8.0 nF
● Recommended Frequency Range: 300 ± 30 kHz

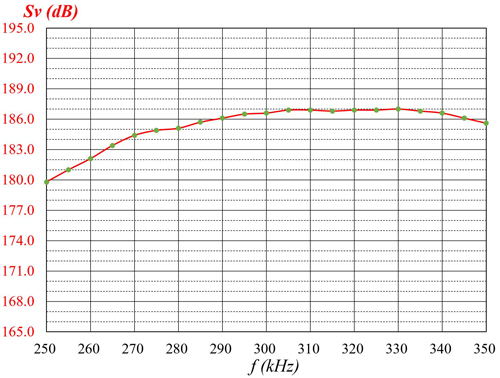

● TVR@f _cᵣ: 180 dB re 1 μPa•m/V

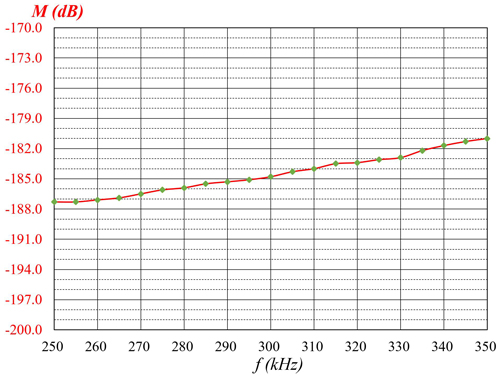

● OCVS @f _c: -185 dB re 1 V/μPa

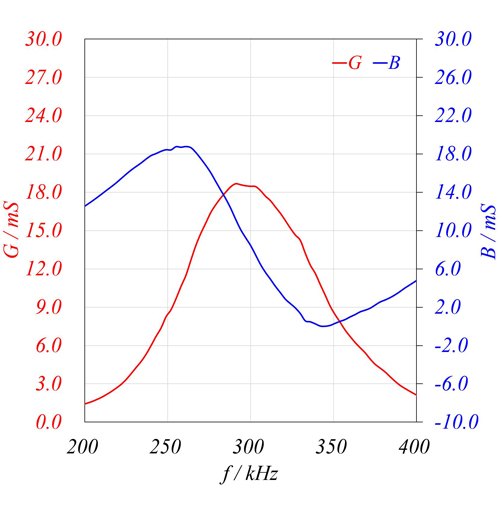

● Transmitting Impedance @f _c: ≥ 40 Ω
● Transducer Array Impedance Bandwidth: ≥ 30 kHz

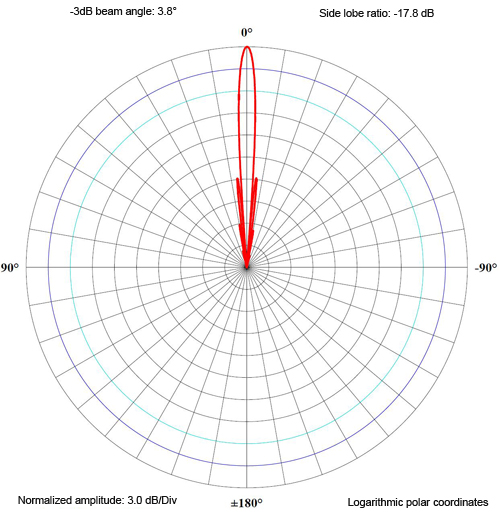

● Beam Pattern: 3.8° ± 0.5°
● Side Lobe to Main Lobe Ratio: ≤ -15 dB
● Maximum Operating Depth: 1500 m
● Interface Type: Twisted Pair Short Cable
● Main Body Material: Stainless Steel
● Weight: ≤ 900 g
