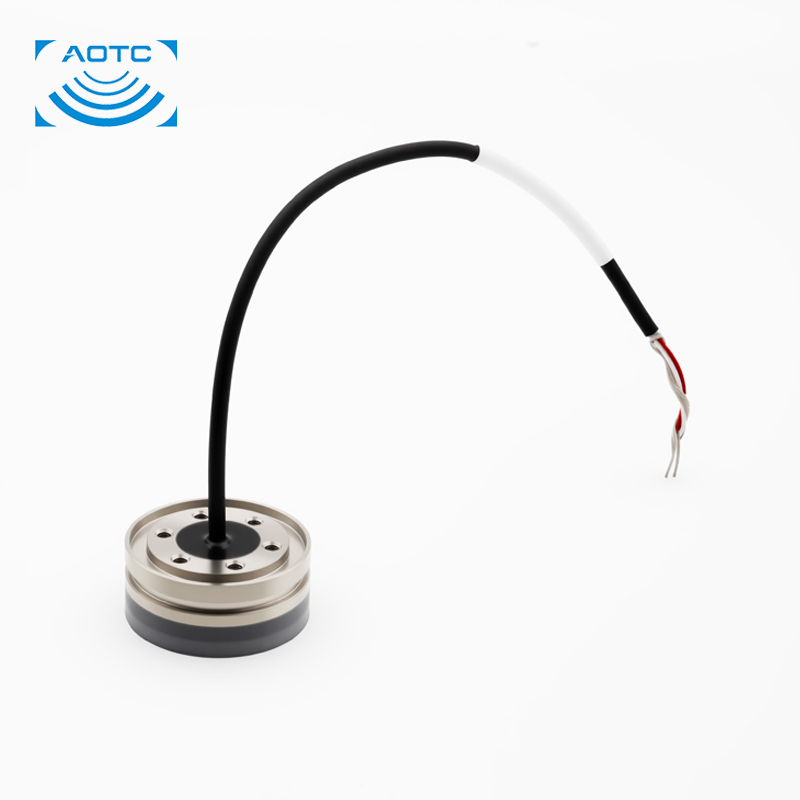

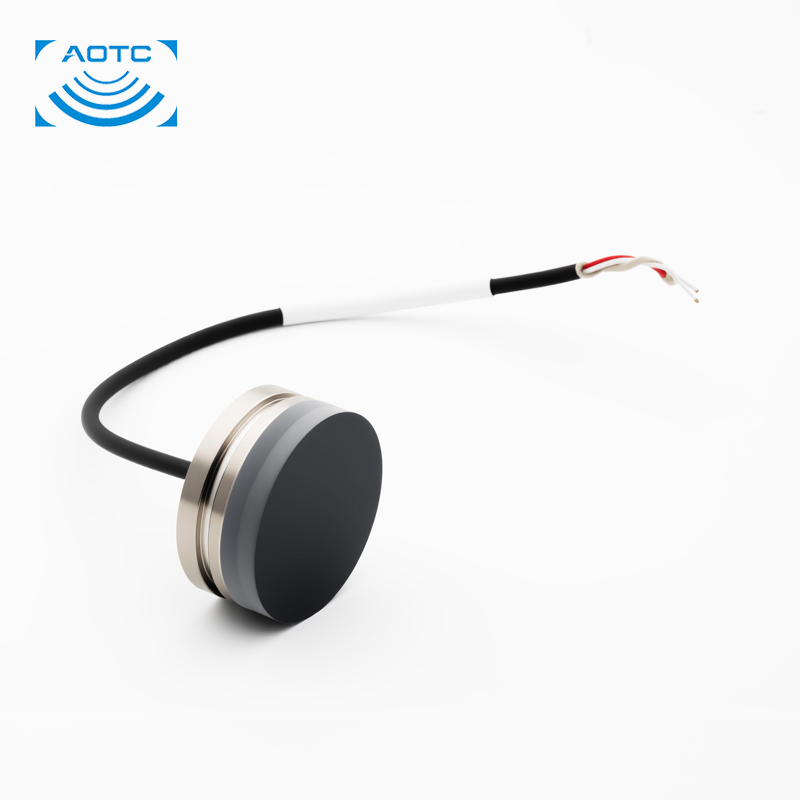

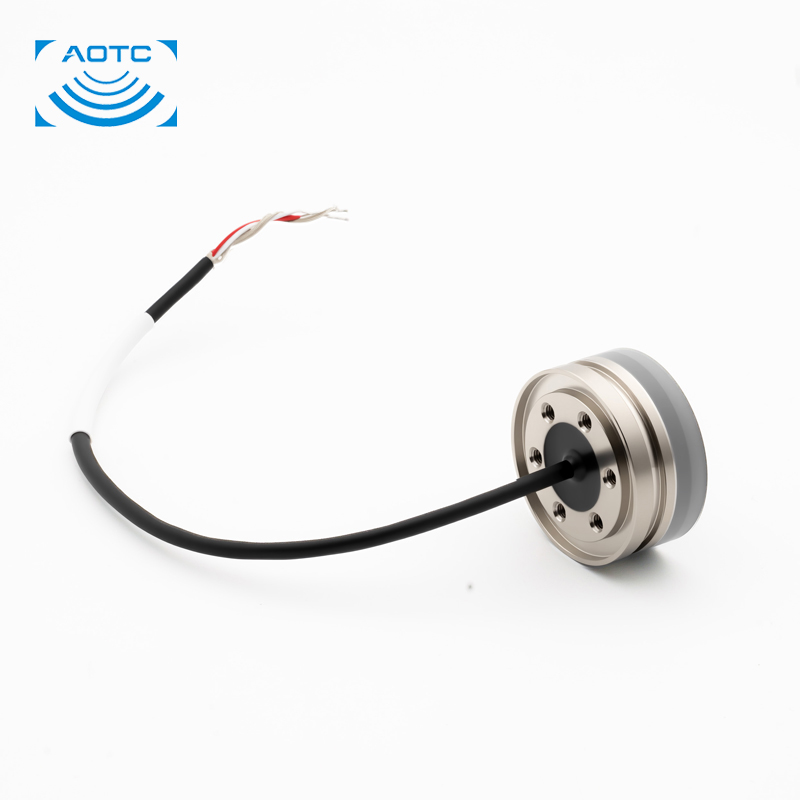

WTP2.4M-D28 Broadband Flat Piston Transducer



● Center Frequency f _c：2.4 MHz
● Static Capacitance C₀：8.4 nF

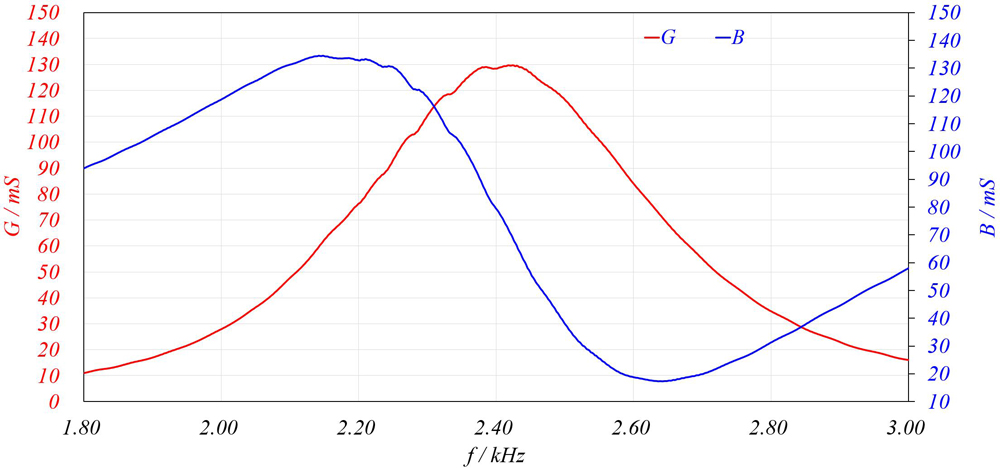

● Impedance @f _c：7.8Ω±30%
● Impedance Bandwidth：≥450 kHz
● TVR @f _c：≥194dB re 1 μPa•m/V
● OCVS @f _c： ≥-194dB re 1V/μPa

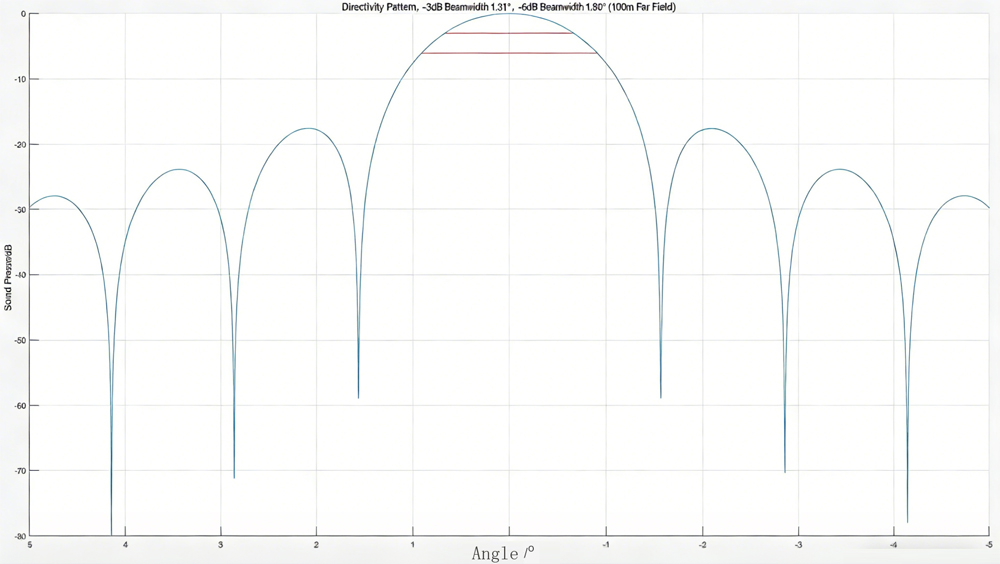

● Beam Patternθ-3dB：1.3°±0.2°
● Side Lobe to Main Lobe Ratio： ≤-15 dB
● Maximum Operating Depth：300m
● Interface Type: PCB terminal block
● Main Body Material: SS
● Weight：40 g
