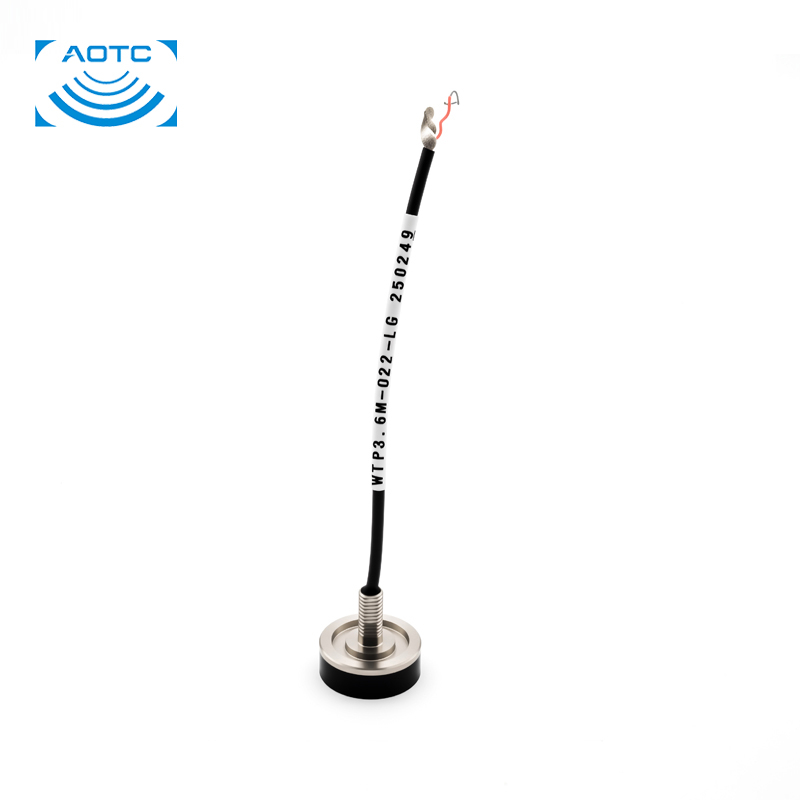

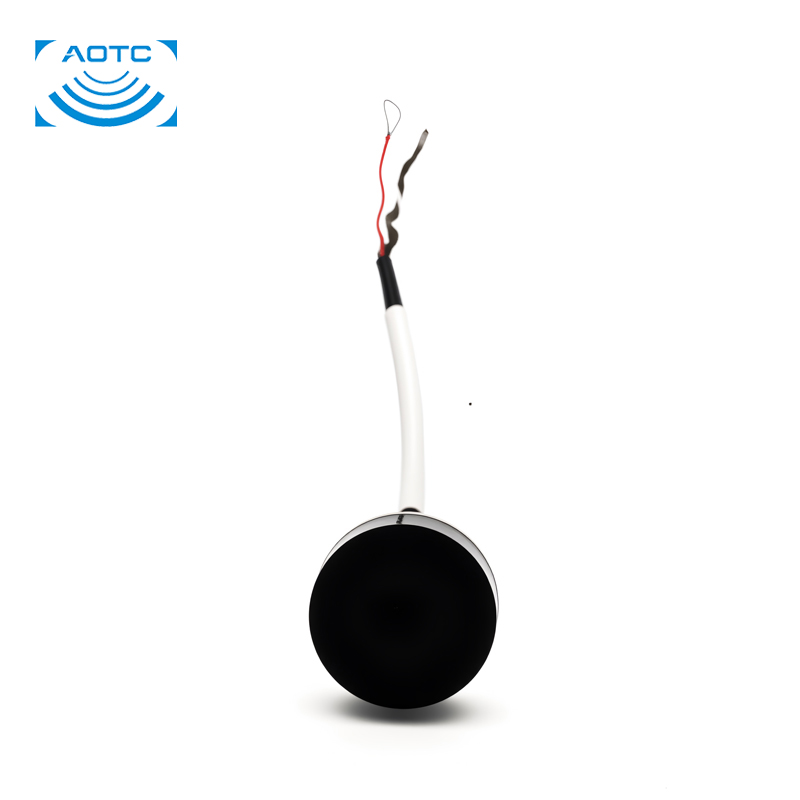

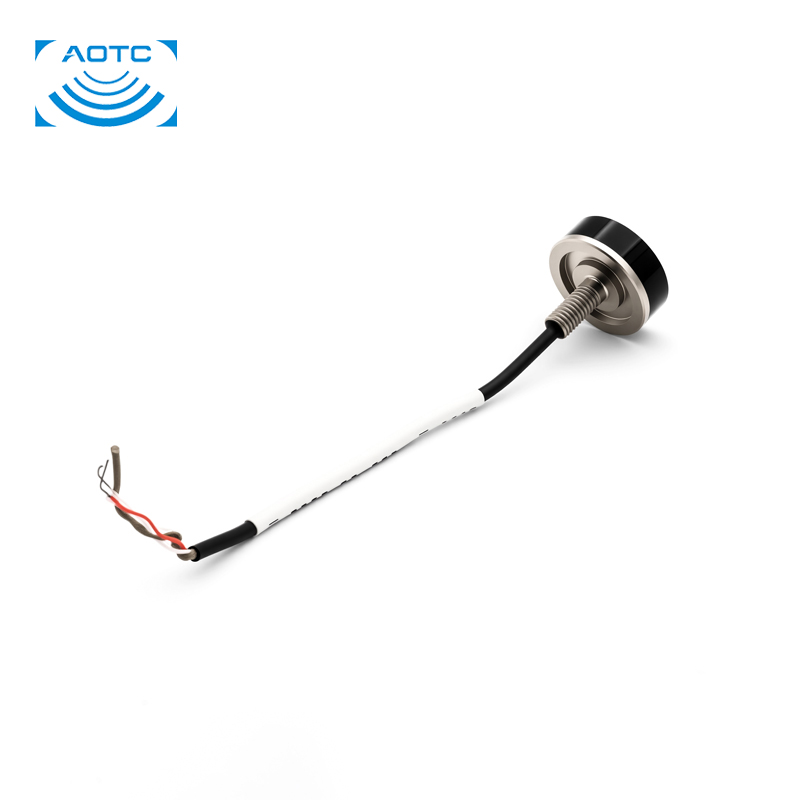

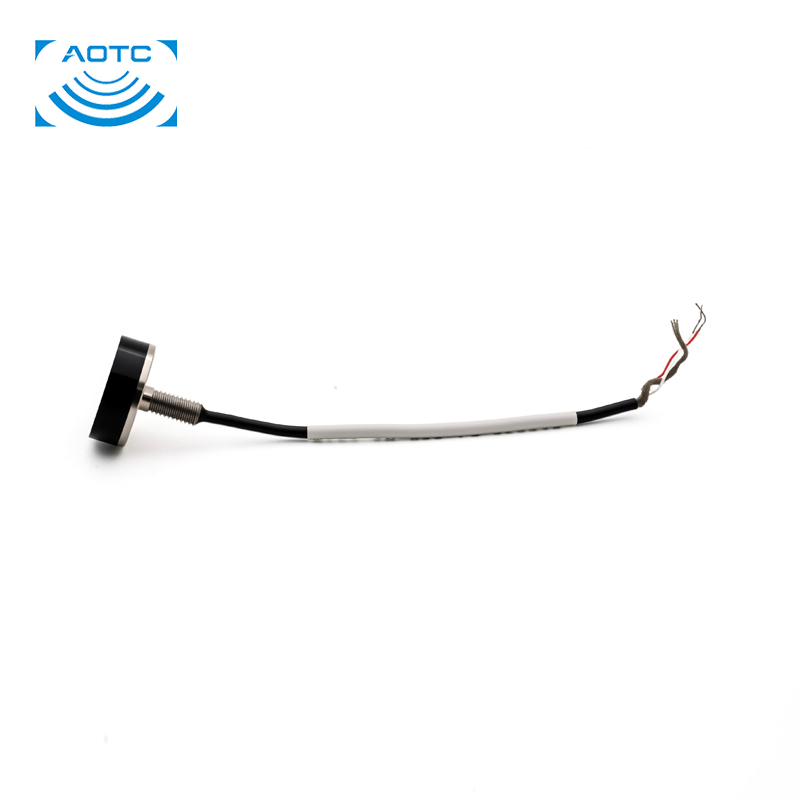

WTP3.6M-D22-LG Broadband Flat Piston Transducer



● Center Frequency f _c： 3.6 MHz
● Static Capacitance C₀： 6.5 nF

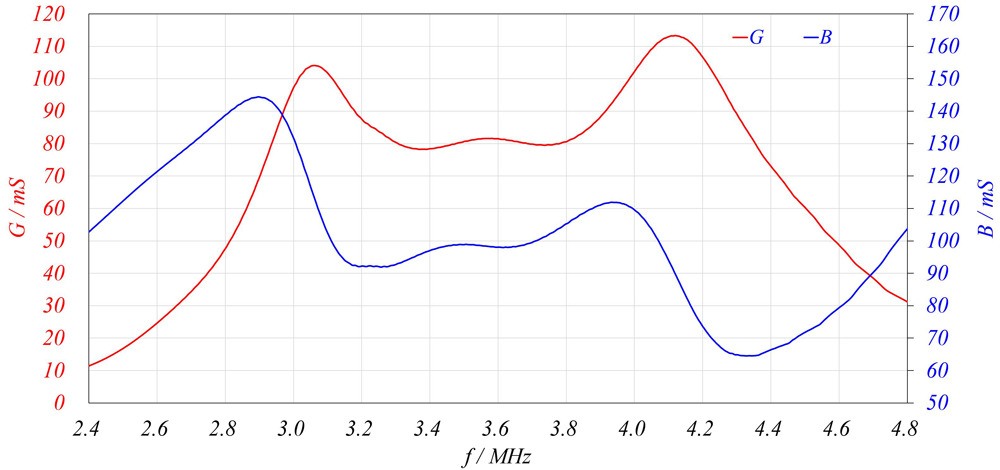

● Impedance @f _c： 13.5Ω±30%
● Impedance Bandwidth： ≥1.6 MHz
● TVR @f _c： ≥195dB re 1 μPa•m/V
● OCVS @f _c： ≥-201dB re 1V/μPa

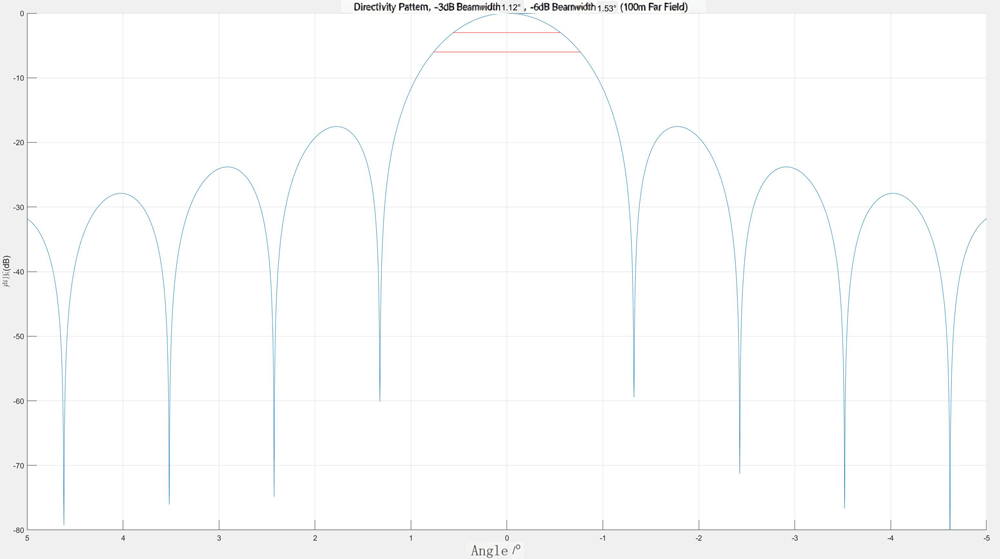

● Beam Patternθ-3dB： 1.1°±0.2°
● Side Lobe to Main Lobe Ratio： ≤-15 dB
● Maximum Operating Depth： 300m

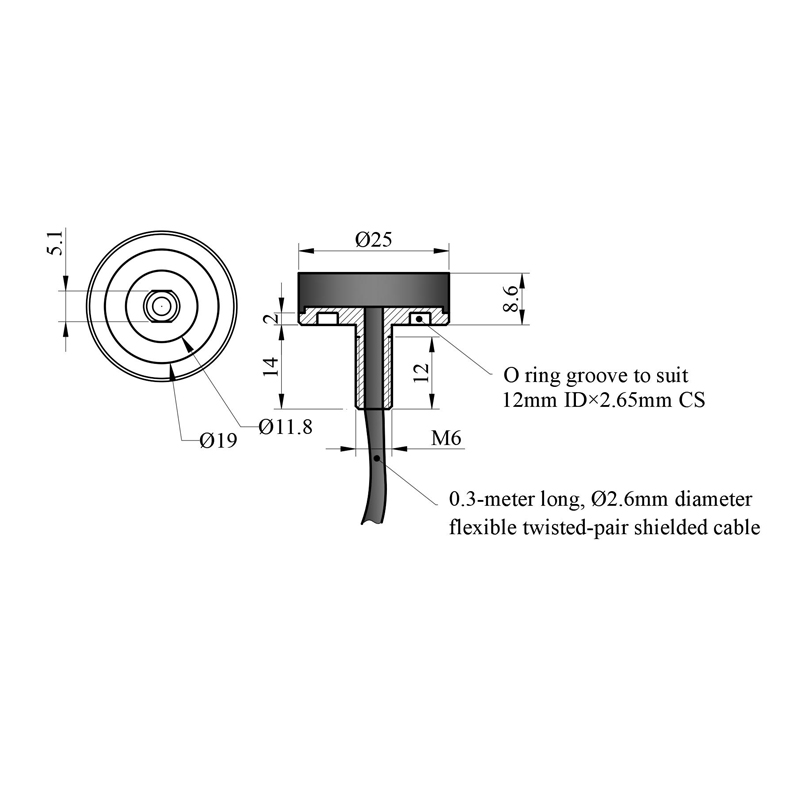

● Interface Typ： 30cmTwisted-pair shielded flexible cable
● Main Body Material： SS
● Weight ： 22 g
