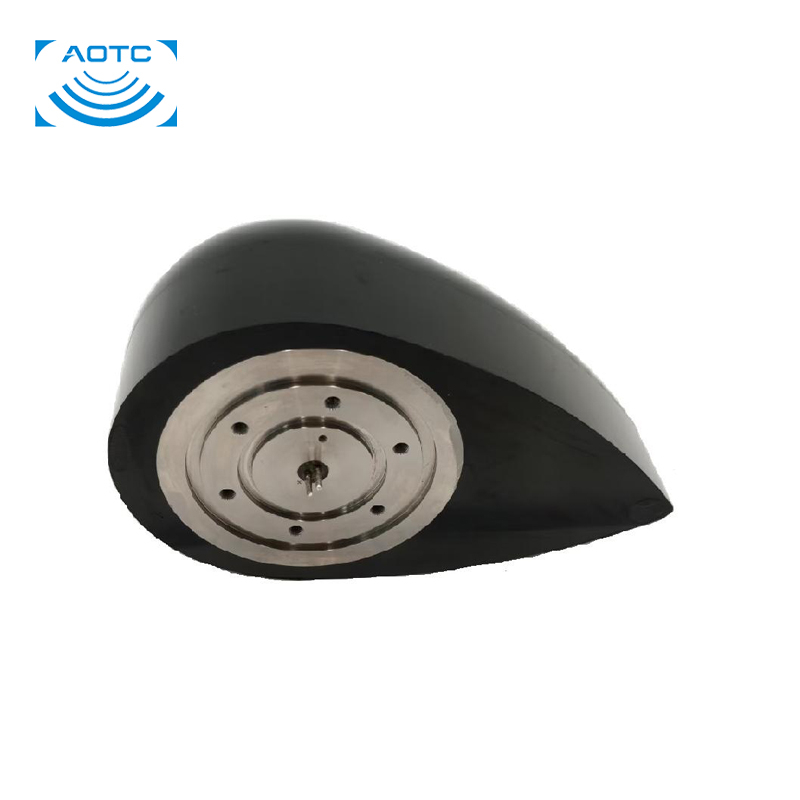

MBD816 Liquid-Filled Chamber Deep-Sea Transducer



● Resonant Frequency (fᵣ):：13.3 kHz
● Static Capacitance (C₀): 15 nF
● Recommended Frequency Range： 7~18kHz

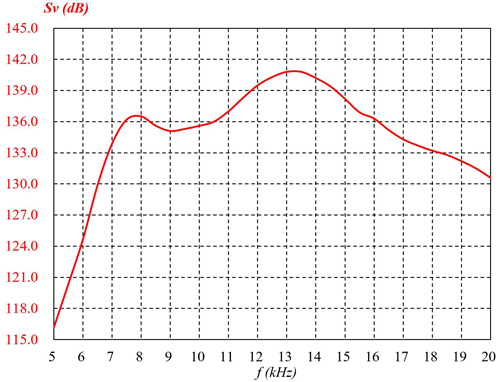

● TVR@fᵣ：140 dB re 1 μPa•m/V

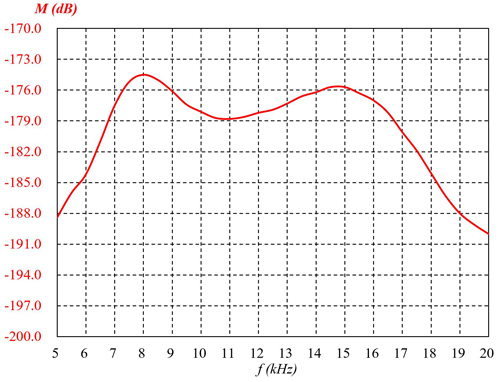

● OCVS@fᵣ：-178 dB re 1 V/μPa
● Source Level @fᵣ：195 dB re 1μPa•m
● Horizontal Beam pattern: Omnidirectional
● Vertical Beam pattern:Half-space
● Maximum Operating Depth：6000m
● Interface Type:glass-sealed insulator
● Main Body Material:Titanium Alloy
● Weight：2.3 kg
