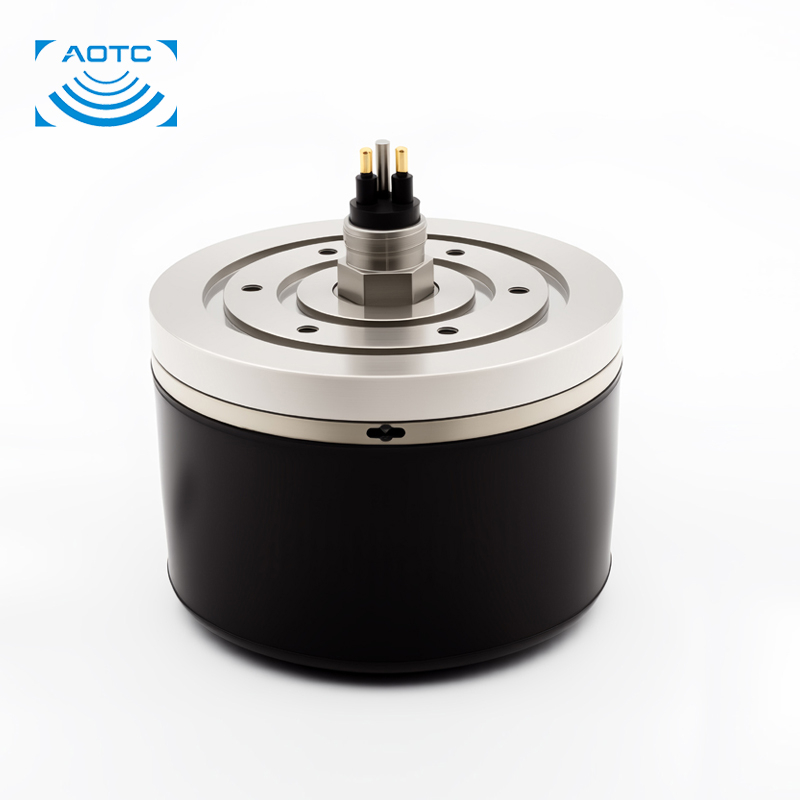

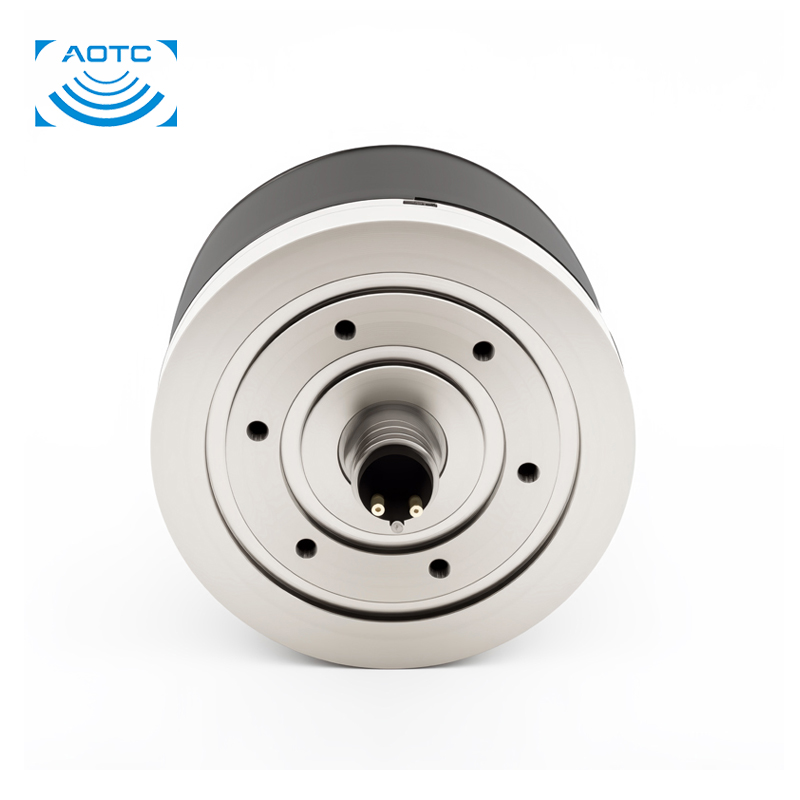

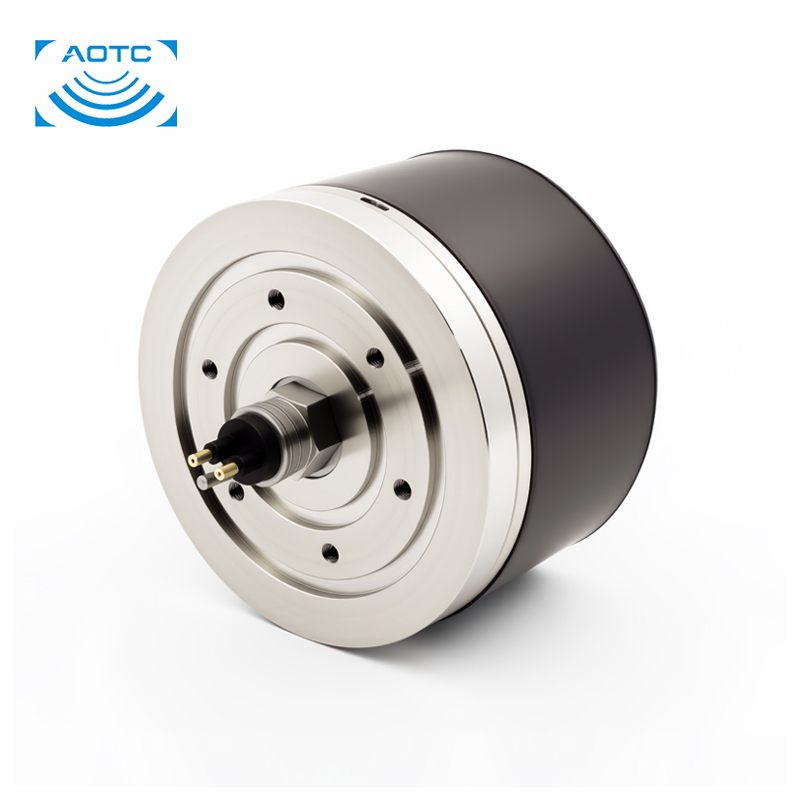

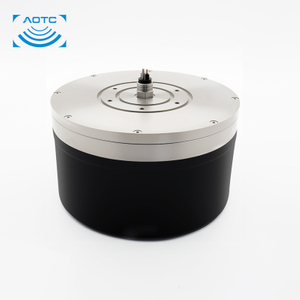

MBD714-C Liquid-Filled Chamber Deep-Sea Transducer

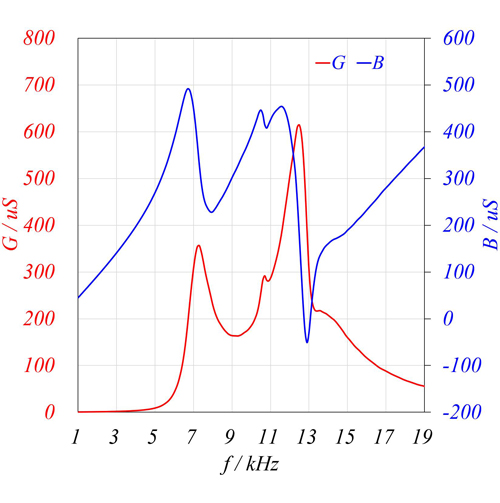

● Resonant Frequency (fᵣ): 12.5 kHz
● Static Capacitance (C₀): 7.0 nF
● Recommended Frequency Range: 7 ~ 16 kHz

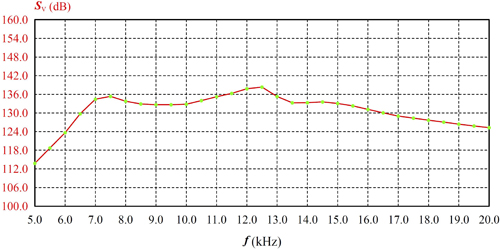

● TVR @ fᵣ: 137 dB re 1 μPa·m/V

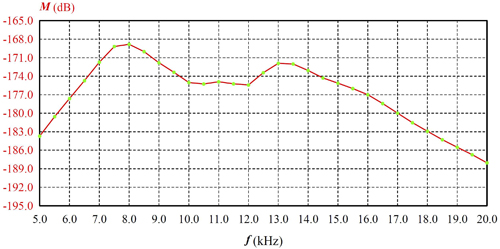

● OCVS @ fᵣ: -174 dB re 1 V/ μPa
● Source Level @fᵣ: 198 dB re 1 μPa·m
● Horizontal Beam pattern : Omnidirectional

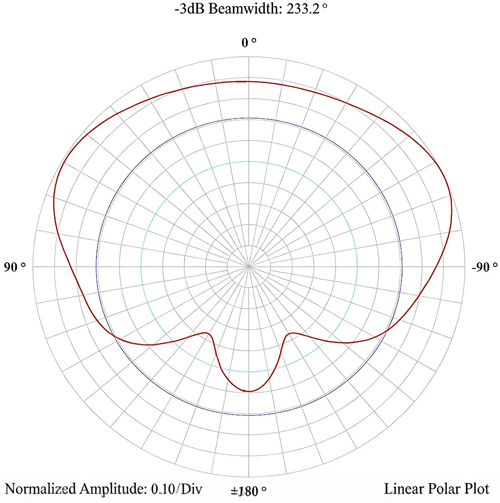

● Vertical Beam pattern: Half-space
● Maximum Operating Depth: 6,000 m
● Interface Type: MCBH2M-Ti
● Main Body Material: Titanium Alloy
● Weight: 1.75 kg
