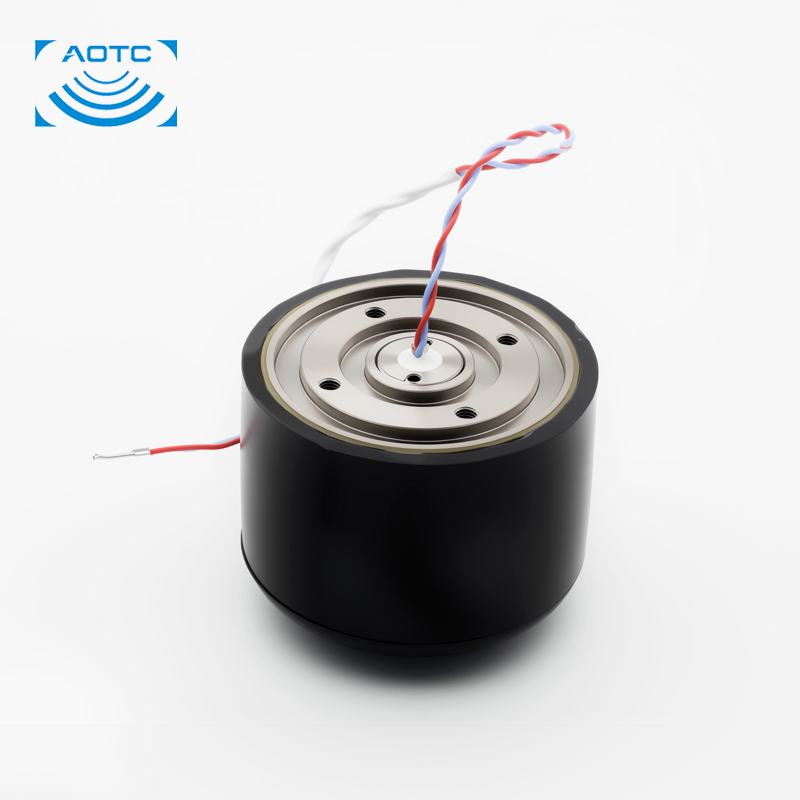

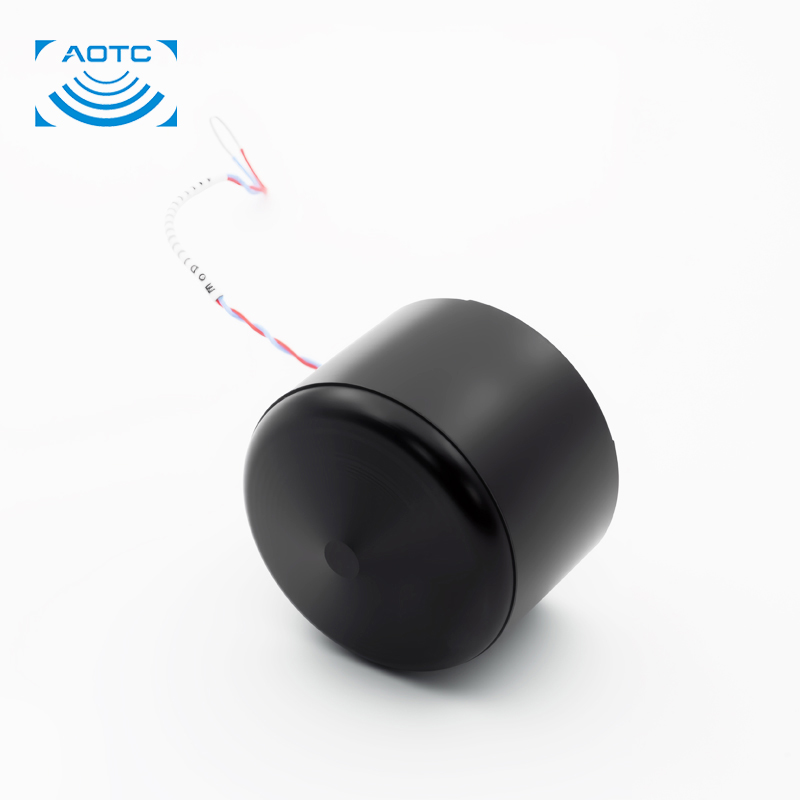

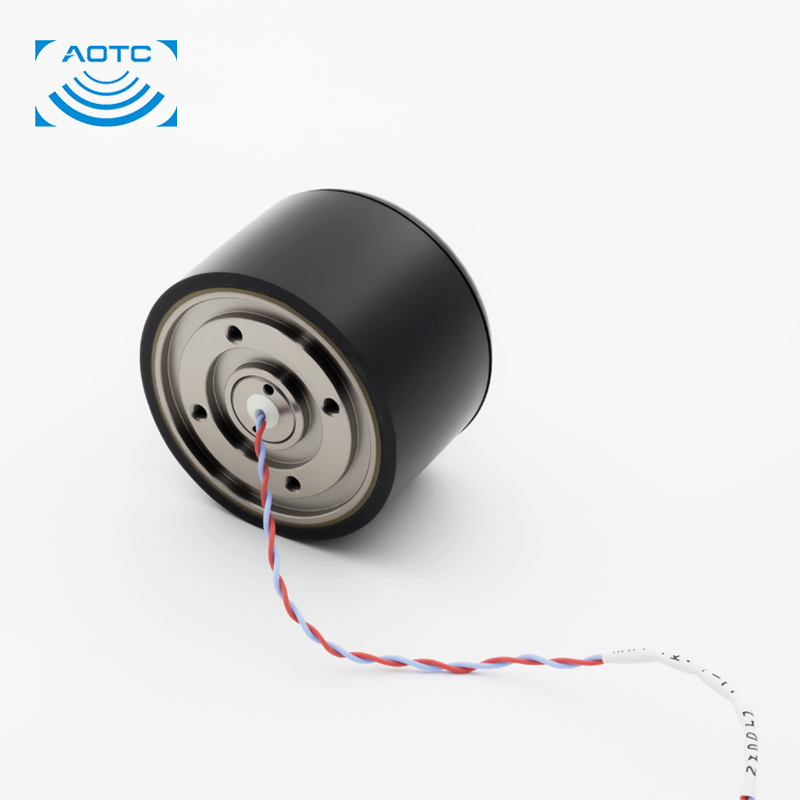

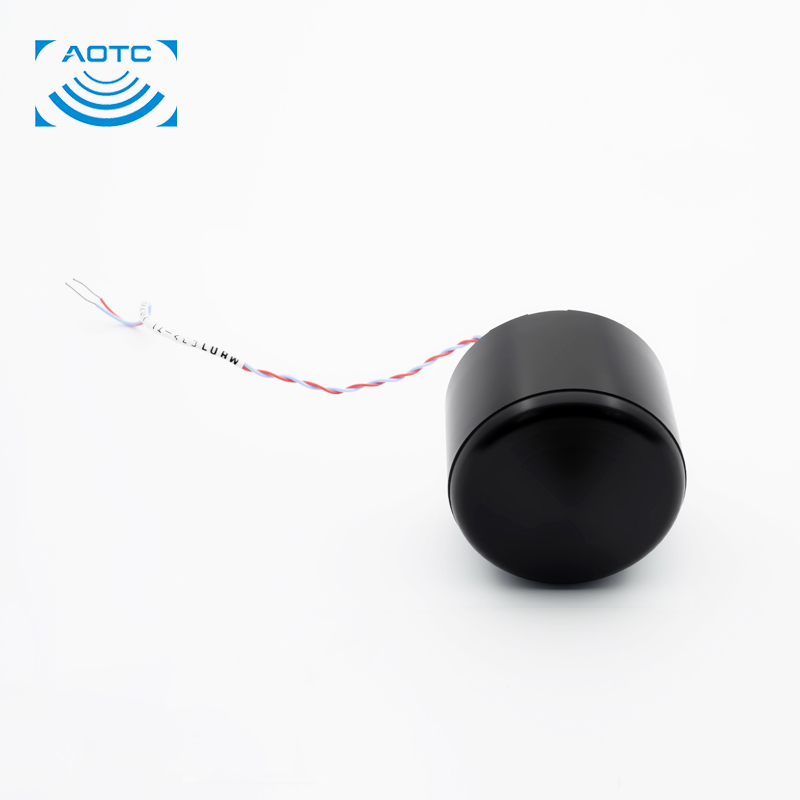

MBD1632 Liquid-Filled Chamber Deep-Sea Transducer

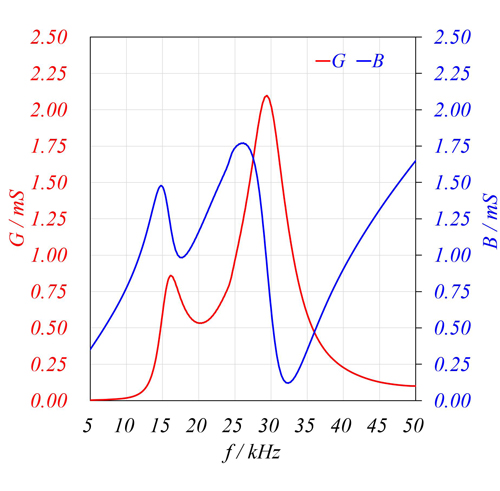

● Resonant Frequency (fᵣ): 29 kHz
● Static Capacitance (C₀): 10 nF
● Recommended Frequency Range: 15 ~ 35 kHz

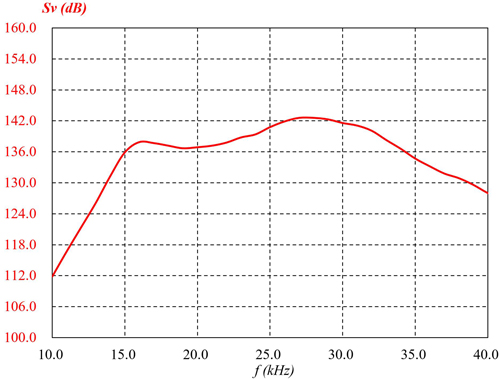

● TVR @fᵣ: 142 dB re 1 μPa·m/V

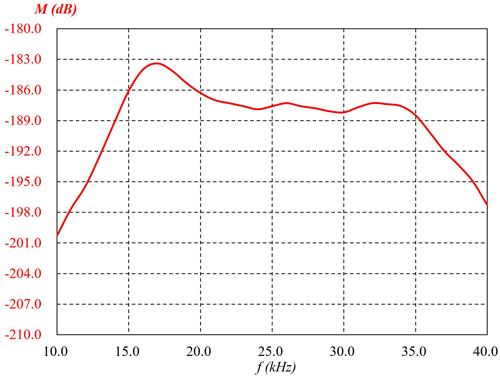

● OCVS @ fᵣ: -188 dB re 1 V/μPa
● Source Level @ fr: 193 dB re 1 μPa·m
● Horizontal Beam pattern: Omnidirectional

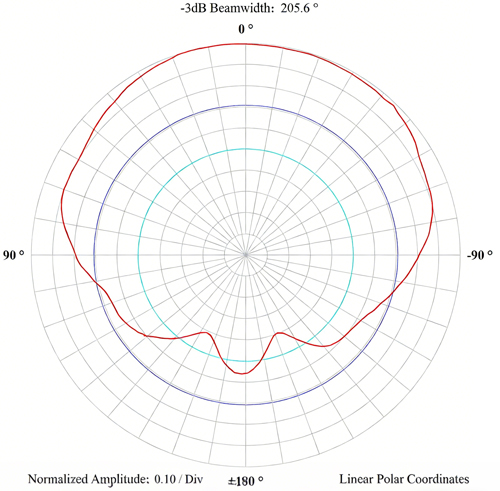

● Vertical Beam pattern: Half-space
● Maximum Operating Depth: 6,000 m
● Interface Type : Twisted Pair
● Main Body Material: Titanium Alloy
● Weight: 0.17 kg
