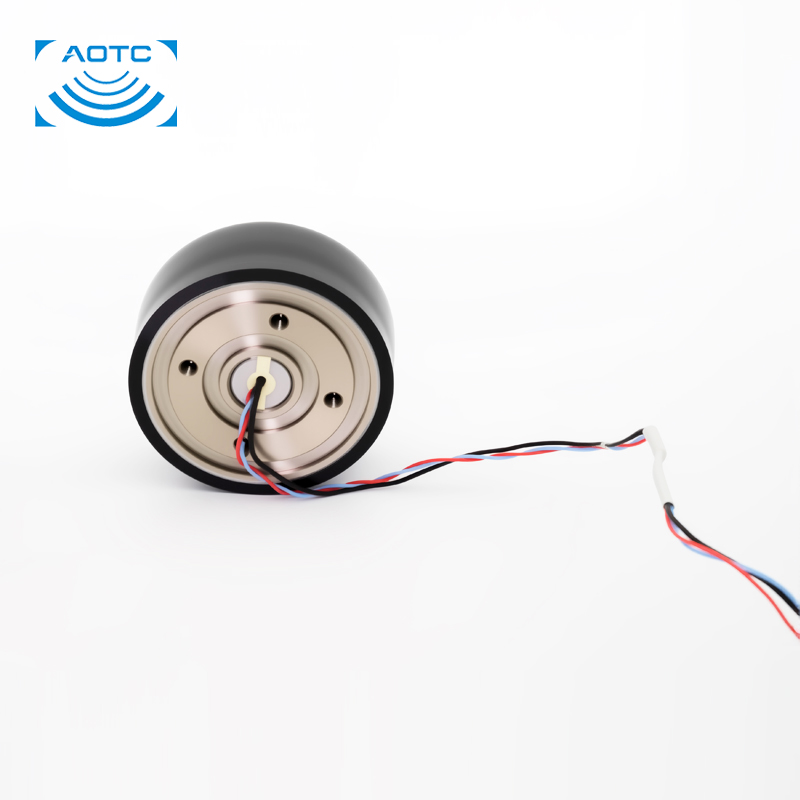

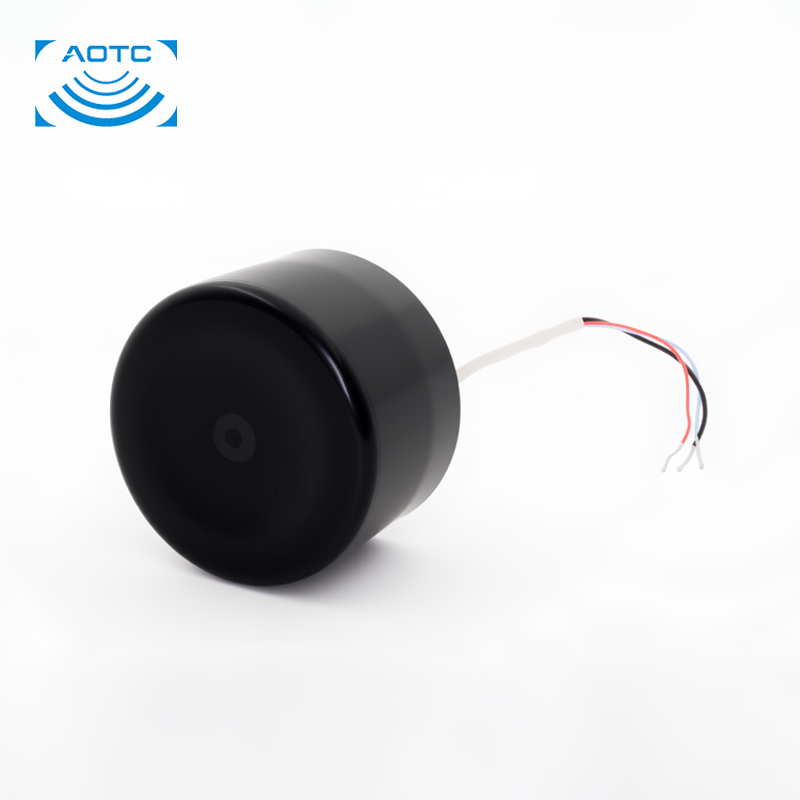

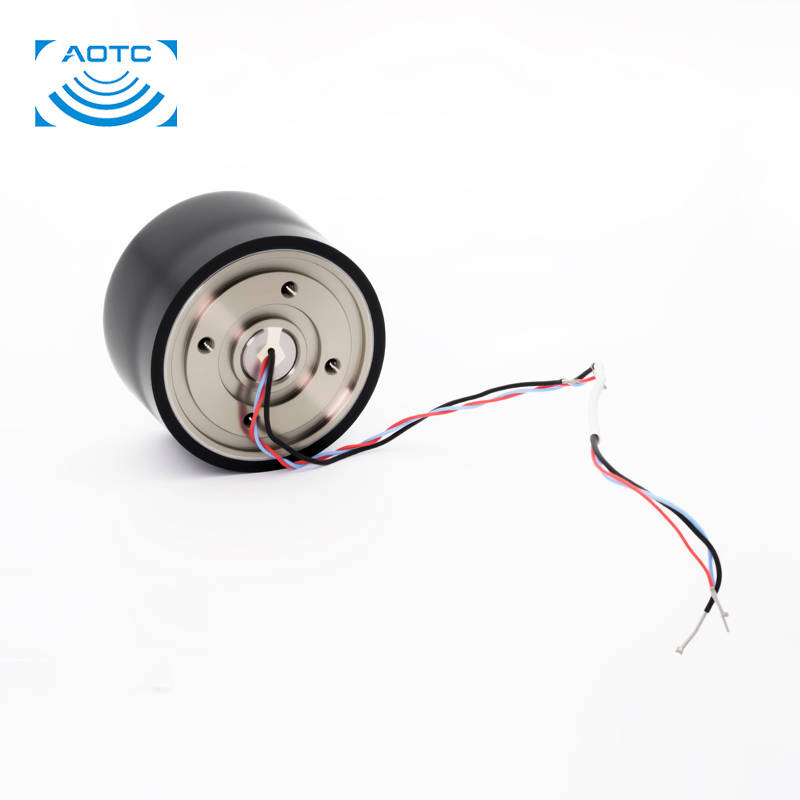

MBD1326 Liquid-Filled Chamber Deep-Sea Transducer

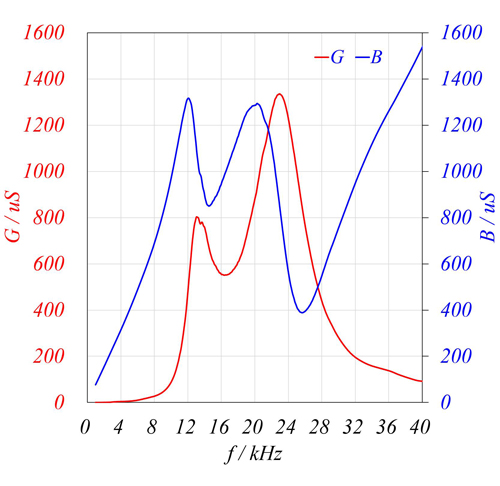

● Resonant Frequency (fᵣ): 23 kHz
● Static Capacitance (C₀): 12 nF
● Recommended Frequency Range: 13 ~ 26 kHz

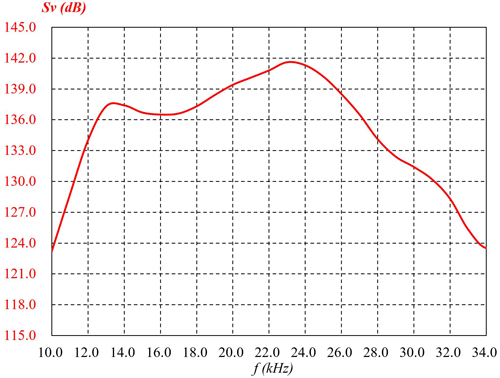

● TVR @ fᵣ: 141 dB re 1 μPa·m/V

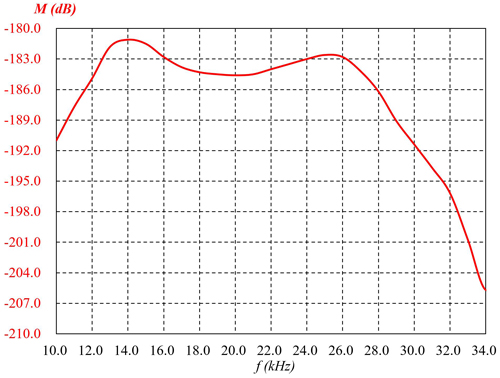

● OCVS @fᵣ: -184 dB re 1 V/μPa
● Source Level @ fᵣ: 197 dB re 1 μPa·m

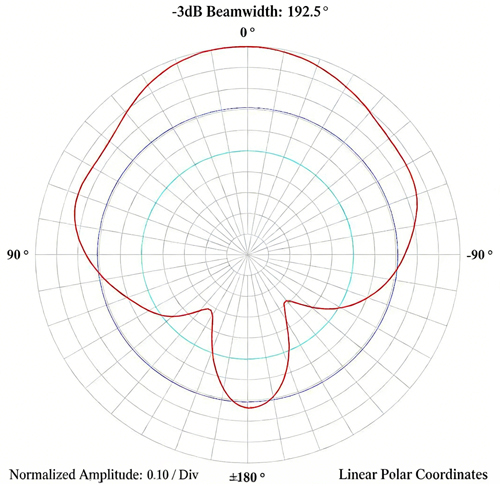

● Horizontal Beam pattern : Omnidirectional
● Vertical Beam pattern : Half-space
● Maximum Operating Depth: 6,000 m
● Interface Type : Twisted Pair
● Main Body Material: Stainless Steel
● Weight: 0.35 kg
