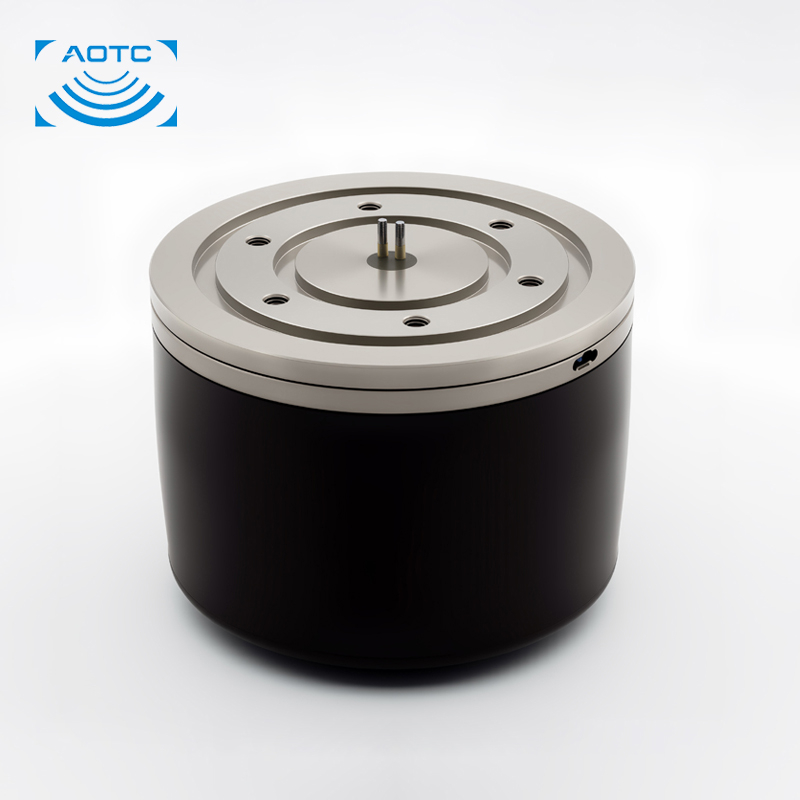

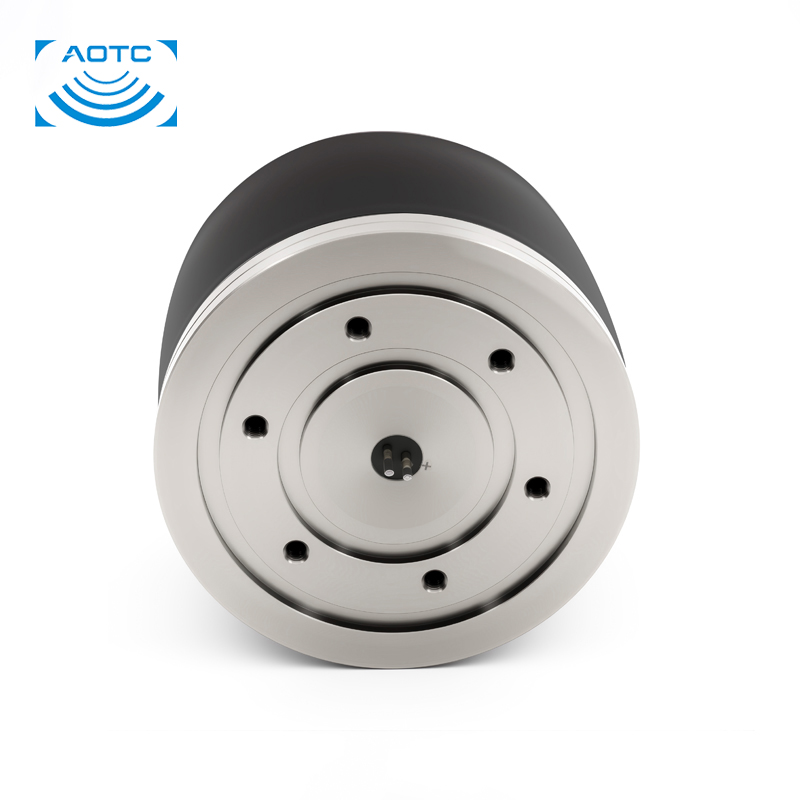

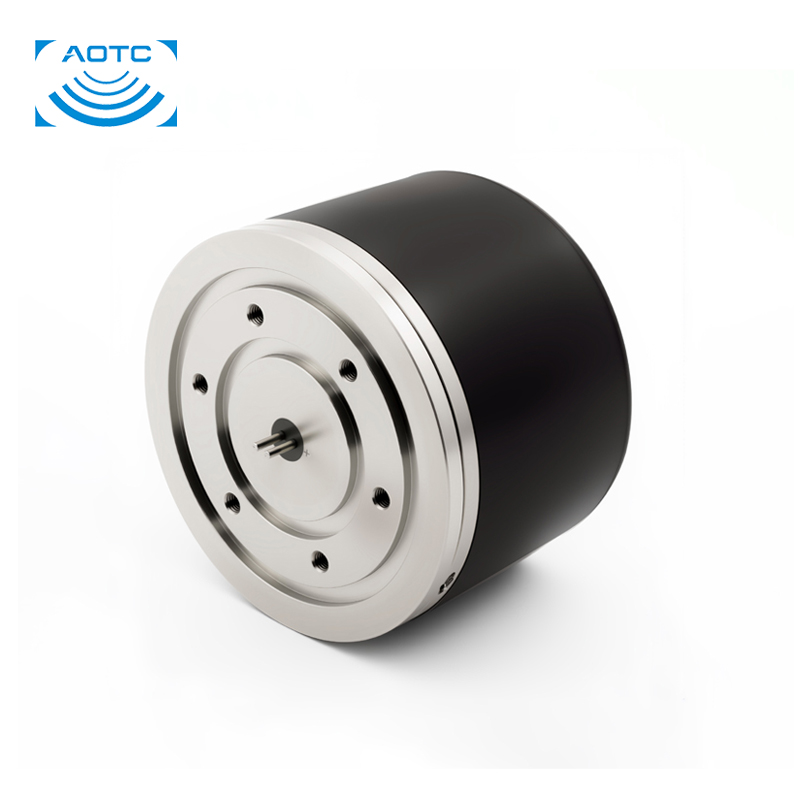

MBD816-D Liquid-Filled Chamber Deep-Sea Transducer



● Resonant Frequency (fᵣ): 13.4 kHz

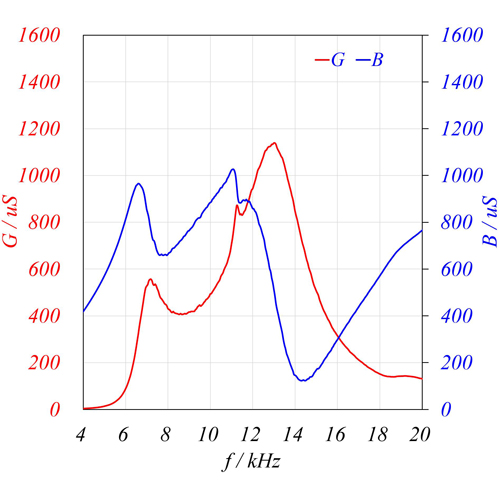

● Static Capacitance (C₀): 15 nF
● Recommended Frequency Range: 7 ~ 18 kHz

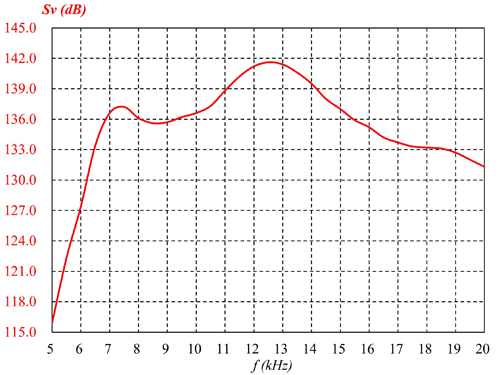

● TVR @fᵣ: 141 dB re 1 μPa·m/V

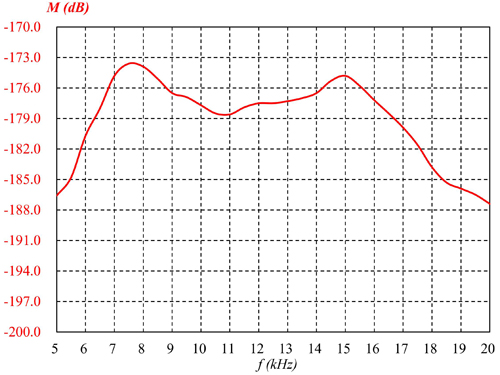

● OCVS @ fᵣ: -178 dB re 1 V/μPa
● Source Level @ fr: 195 dB re 1 μPa·m

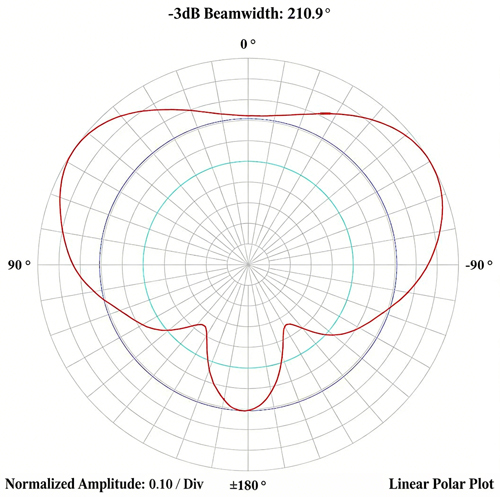

● Horizontal Beam pattern: Omnidirectional
● Vertical Beam pattern : Half-space
● Maximum Operating Depth: 6,000 m
● Interface Type : Glass Insulator
● Main Body Material: Titanium Alloy
● Weight: 1.5 kg
