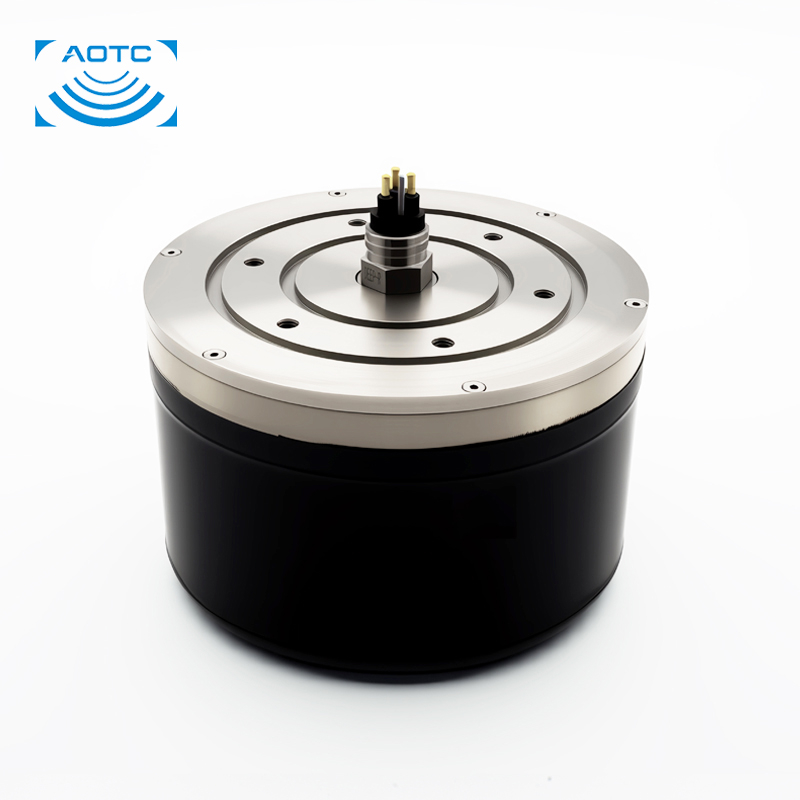

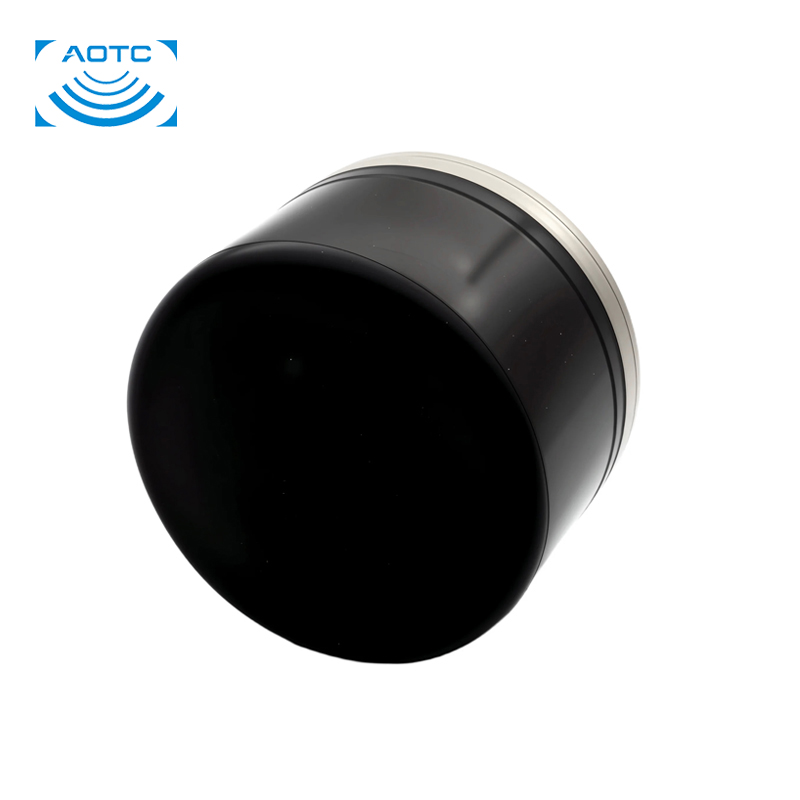

MBD510-C2-Ti Liquid-Filled Chamber Deep-Sea Transducer



● Resonant Frequency (fᵣ): 5.3 kHz
● Static Capacitance (C₀): 17.6 nF
● Recommended Frequency Range: 5–11 kHz

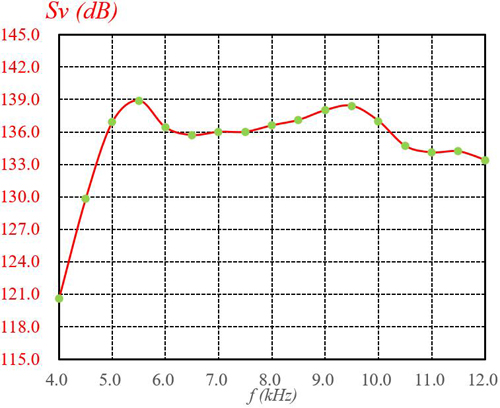

● TVR @ fᵣ: 138 dB re 1 μPa•m/V

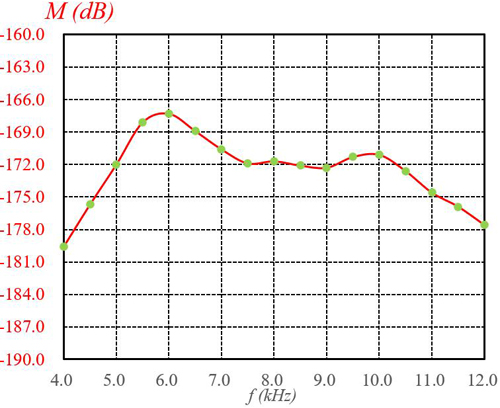

● OCVS @ fᵣ: -170 dB re 1 V/μPa
● Source Level @ fᵣ: 199 dB re 1 μPa•m
● Horizontal Beam pattern: Omnidirectional

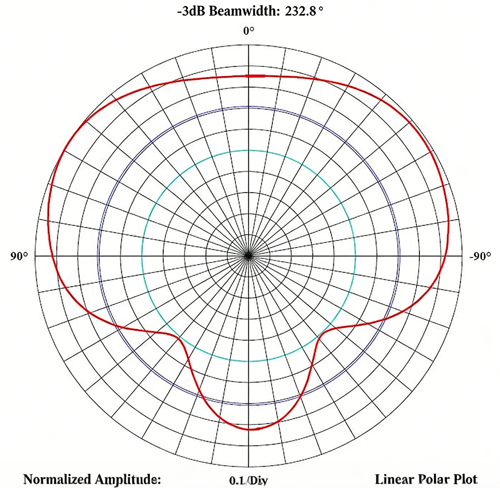

● Vertical Beam pattern: Hemispherical (or Half-space)
● Maximum Operating Depth: 6,000 m
● Interface Type: MCBH2M
● Main Body Material: Titanium Alloy
● Weight: 4.3 kg
