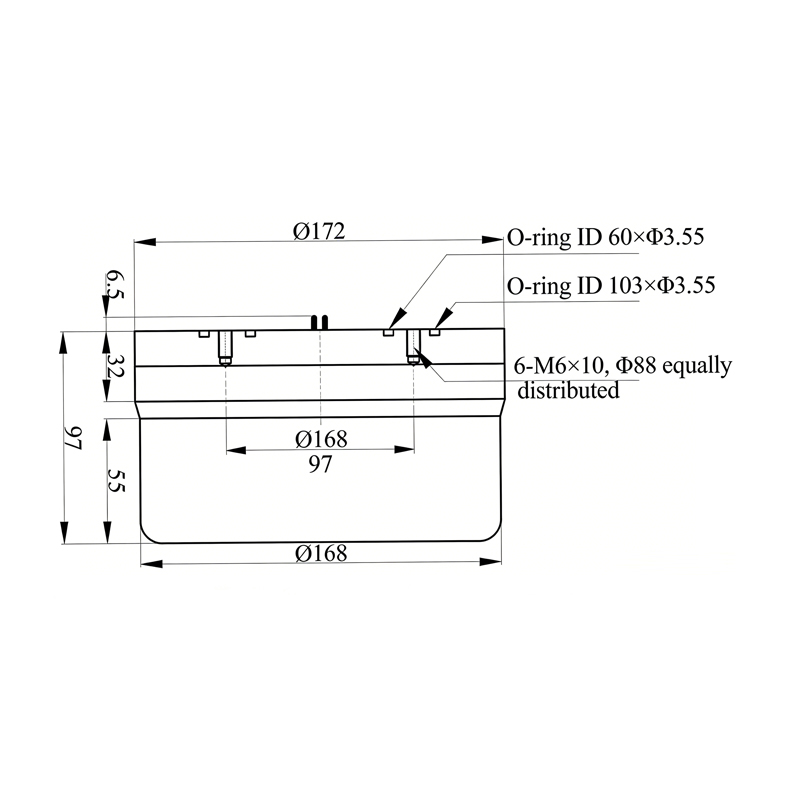

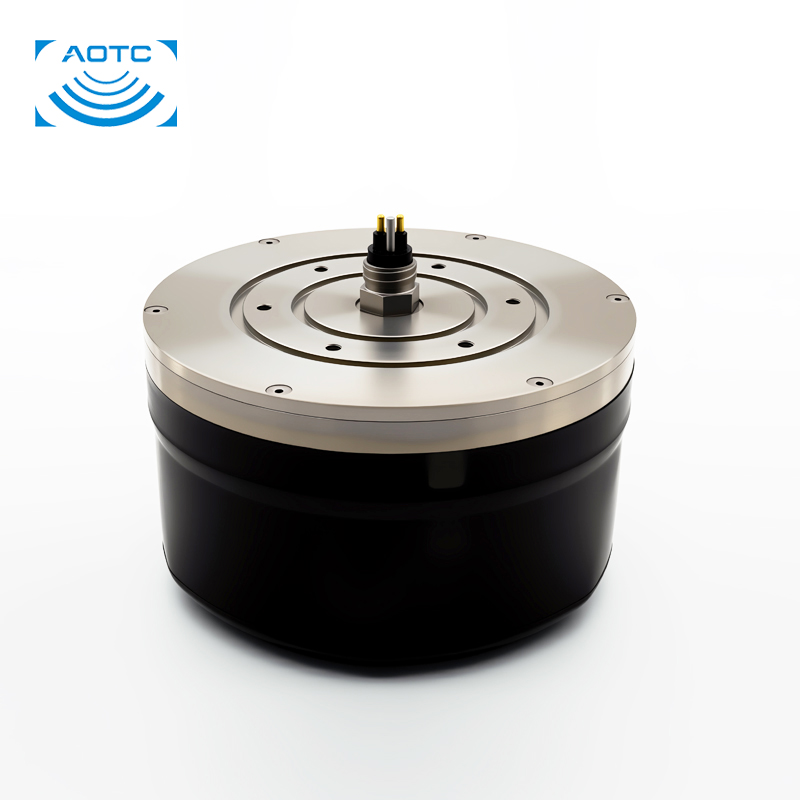

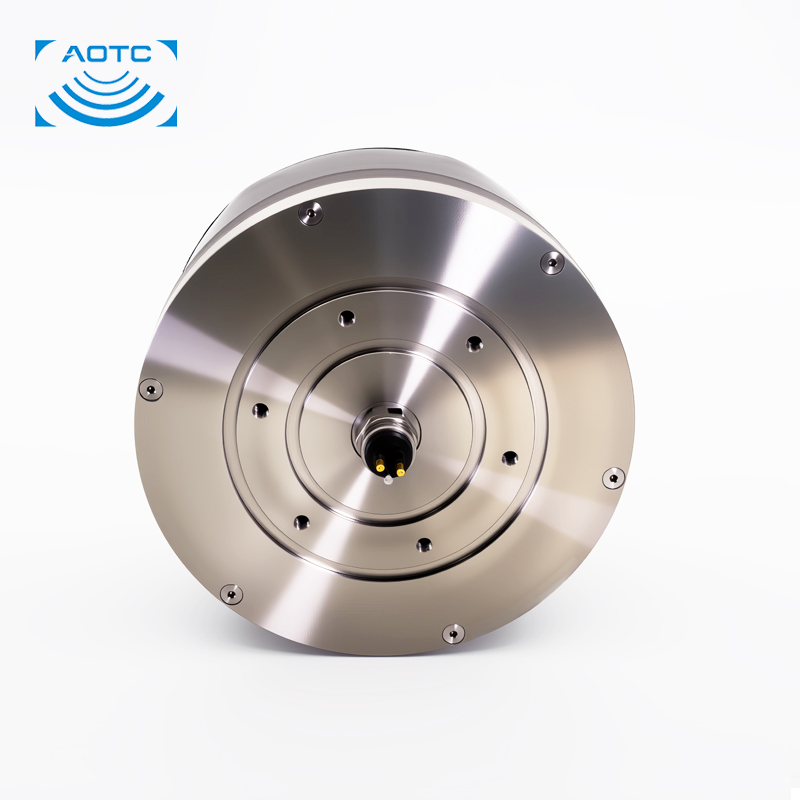

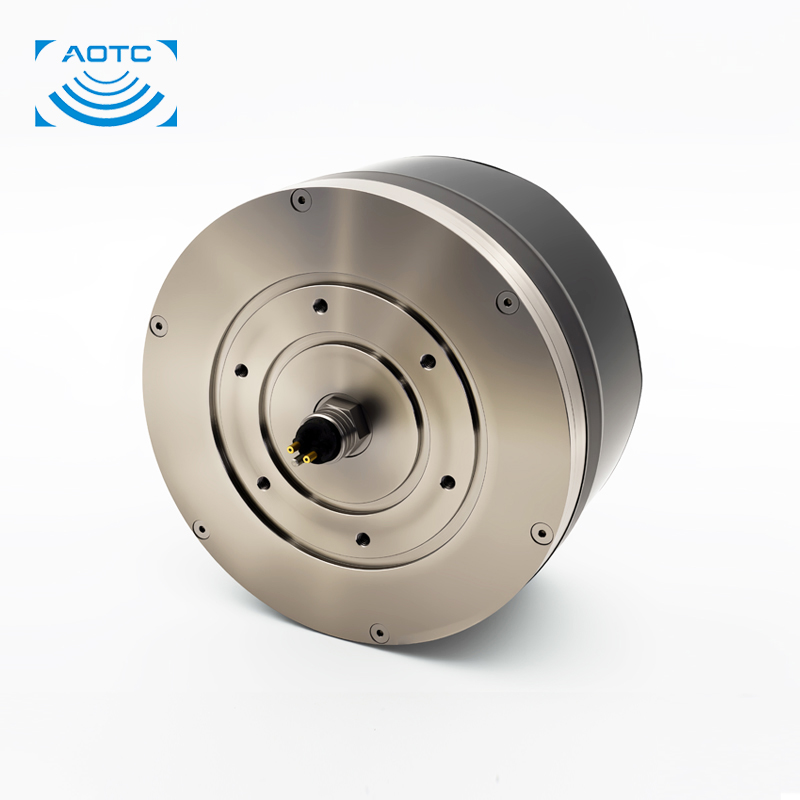

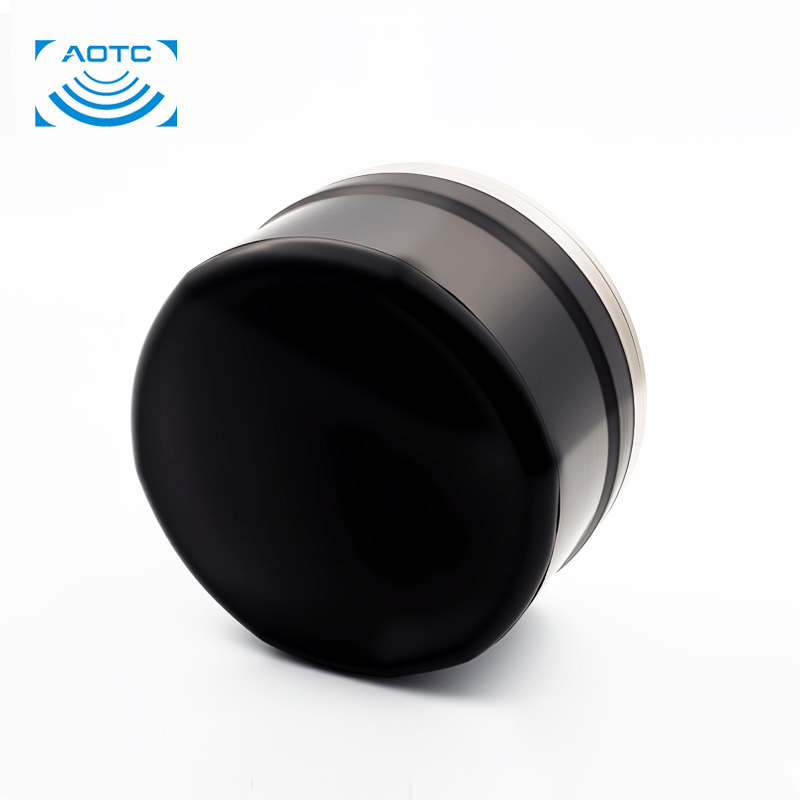

MBD4-8 Liquid-Filled Chamber Deep-Sea Transducer

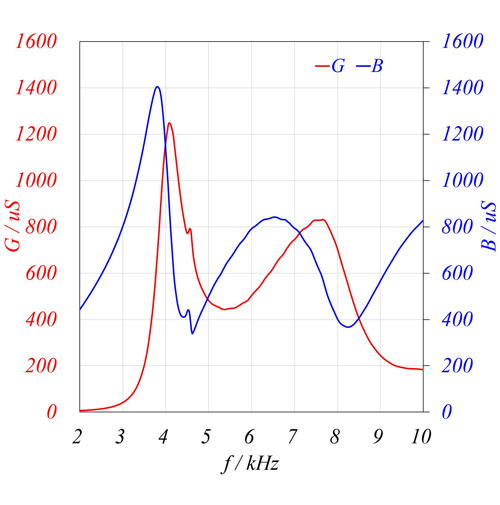

● Resonant Frequency (fᵣ): 4.3 kHz
● Static Capacitance (C₀): 32 nF
● Recommended Frequency Range: 4.0 ~ 8.0 kHz

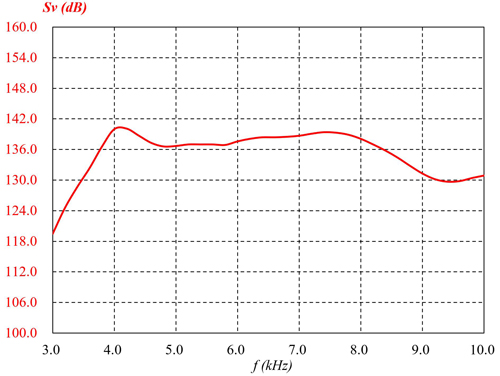

● TVR @ fᵣ: 140 dB re 1 μPa•m/V

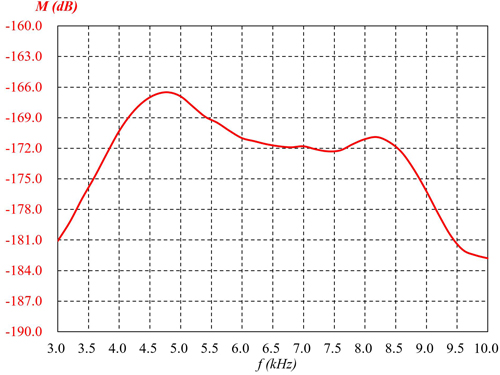

● OCVS @ fᵣ: -167 dB re 1 V/μPa
● Source Level @ fᵣ: 199 dB re 1 μPa•m

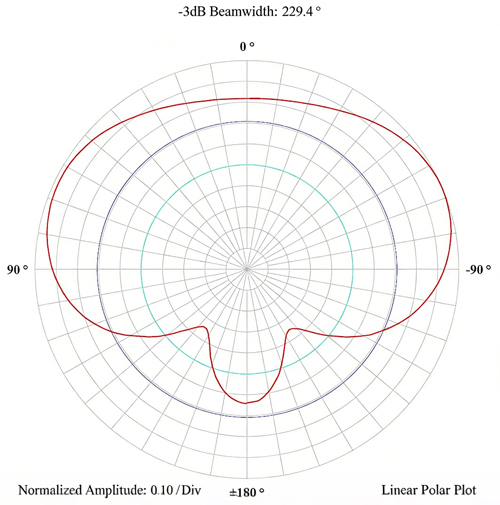

● Horizontal Beam pattern: Omnidirectional
● Vertical Beam pattern: Half-space
● Maximum Operating Depth: 6,000 m
● Interface Type: 2-core glass-sealed insulator
● Main Body Material: Titanium Alloy
● Weight: 6.2 kg
