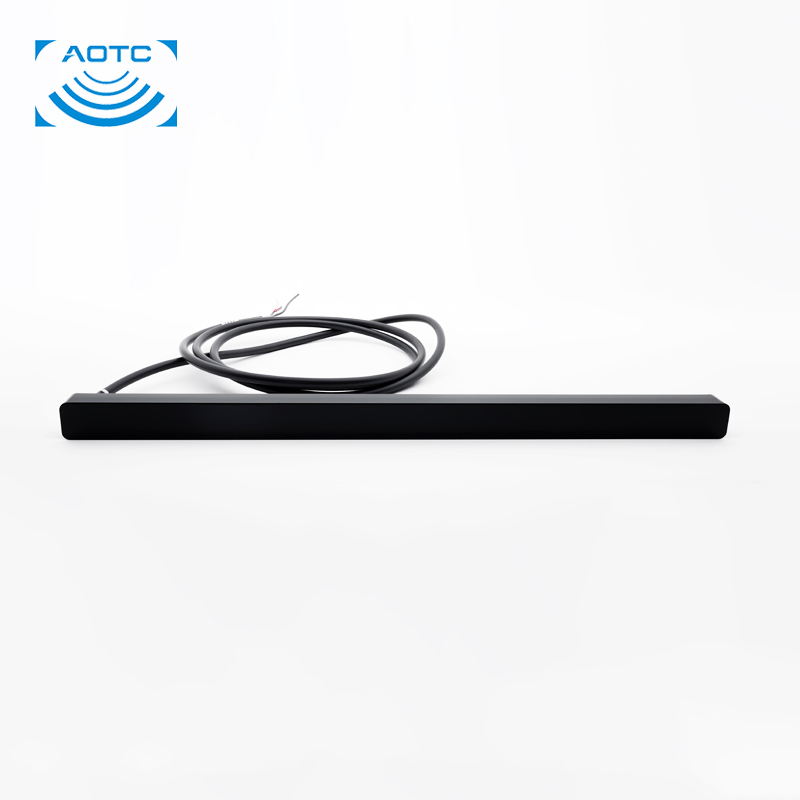

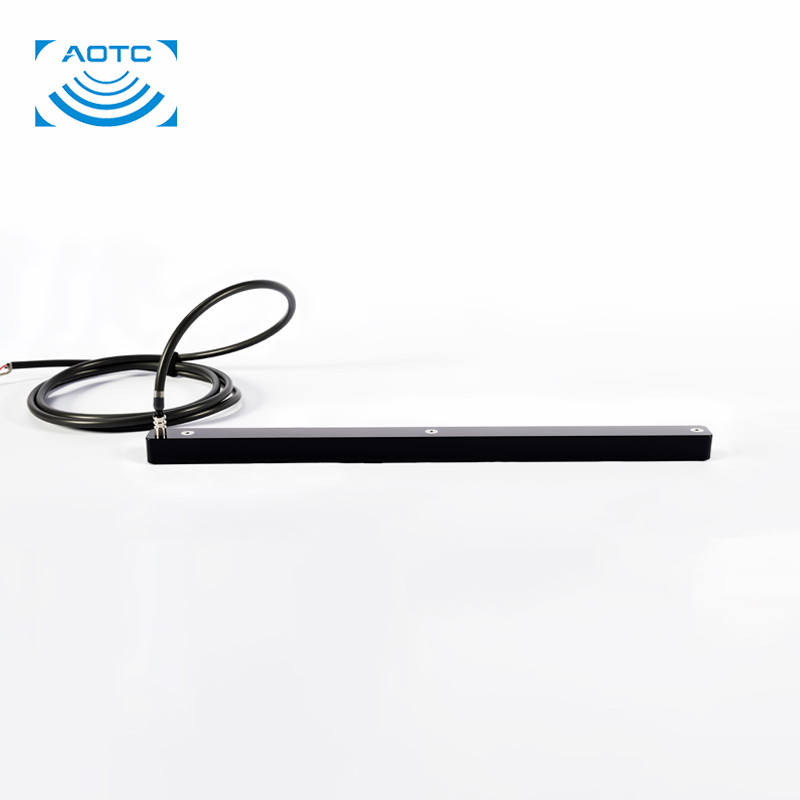

TS40-900-A50 Side Scan Transducer

AOTC’s Model TS40-900-A50 transducer is a combined transmit/receive, dual-frequency linear array transducer.

● Parameters:Short Array / Long Array
● Number of Channels：2
● Center Frequency：900kHz
● Static Capacitance：1.6nF / 3.1nF

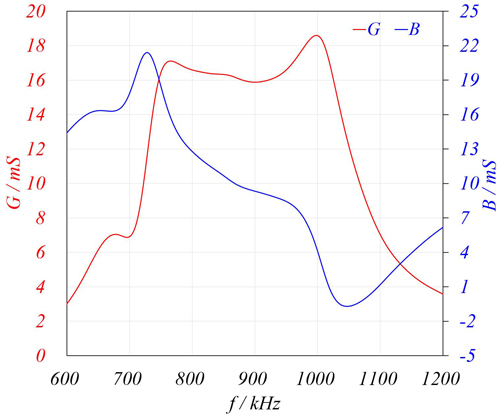

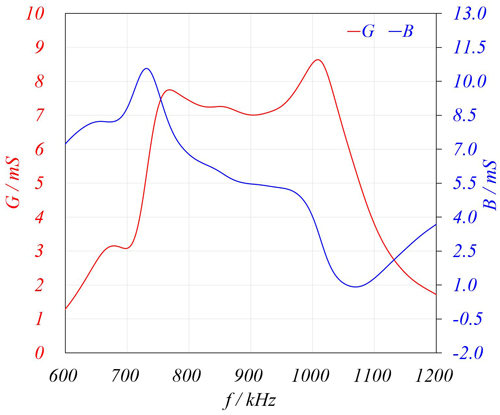

● Impedance Bandwidth：350kHz
● OCVS：≥-200dB
● TVR of Array Element：≥187dB / ≥191dB
● Vertical Beamwidth (-3 dB):50°
● Horizontal Beamwidth (-3 dB):0.40° / 0.19°
● Interface Type:2-meter shielded cable
● Weight:0.5kg
● Main Body Material:Aluminum alloy
● Maximum Operating Depth:3000m

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specifications (Nominal)

Parameters	Short Array	Long Array
Number of Channels	2
Center Frequency	900kHz	900kHz
Static Capacitance	1.6nF	3.1nF
Impedance Bandwidth	350kHz	350kHz
OCVS	≥-200dB	≥-200dB
TVR of Array Element	≥187dB	≥191dB
Vertical Beamwidth (-3 dB)	50°	50°
Horizontal Beamwidth (-3 dB)	0.40°	0.19°
Interface Type	2-meter shielded cable
Weight	0.5kg
Main Body Material	Aluminum alloy
Maximum Operating Depth	3000m
