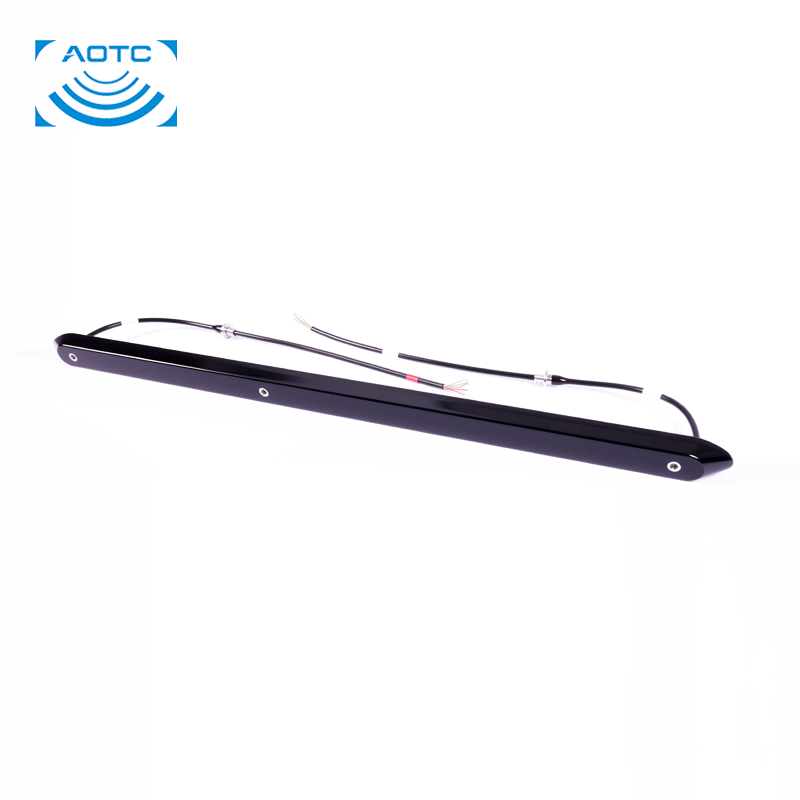

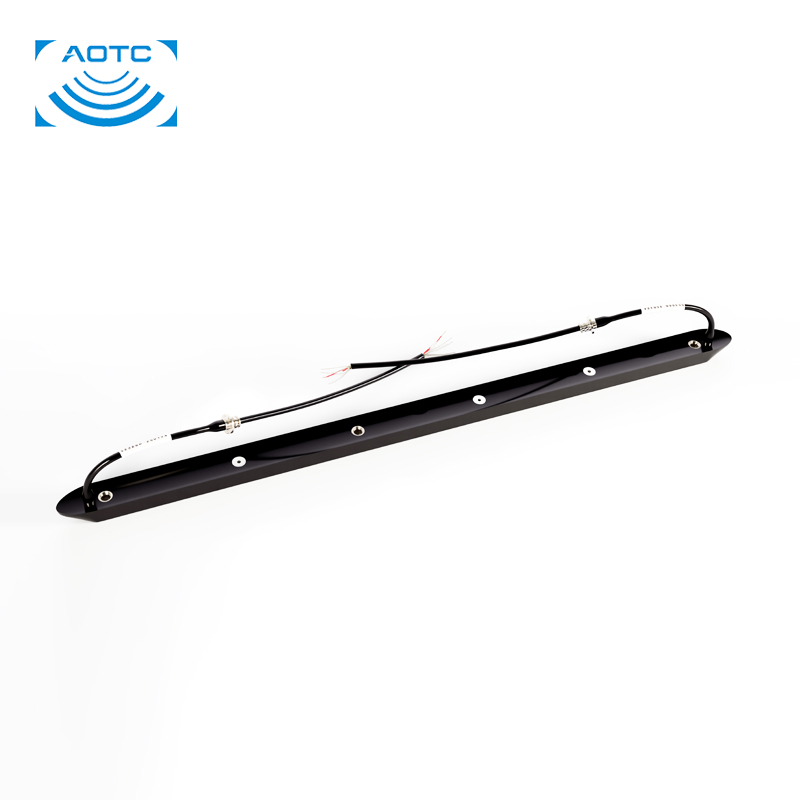

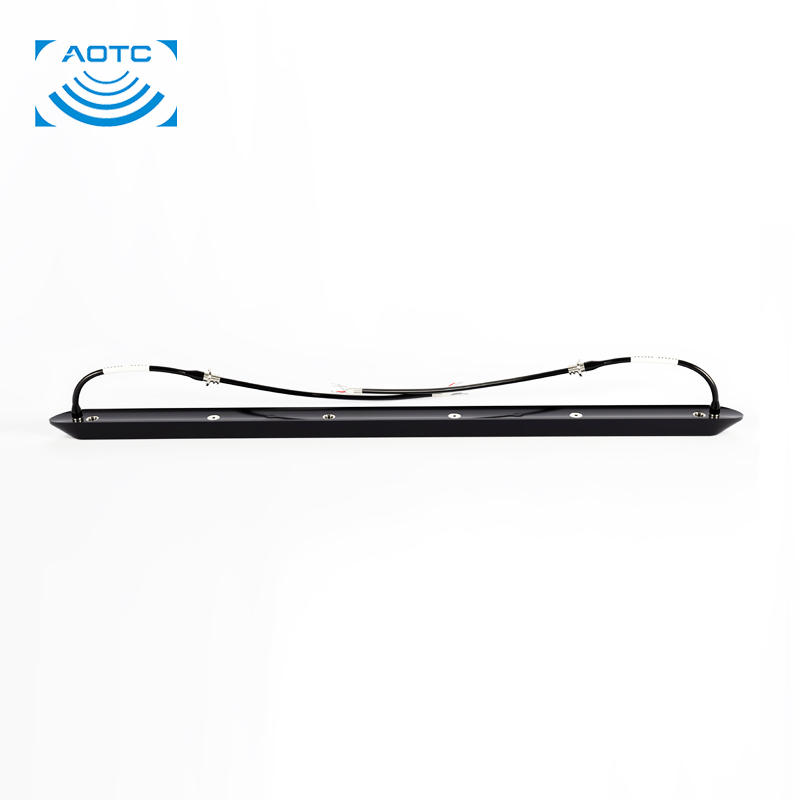

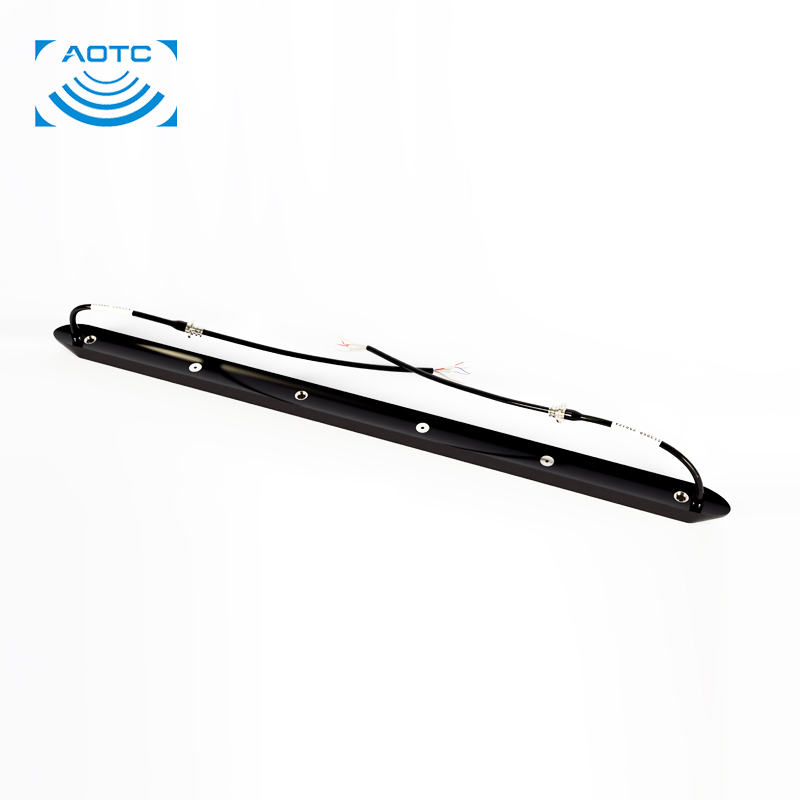

SS3060 Side Scan Transducer

AOTC’s Model SS3060 Side-Scan Sonar Transducer is a co-located transmitting-receiving dual-frequency linear array transducer.

● Parameters: 300kHz / 600kHz
● Number of Channels:2
● Central Frequency:300kHz / 300kHz
● Static capacitance:Array Element A:2.2nF Array Element B:3.6nF
● Array Element A:2.2nF Array Element B:3.4nF
● Operating Frequency Band:250~350kHz / 500kHz-700kHz
● OCVS:≥-193dB / ≥-200dB
● TRV:Array Element A≥179dB Array Element B≥183dB
● Array Element A≥187dB Array Element B≥191dB
● Vertical Beamwidth (-3 dB):50°
● Interface:Two 0.5-meter shielded cables
● Weight:1.8kg
● Main material:Aluminum alloy
● Maximum Operating Depth:500m

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specifications (Nominal)

Parameters	300kHz Transducer	600kHz Transducer
Number of Channels	2	2
Central Frequency	300kHz	600kHz
Static capacitance	Array ElementA:2.2nF Array ElementB:3.6nF	Array ElementA:2.2nF Array ElementB:3.4nF
Operating Frequency Band	250~350kHz	500kHz-700kHz
OCVS	≥-193dB	≥-200dB
TRV	Array Element A≥179dB Array Element B≥183dB	Array Element A≥187dB Array Element B≥191dB
Vertical Beamwidth (-3 dB)	50°	50°
Interface	Two 0.5-meter shielded cables
Weight	1.8kg
Main material	Aluminum alloy
Maximum Operating Depth	500m
