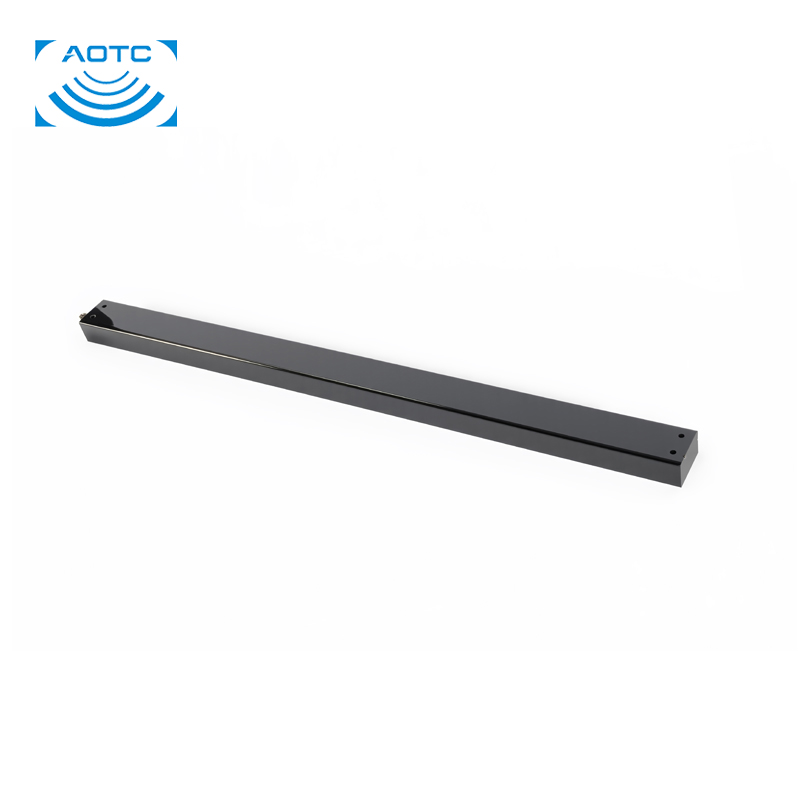

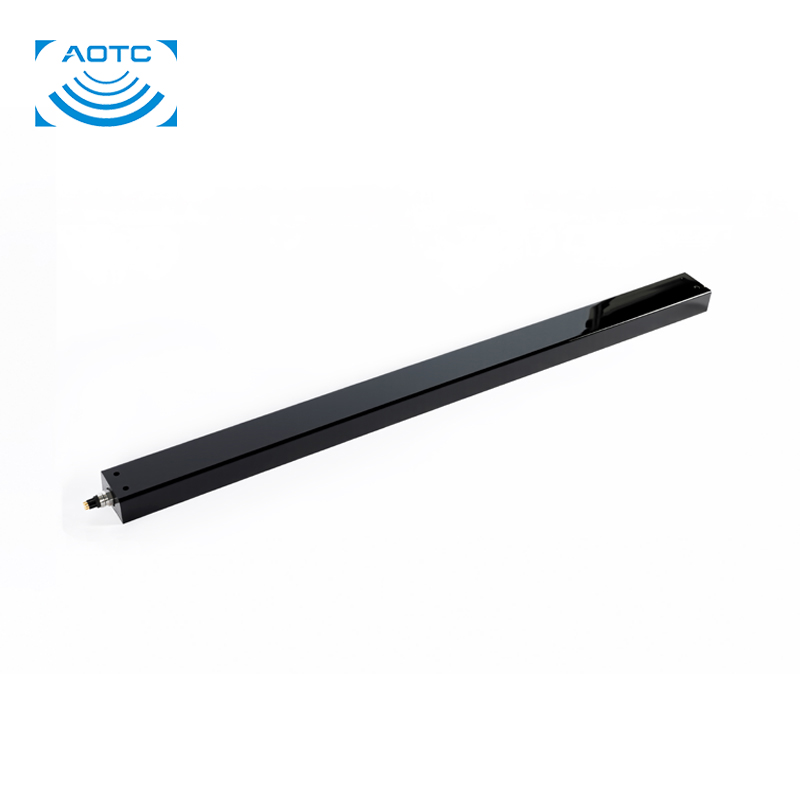

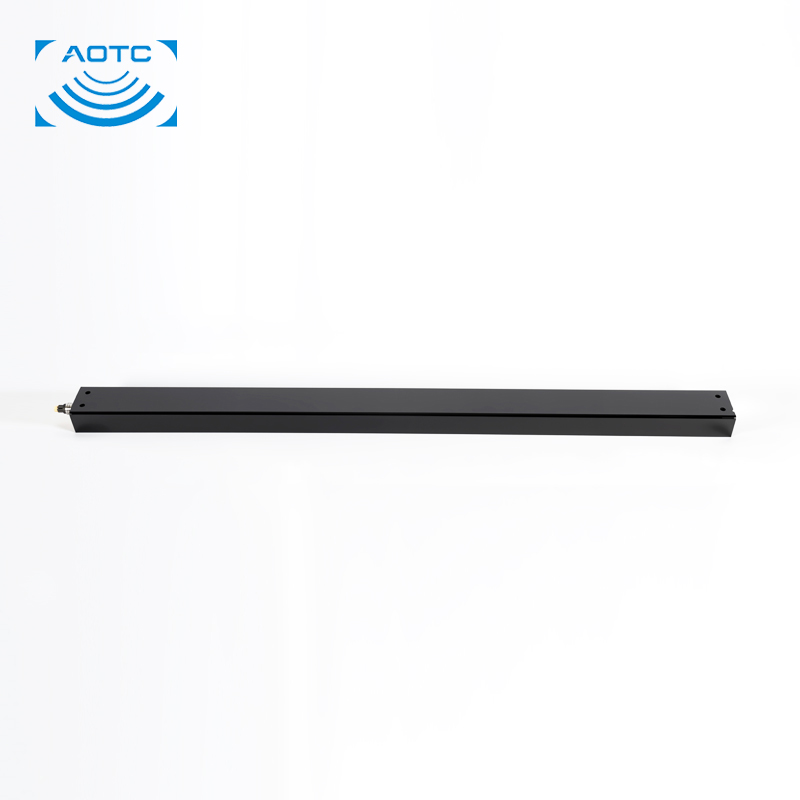

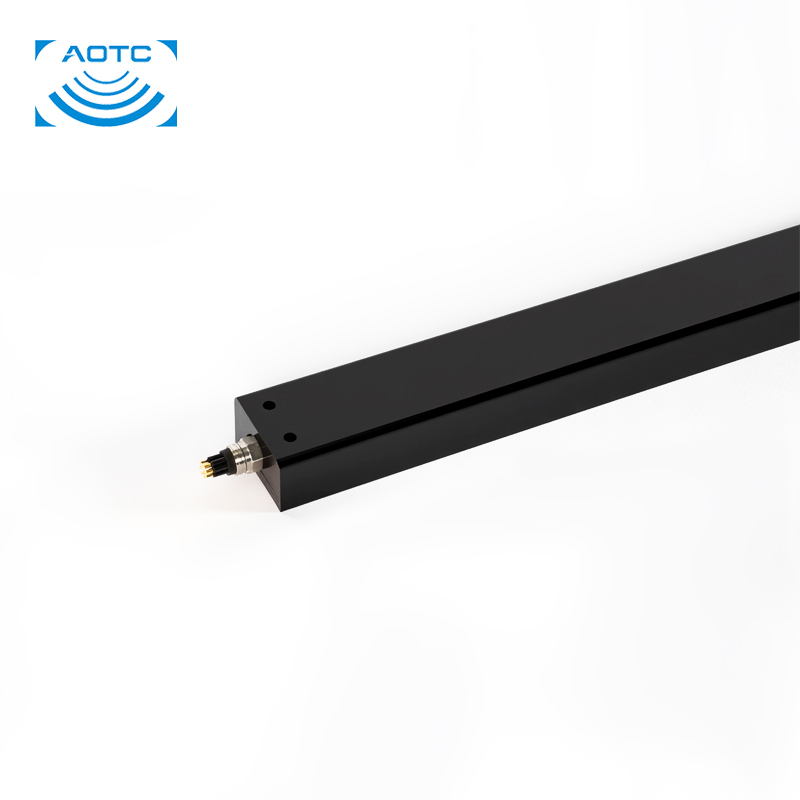

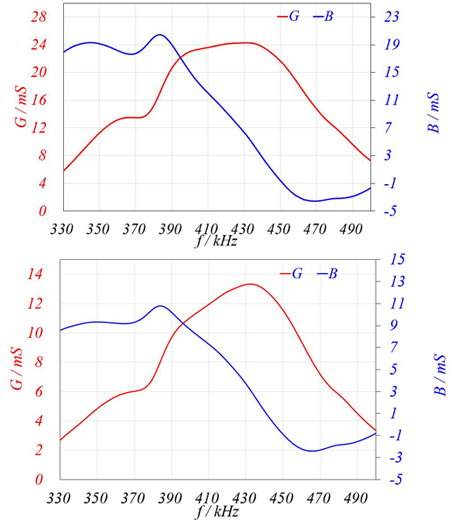

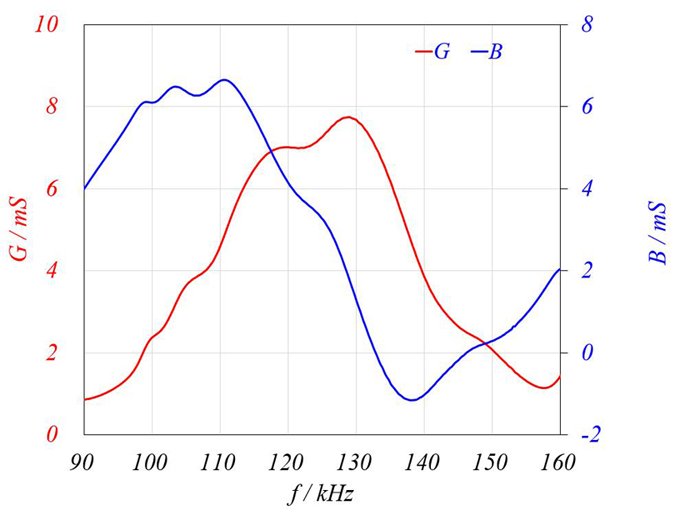

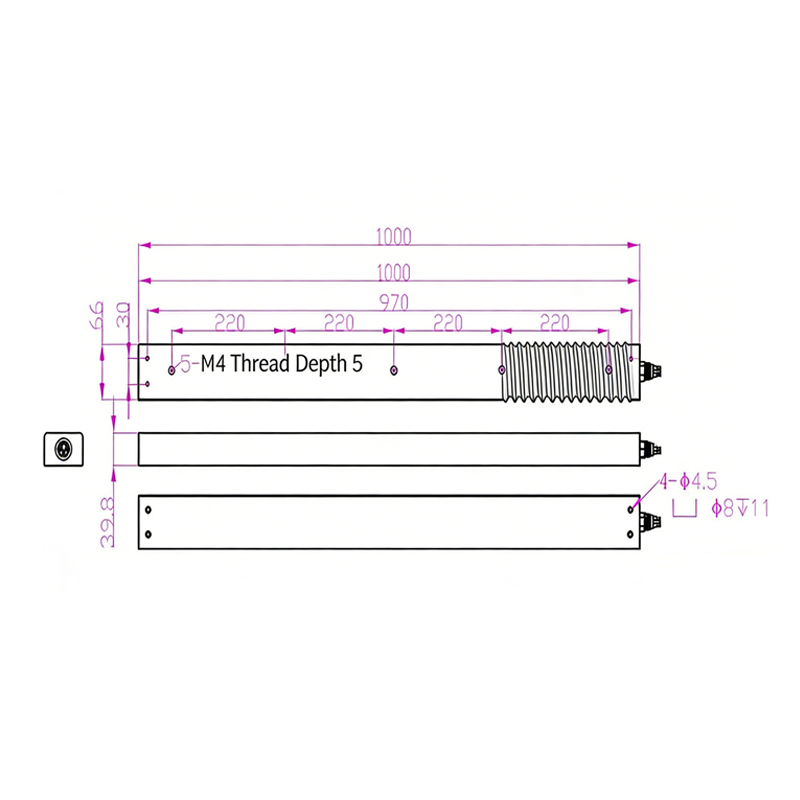

ES1040 Side Scan Transducer

AOTC’s Model ES1040 underwater acoustic transducer array features dual-frequency multi-channel acoustic signal transmission and reception capabilities.

● Channel Name：410kRX / 410kTX / 120kTX/RX
● Center frequency@f _c：410kHz±5% / 410kHz±5% / 120kHz±5%
● Recommended frequency range:340~480kHz / 340~480kHz / 90~160kHz
● Number of channels:1
● OCVS @ f _c:≥-195dB re1V/μPa / - / ≥-193dB re1V/μPa
● TVR @f _c:- / ≥183dB / ≥170dB
● Source Level:- / 225dB / 230dB
● Horizontal Beamwidth（-3dB@f _c）:≤0.5° / ≤0.25° / ≤0.8°

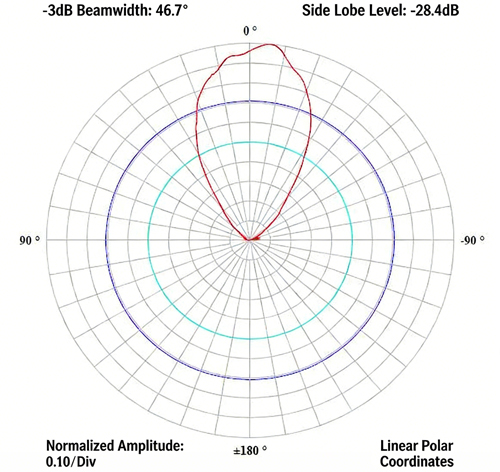

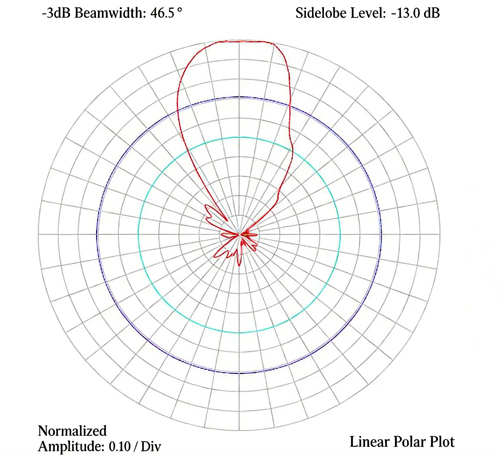

● Vertical Beamwidth（-3dB@f _c）:≥45°
● Weight:4.6kg
● Maximum Operating Depth:6000m

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specifications (Nominal)

Channel Name	410kRX	410kTX	120kTX/RX
Center frequency@f_c	410kHz±5%	410kHz±5%	120kHz±5%
Recommended frequency range	340~480kHz	340~480kHz	90~160kHz
Number of channels	1	1	1
OCVS @ f_c	≥-195dB re1V/μPa		≥-193dB re1V/μPa
TVR @f_c		≥183dB	≥170dB
Source Level		225dB	230dB
Horizontal Beamwidth（-3dB@f_c）	≤0.5°	≤0.25°	≤0.8°
Vertical Beamwidth（-3dB@f_c）	≥45°
Weight	4.6kg
Maximum Operating Depth	6000m
