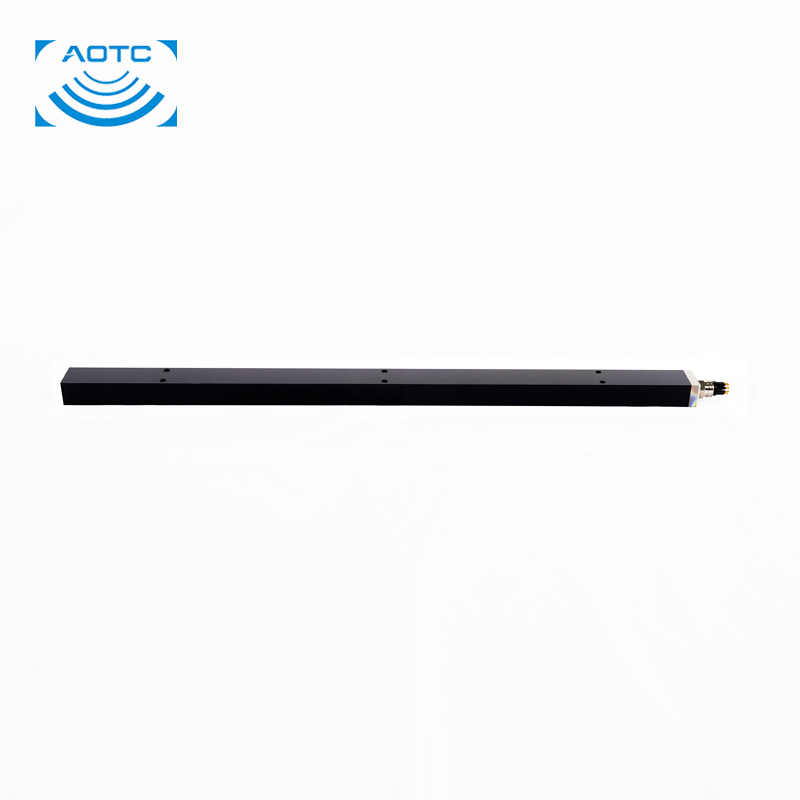

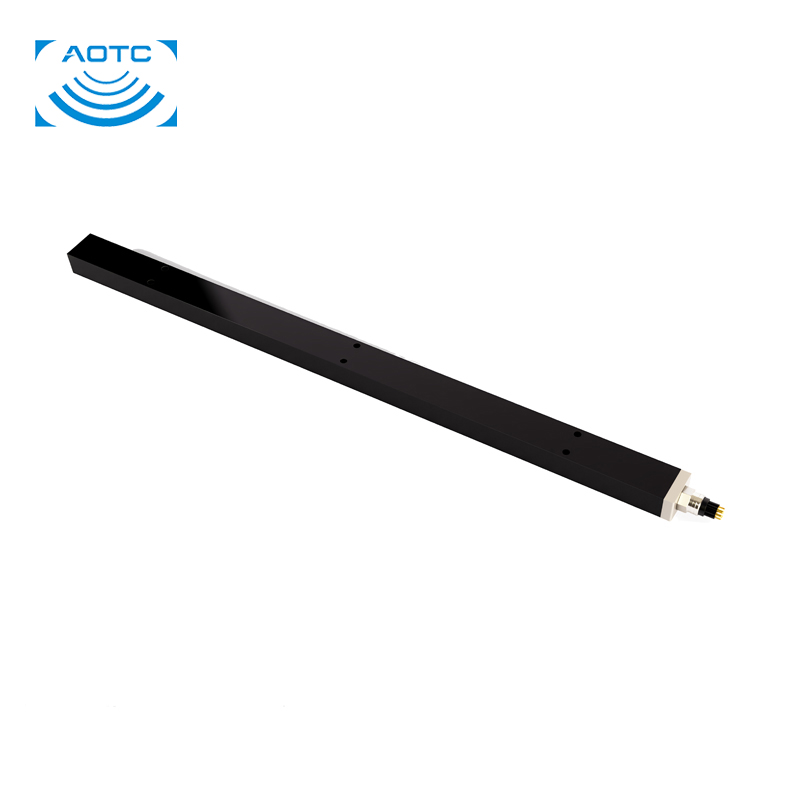

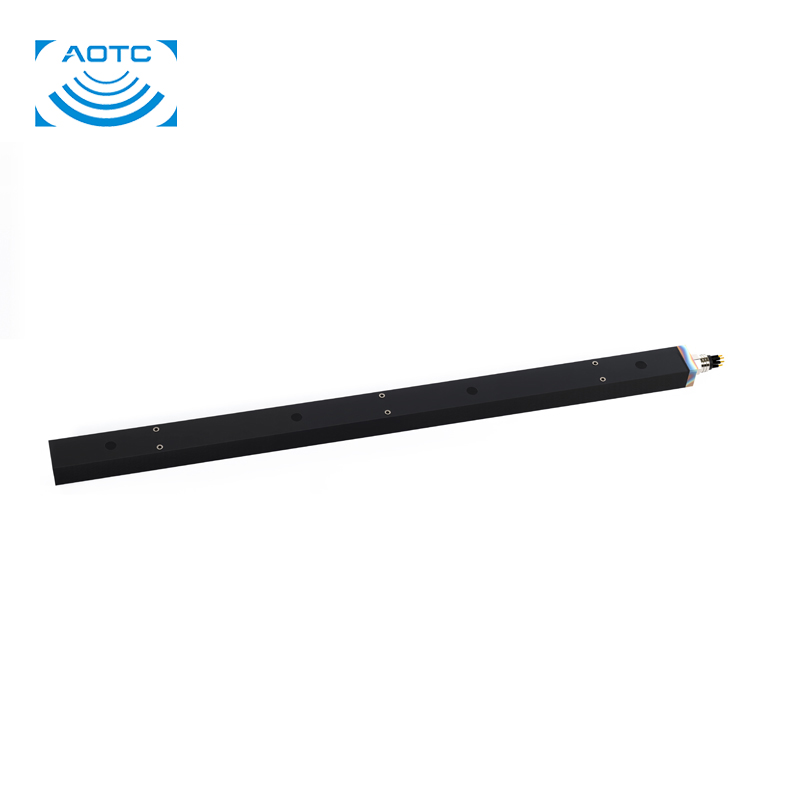

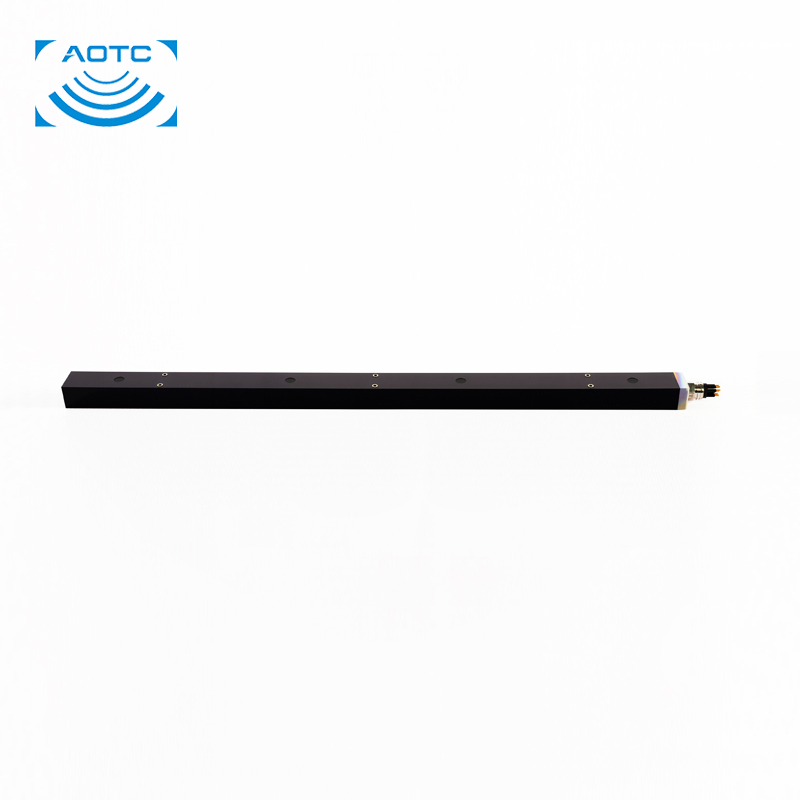

SS900-DP2000 Side Scan Transducer

AOTC’s Model SS900-DP2000 Transducer Array features multi-channel acoustic signal transmission and reception capabilities. This product is combined transmission and reception functions.

● Resonant Frequency f c: 900 kHz
● Recommended Frequency Range: 850–950 kHz
● Number of Channels: 3
● Acoustic Aperture per Channel: 200 mm
● OCVS: ≥ -206 dB re 1 V/μPa (within operating band)
● Source Level @ f c: 230 dB re 1 μPa·m
● Horizontal Beam pattern @ f c: 0.43° ± 0.3°
● Vertical Beam pattern @ f c: ≥ 45°
● Maximum Operating Depth: 2,000 m

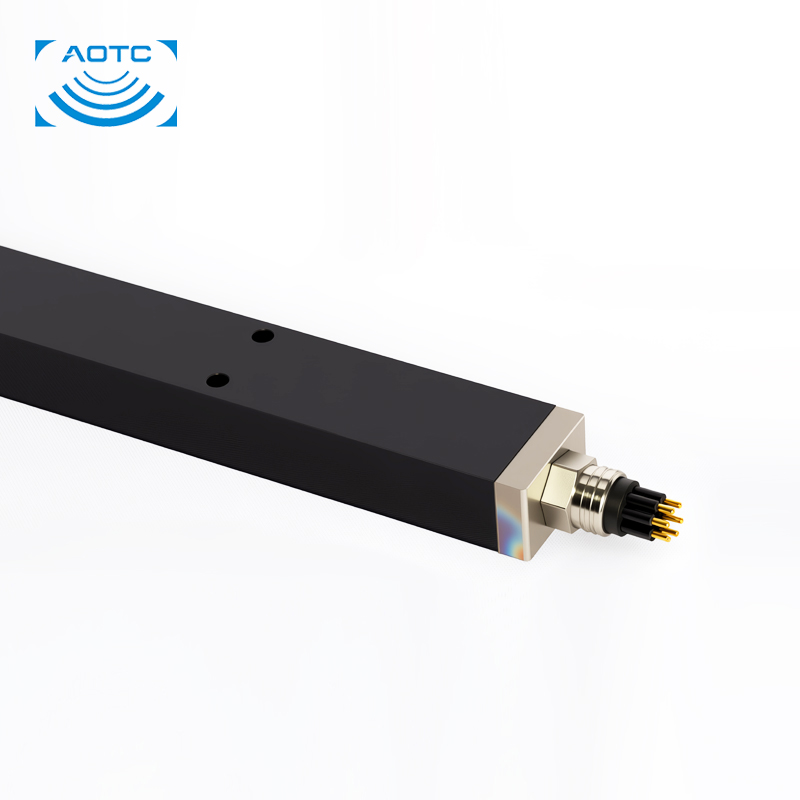

● Interface Type: MCBH8M-Ti
● Main Body Material: Titanium Alloy
● Weight: 1.0 kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
Product Description

Performance Curves (Nominal)

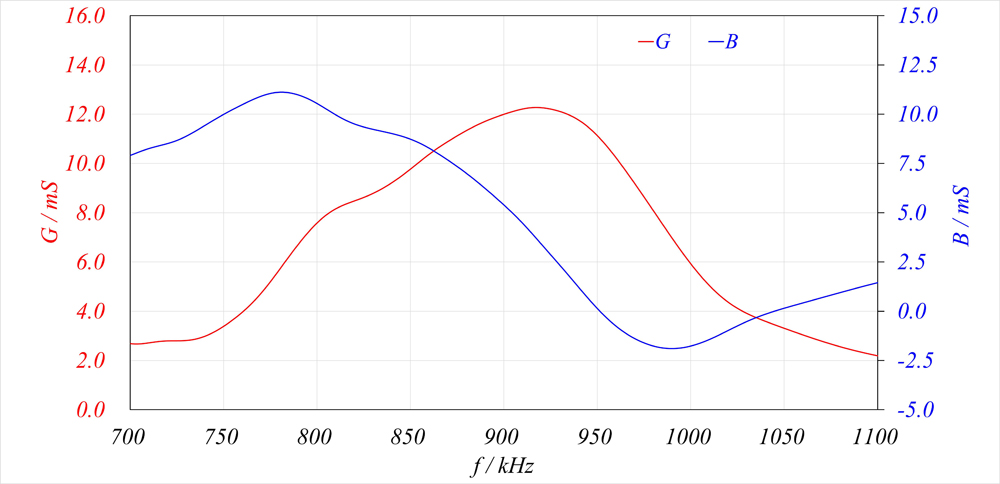

Single-Channel Underwater Admittance Plot（G&B）

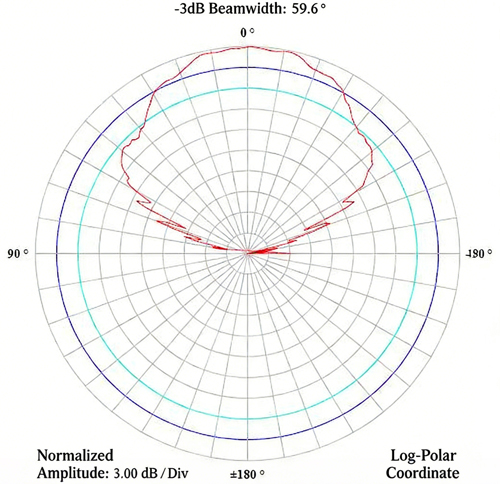

Vertical Beam Pattern@900kHz

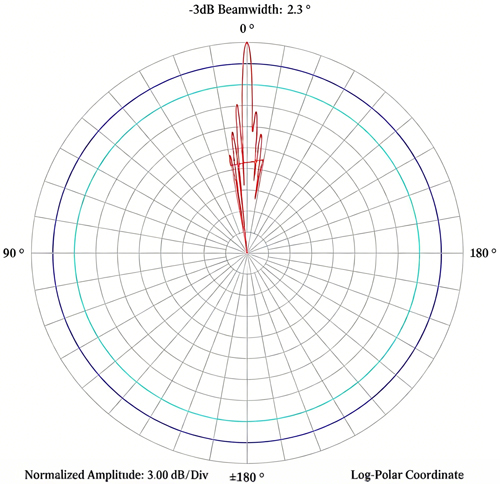

Horizontal Beam Pattern @900kHz






Product Description
