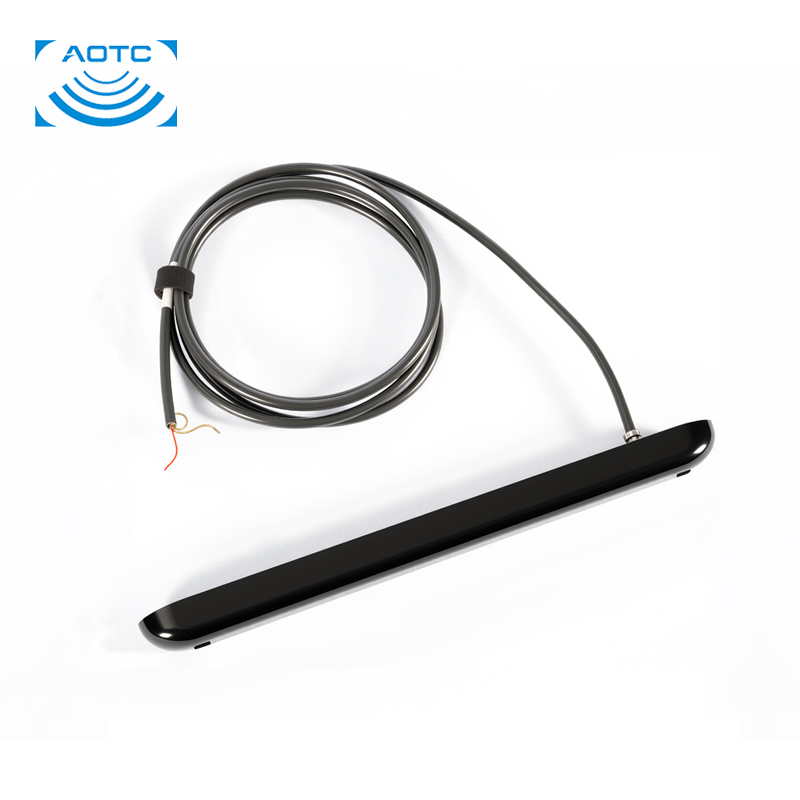

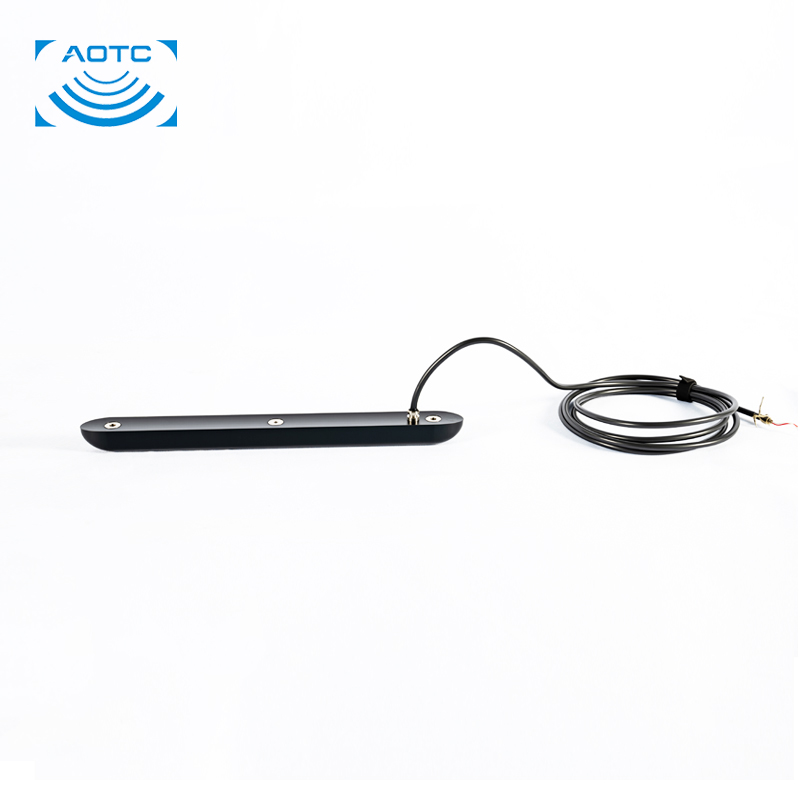

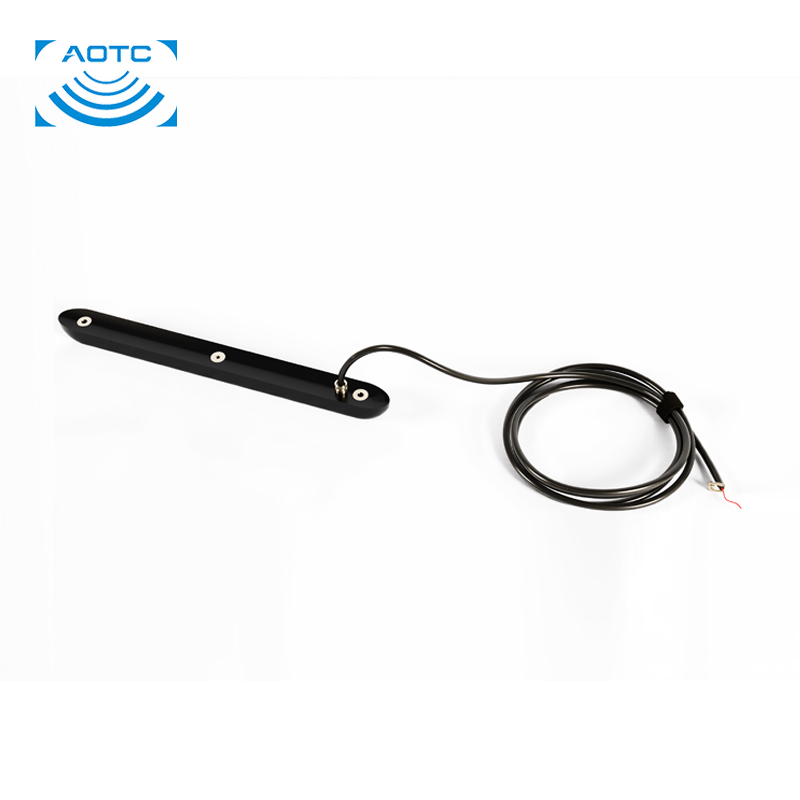

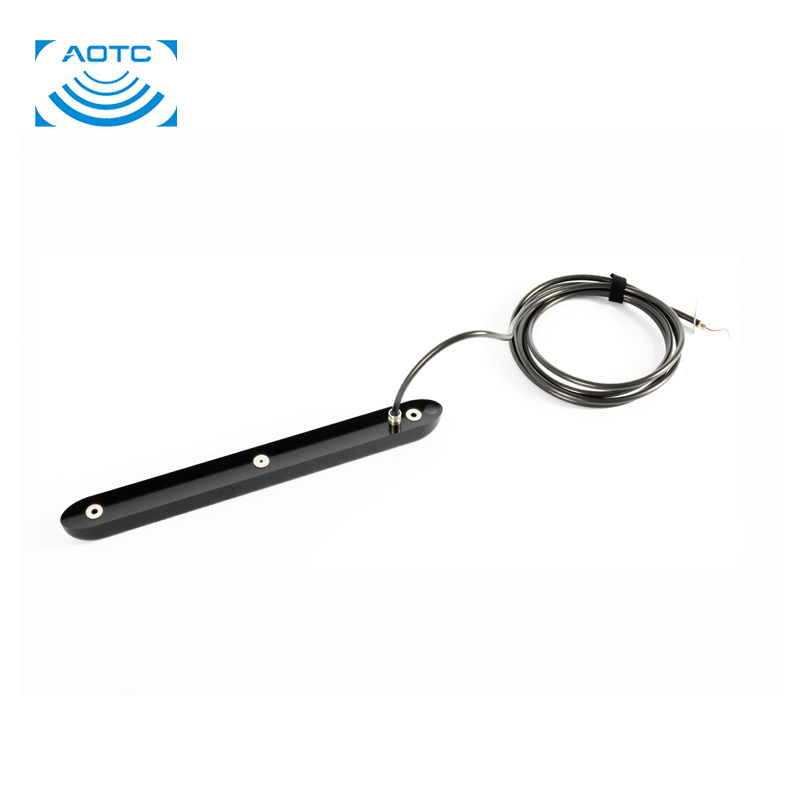

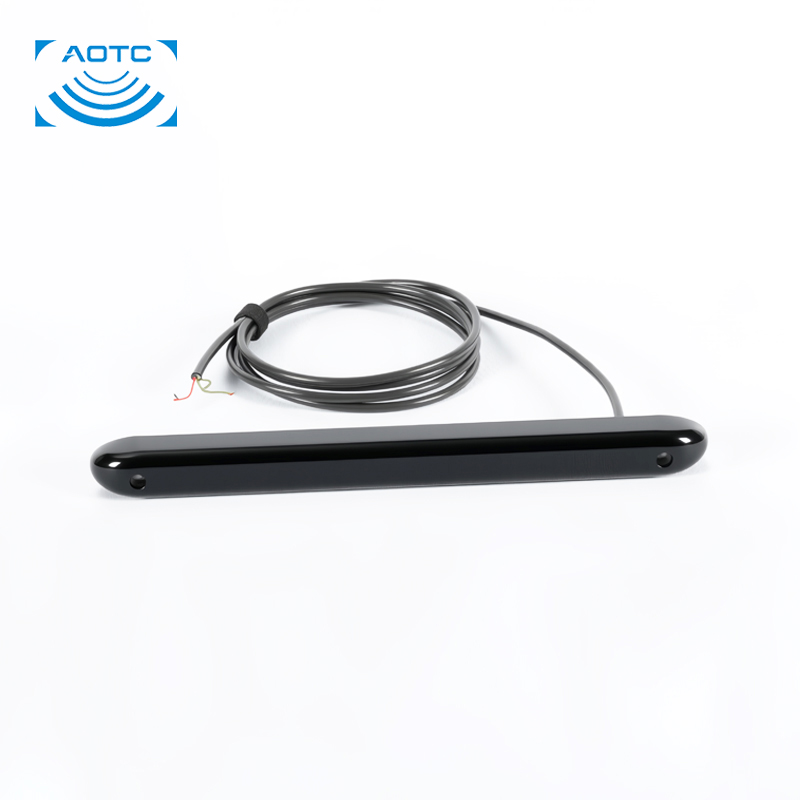

MKⅡ-900 Side Scan Transducer

AOTC’s Model MKⅡ-900 Side-Scan Sonar Transducer is a high-frequency, co-located transmit-receive linear array transducer.

● Number of Channels：1
● Center Frequency：900kHz
● Static Capacitance：1.9nF
● Impedance Bandwidth：≥350kHz
● OCVS：≥-200dB
● Element TVR:187dB
● Vertical Beamwidth (-3 dB):50°
● Horizontal Beamwidth (-3 dB):0.4°
● Interface:3m Twisted-Pair Shielded Cable
● Weight:0.3kg
● Main Body Material：Aluminum alloy
● Maximum Operating Depth:3000m
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
Product Description

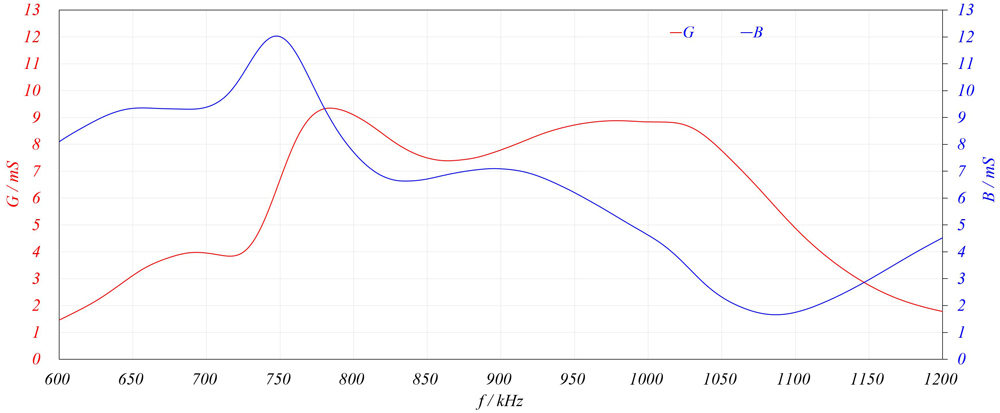

Admittance Plot (G & B) in Water


Product Description

Related Products

TS40-900-A50 Side Scan Transducer
TS40-900-A50 Side Scan Transducer
SS900-DP2000 Side Scan Transducer
SS900-DP2000 Side Scan Transducer
SS3060 Side Scan Transducer
SS3060 Side Scan Transducer

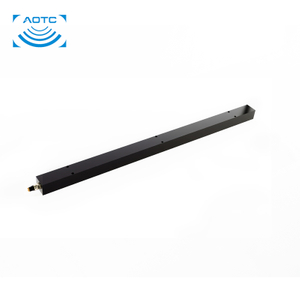

SS2090 Side Scan Transducer
