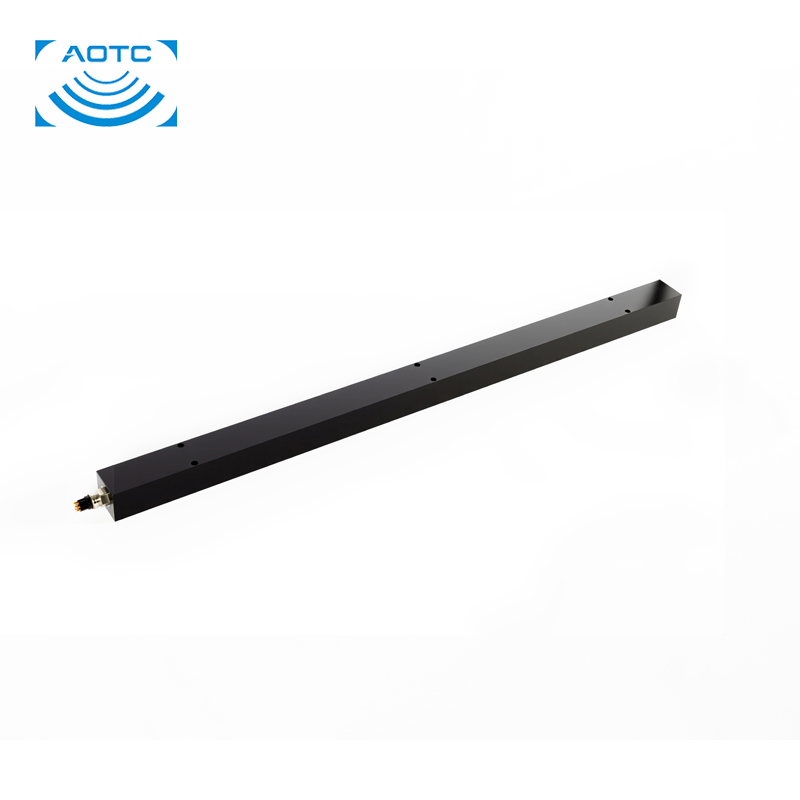

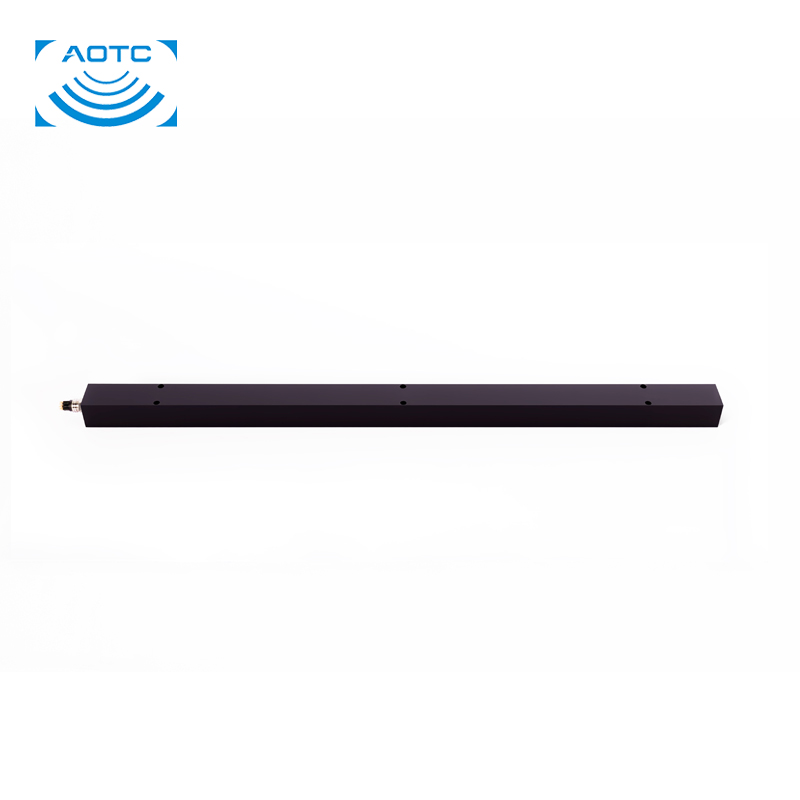

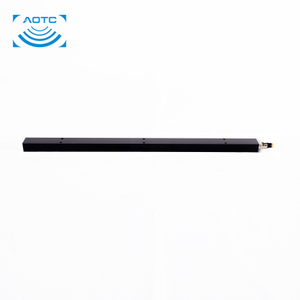

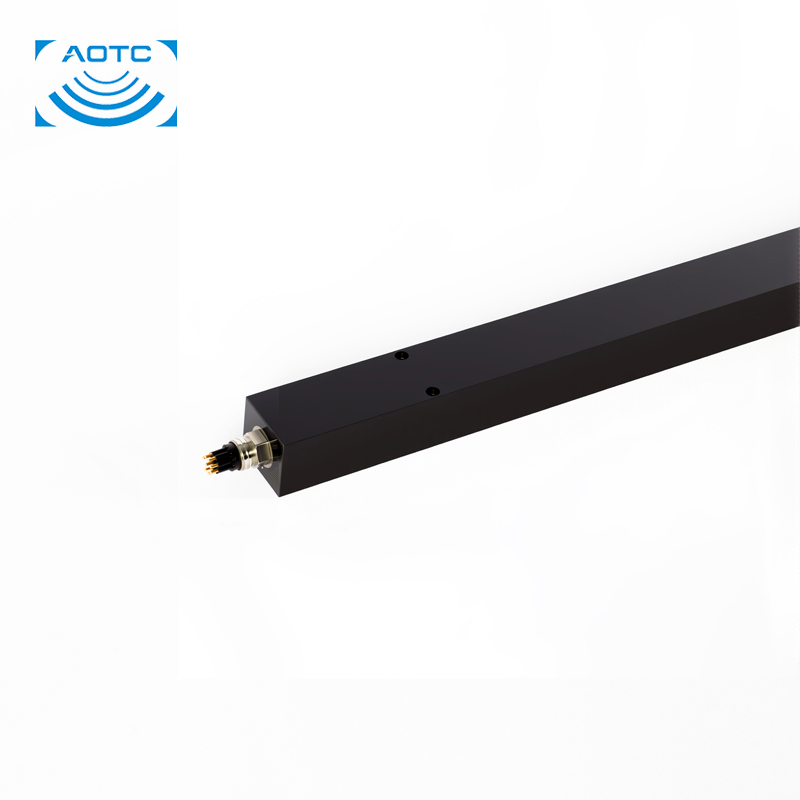

SS2090 Side Scan Transducer

AOTC’s Model SS2090 transducer is a combined transmit/receive, dual-frequency linear array transducer.

● Channel Name: 200kHz / 900kHz
● Center frequency@ f _c:200kHz±5% / 900kHz±5%
● Recommended frequency range:175~225kHz / 850~950kHz
● Number of channels:1 / 2
● OCVS@f _c:≥-195dB re1V/μPa / ≥-205dB re1V/μPa
● Source Level:≥215dB
● Horizontal Beamwidth（-3dB@f _c）:0.5°±0.2° / 0.22°±0.3°

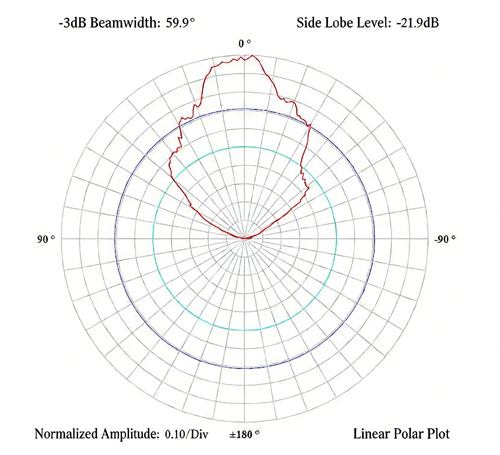

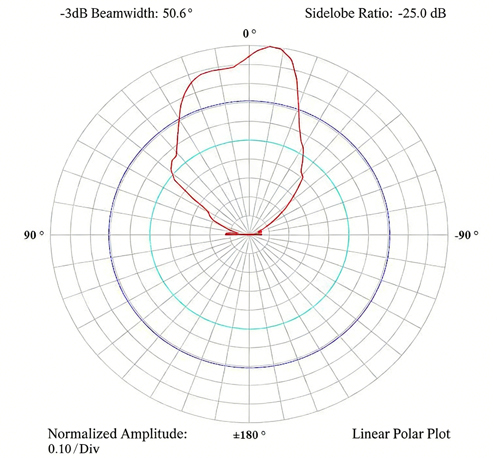

● Vertical Beamwidth（-3dB@f _c）:≥45°
● Weight:2.8kg
● Maximum Operating Depth:6000m
● Interface type:8-Pin Waterproof Connector

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specifications (Nominal)

Channel Name	200kHz	900kHz
Center frequency@ f_c	200kHz±5%	900kHz±5%
Recommended frequency range	175~225kHz	850~950kHz
Number of channels	1	2
OCVS@f_c	≥-195dB re1V/μPa	≥-205dB re1V/μPa
Source Level	≥215dB	≥215dB
Horizontal Beamwidth（-3dB@f_c）	0.5°±0.2°	0.22°±0.3°
Vertical Beamwidth（-3dB@f_c）	≥45°
Weight	2.8kg
Maximum Operating Depth	6000m
Interface type:	8-Pin Waterproof Connector
