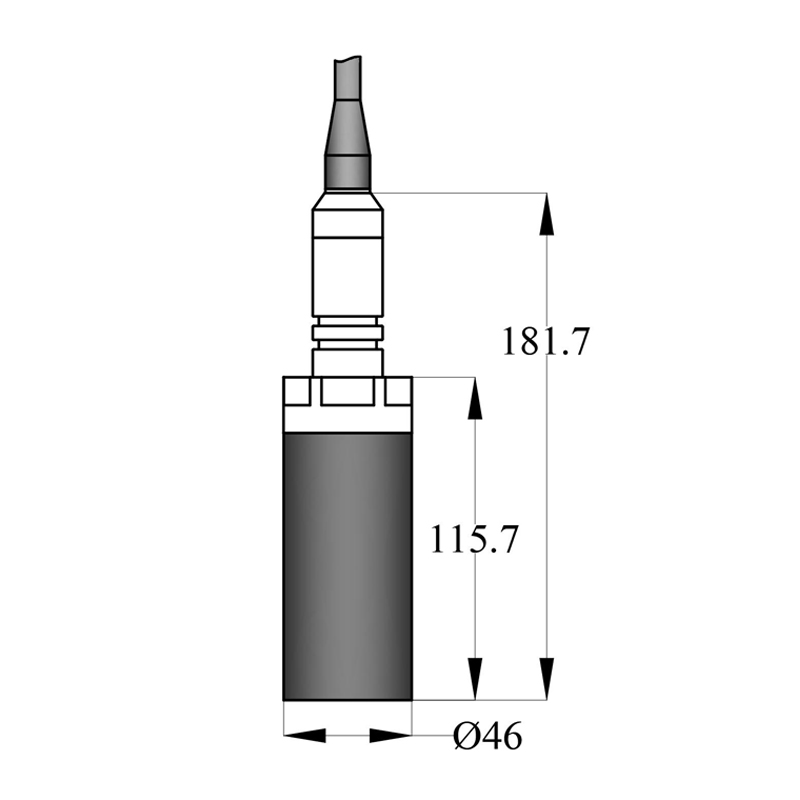

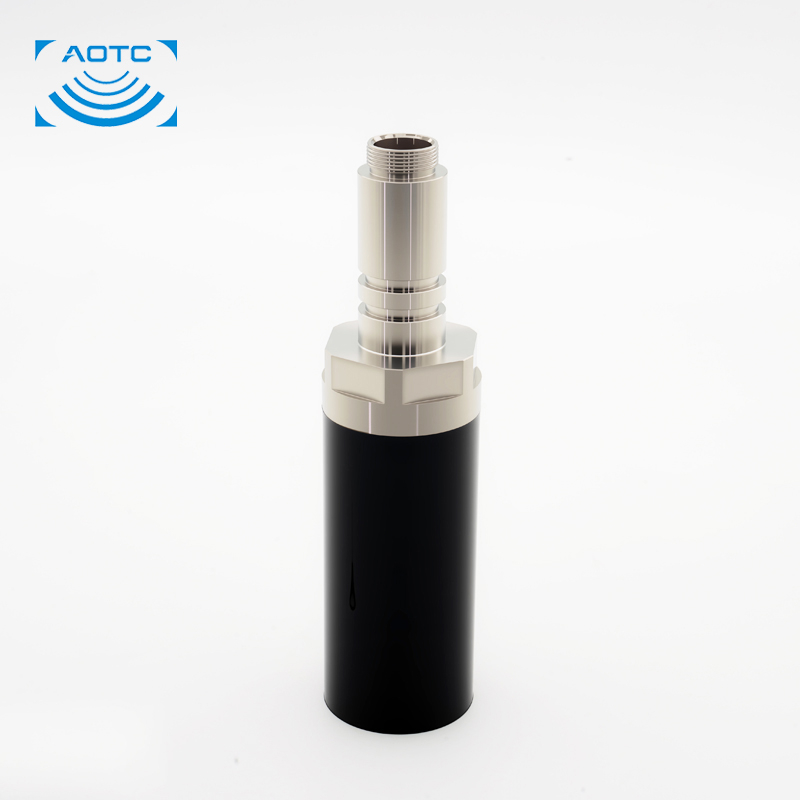

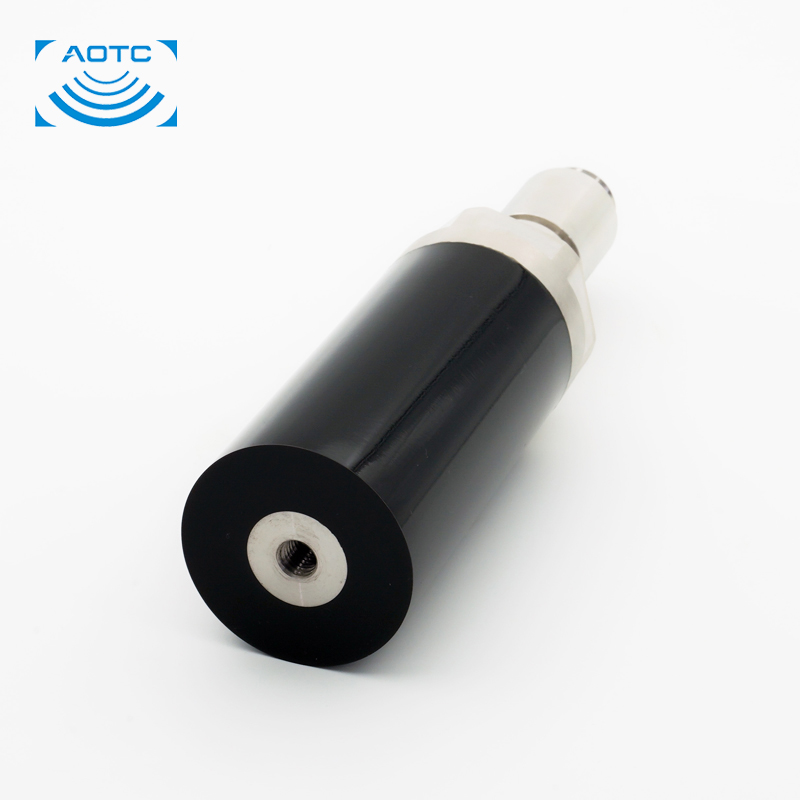

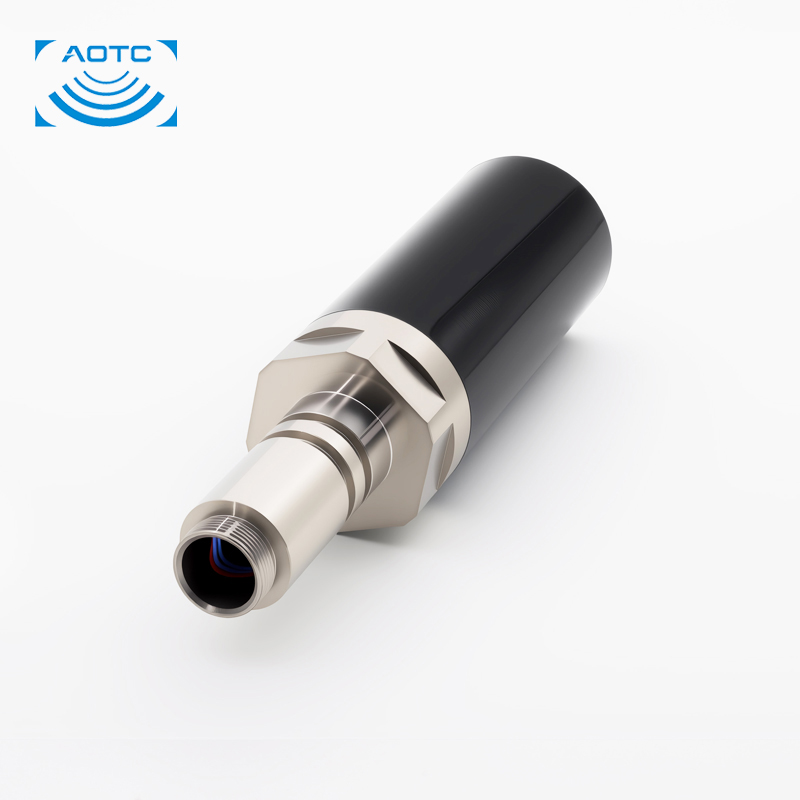

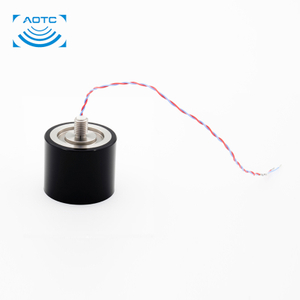

WBT30-3U Cylinder Broadband Transducer



● Central frequency (fᵣ): 27.5 kHz
● Static capacitance (C₀): 43 nF
● Recommended Range: 20 kHz – 40 kHz

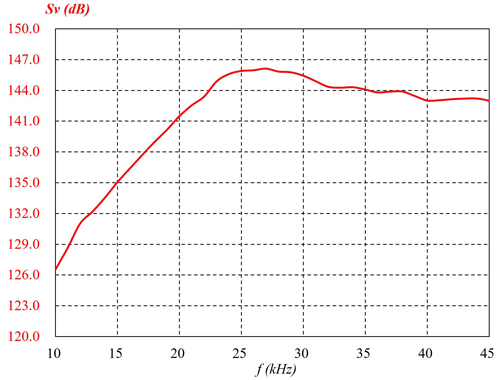

● TVR @ fᵣ: ≥ 146 dB re 1 μPa•m/V
● Source level @ fᵣ: ≥ 200 dB re 1 μPa•m

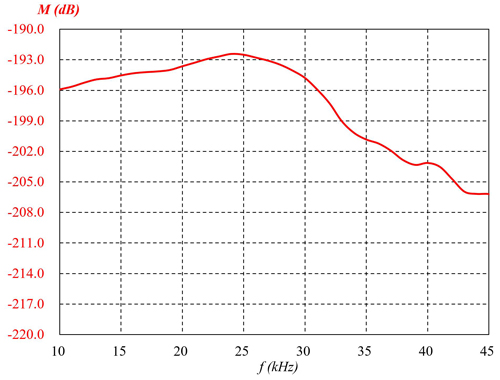

● OCVS@ fᵣ: ≥ -194 dB re 1 V/μPa

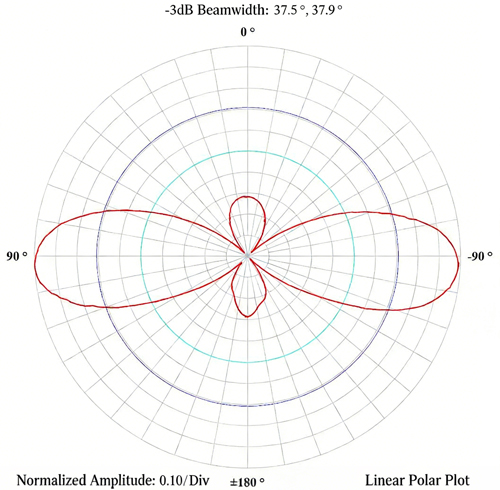

● Horizontal Beam Pattern: Omnidirectional
● Vertical Beam Pattern: ∞
● Maximum operating depth: 300 m
● Cable: Dual-core shielded cable
● Cable length: Standard 10 m, customizable
● Main body material: Stainless steel
● Weight: 0.9 kg
