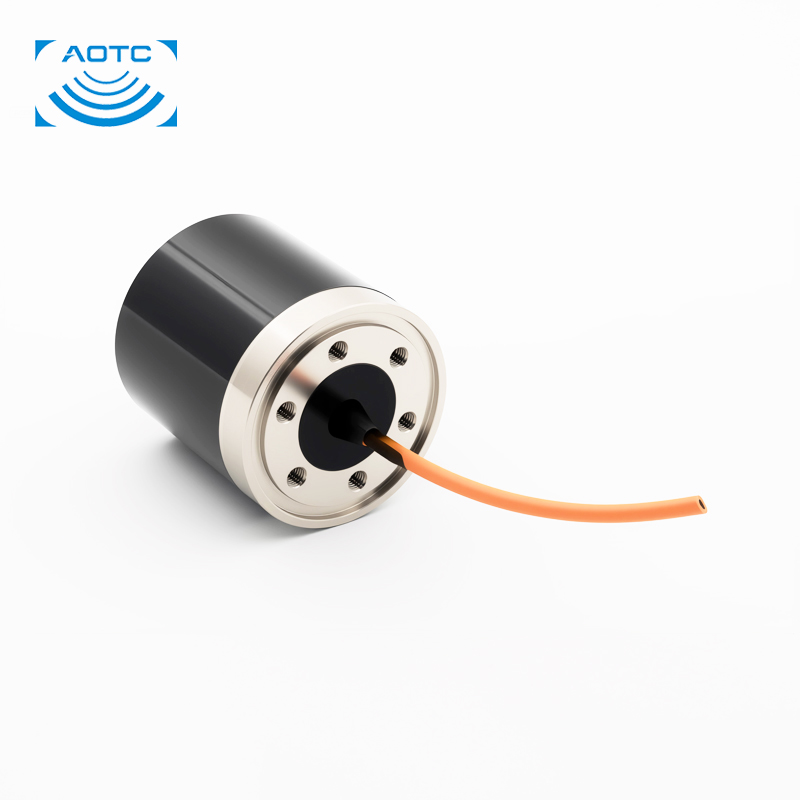

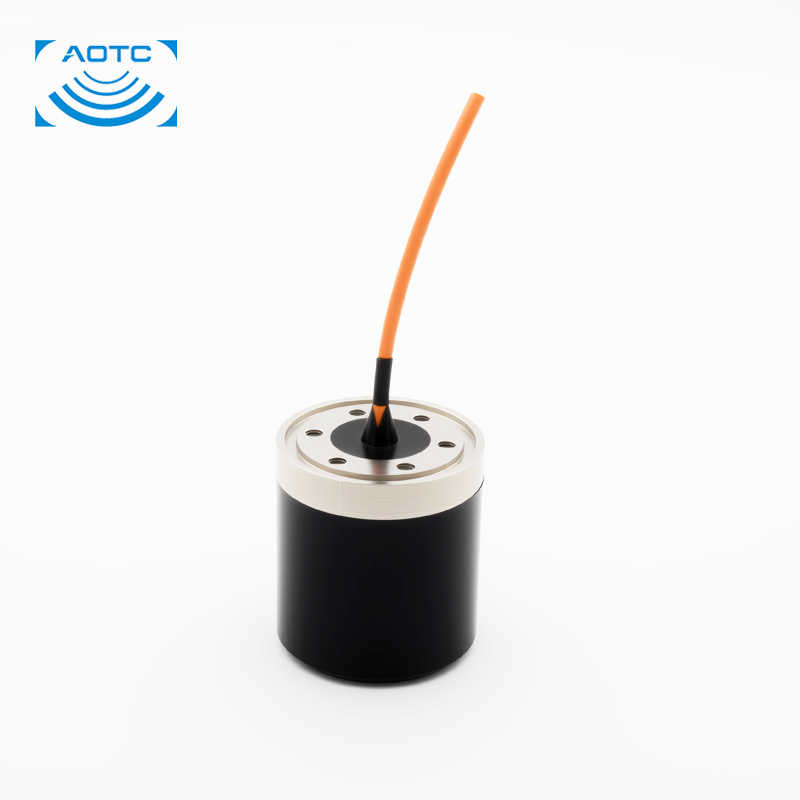

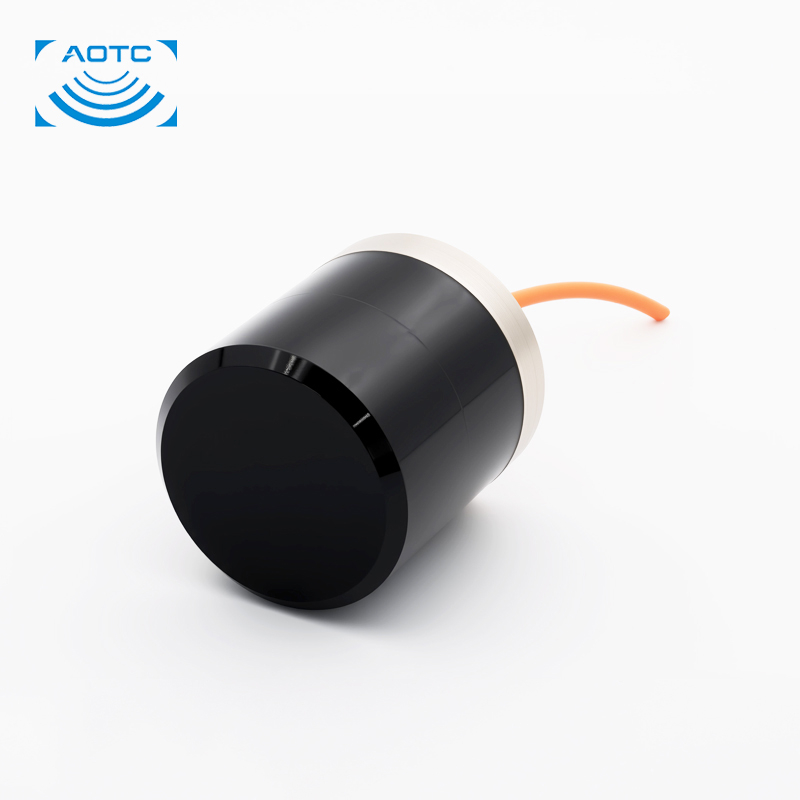

WBT25-1U Cylinder Broadband Transducer



● Resonant frequency (fᵣ): 21.2 kHz
● Static capacitance (C₀): 15 nF
● Recommended Frequency Range: 15 - 35 kHz

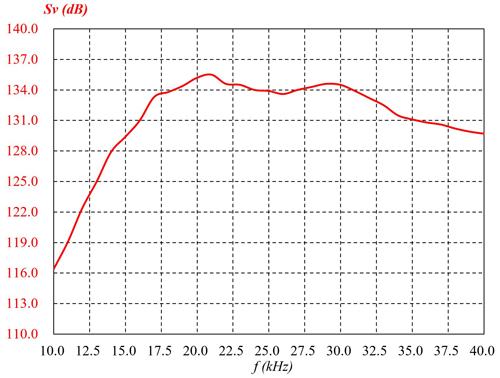

● TVR : 136 dB re 1 μPa•m /V

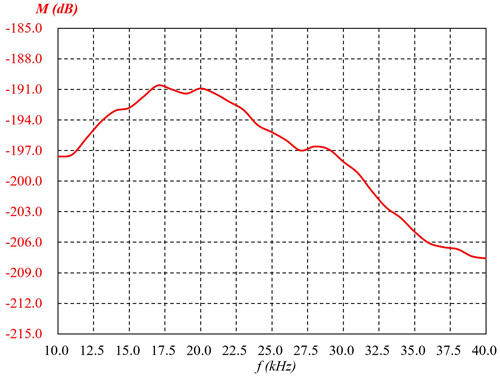

● OCVS @ fᵣ: -192 dB re 1 V/μPa

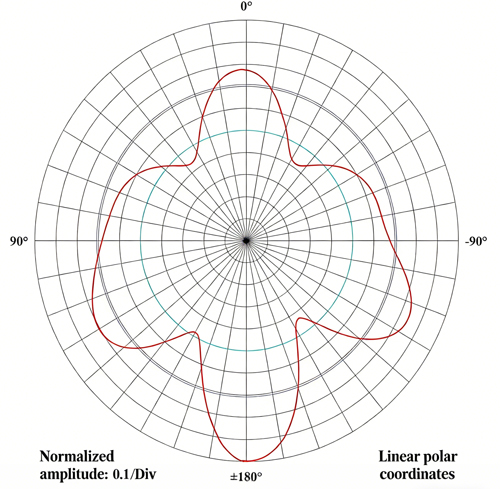

● Horizontal Beam pattern: Omnidirectional
● Vertical Beam pattern: ∞
● Maximum Operating Depth: 300 m
● Cable: Dual-core shielded cable
● Cable length: Standard 10 m, customizable
● Main body material: Stainless steel
● Weight: 400 g
