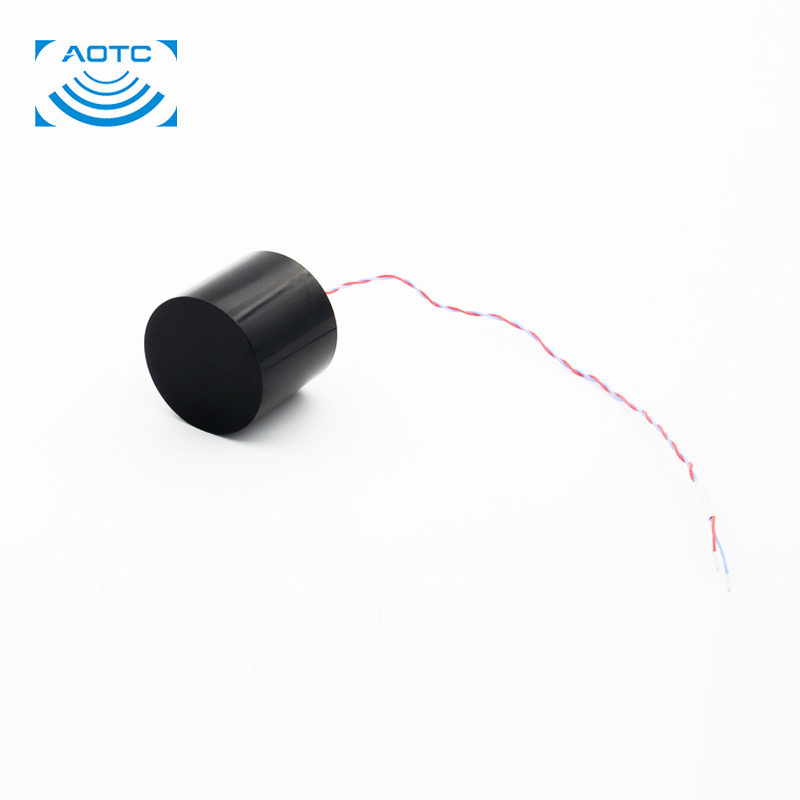

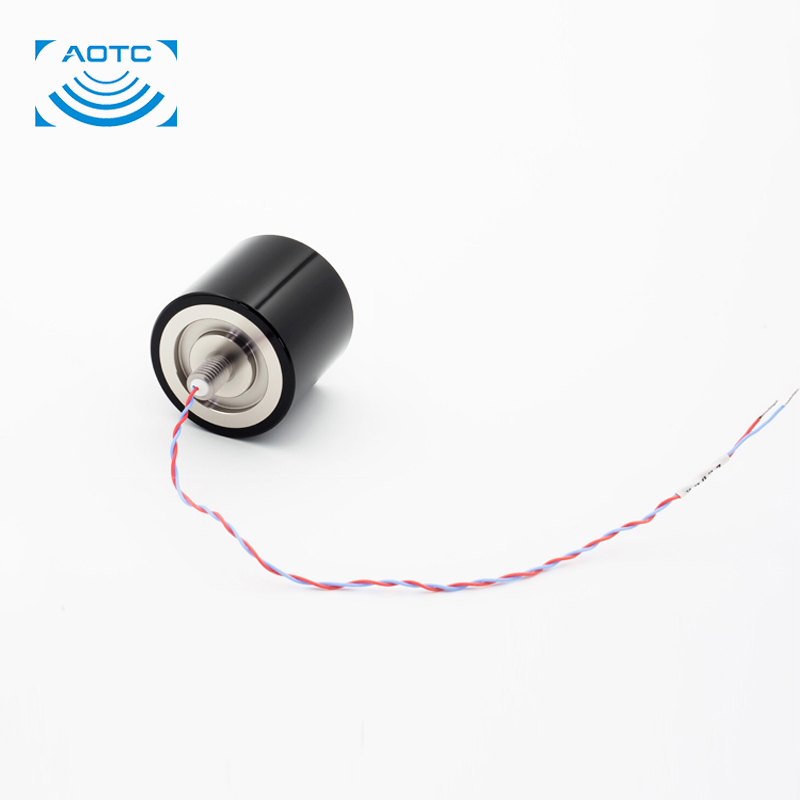

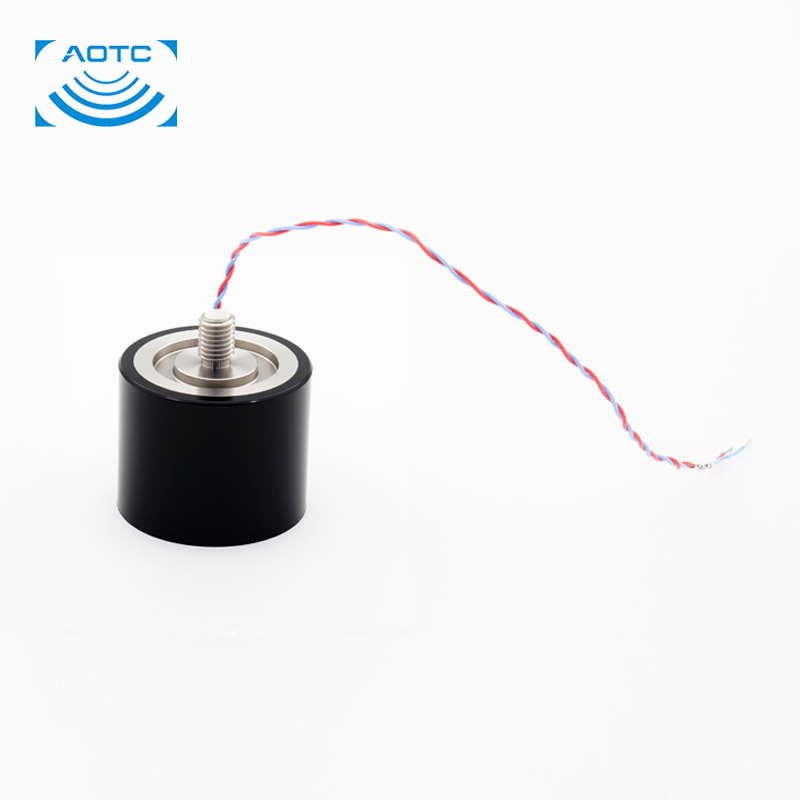

WBT30-1U Cylinder Broadband Transducer

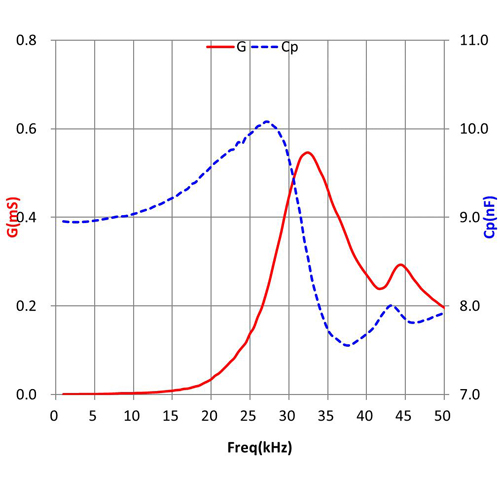

● Static Capacitance (C₀): 15 nF
● Resonant Frequency (fᵣ): 32 kHz
● Operational Frequency Range: 20–40 kHz

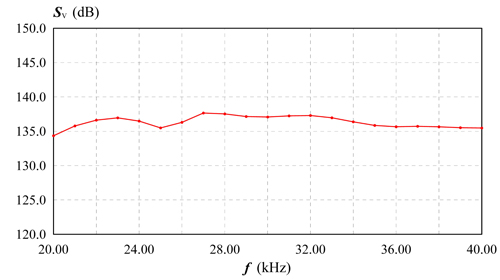

● TVR @ fᵣ: 137 dB re 1 μPa•m/V

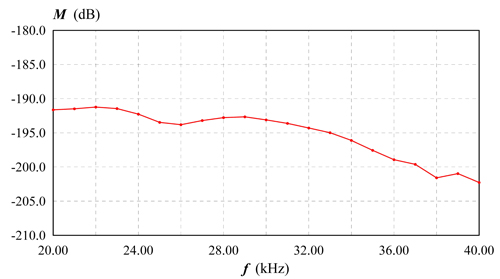

● OCVS @ fᵣ: -195 dB re 1 V/μPa

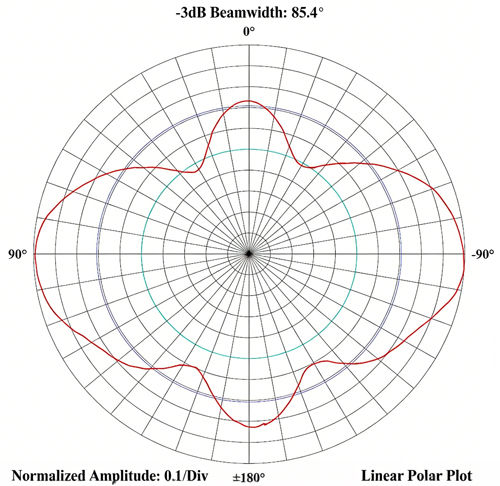

● Horizontal Beam pattern: Omnidirectional
● Vertical Beam pattern: ∞
● Maximum Operating Depth: 300 m
● Cable: 4.2 mm-diameter dual-core shielded polyurethane cable
● Cable Length: Standard 10 m, customizable
● Main Body Material: Stainless Steel
● Weight: 0.5 kg
