TBP30 Tonpilz Bend Transducer And Array

AOTC’s Model TBP30 transducer is used in scenarios such as underwater communication and active detection sonar.

● Resonant frequency (fᵣ): 23 kHz
● Static capacitance (C₀): 6.2 nF
● Recommended frequency range: 15 - 45 kHz
● TVR @ fᵣ: 144 dB re 1 μPa/V
● OCVS @ fᵣ: -179 dB re 1 V/μPa
● Beam Pattern: Conical
● Maximum Operating Depth: 300 m
● Cable: 4.2 mm diameter dual-core shielded cable
● Cable length: Standard 10 m, customizable
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
Product Description

Performance Curves (Nominal)

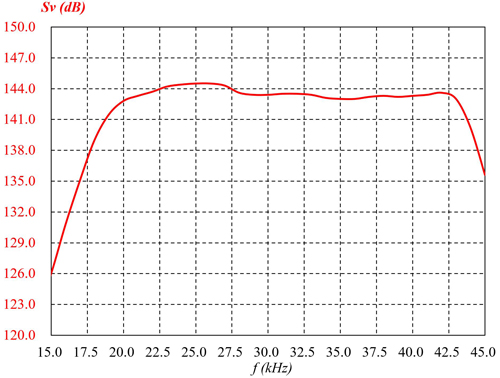

Transmit Curve

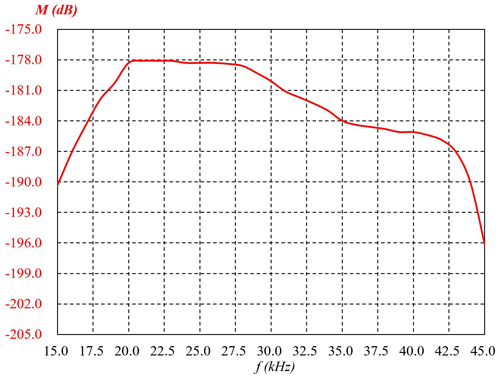

Receive curve

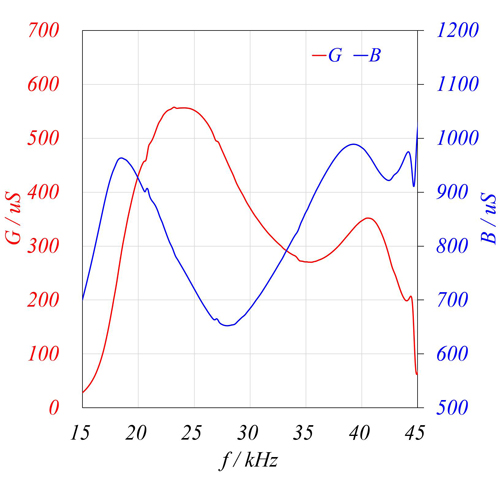

Admittance Plot (G & B) in Water

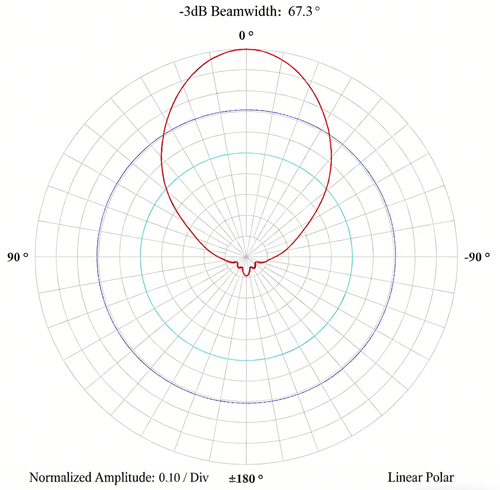

Beam Pattern @30kHz





Product Description
