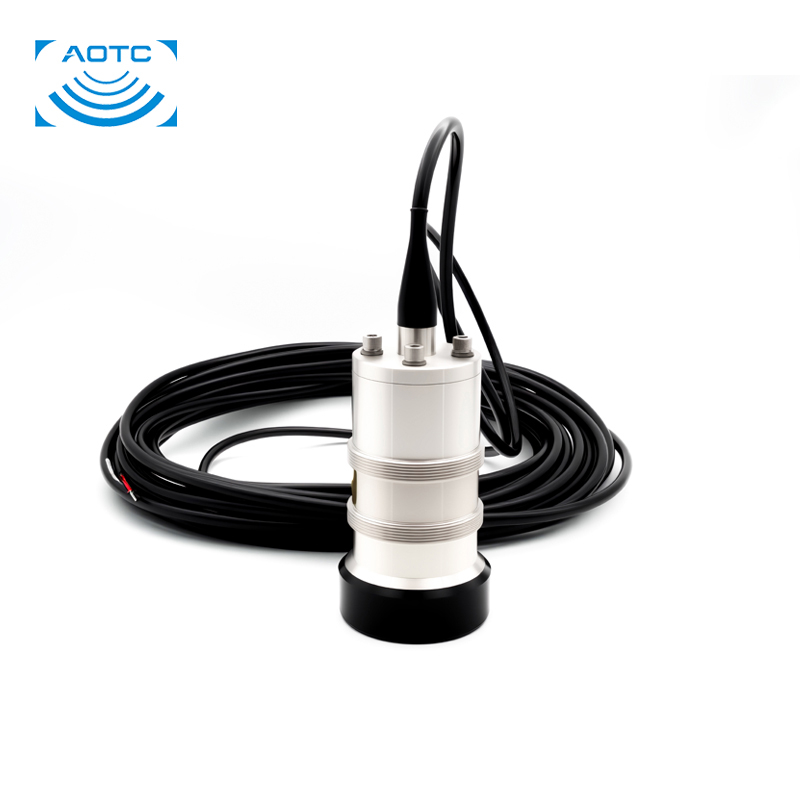

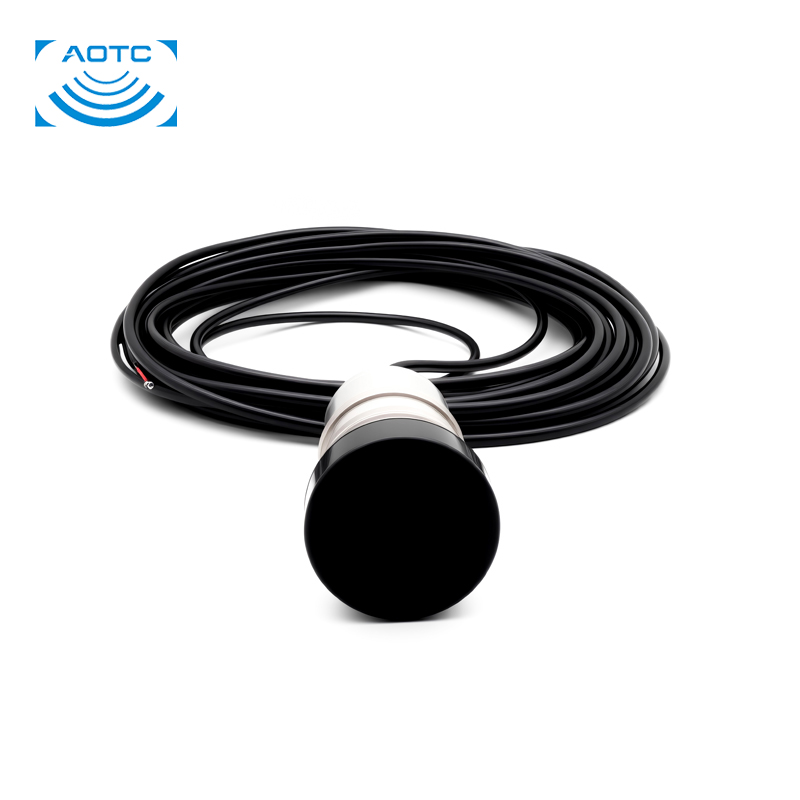

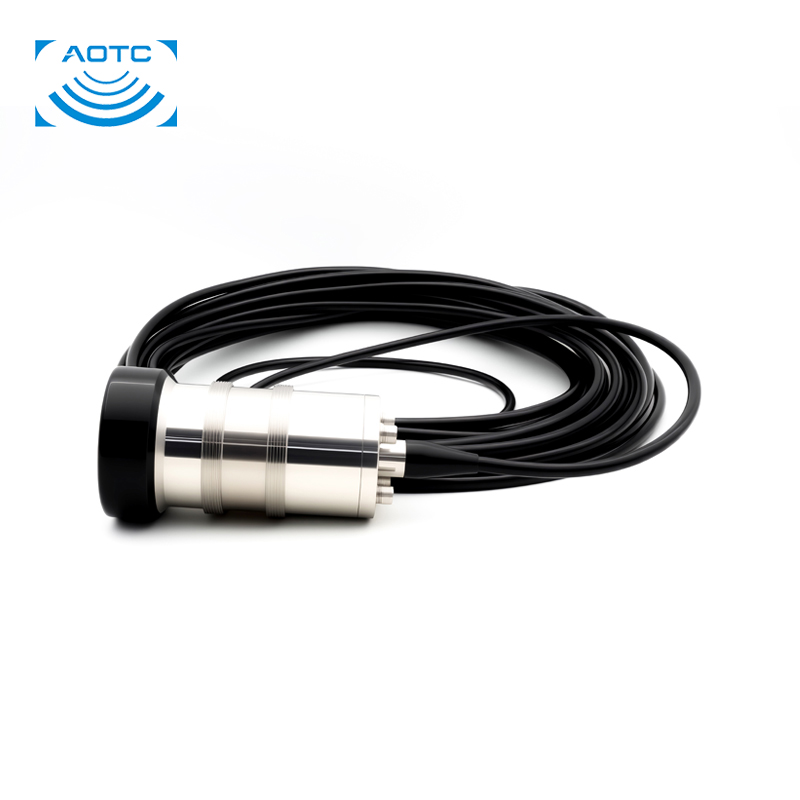

TBP15 Tonpilz Bend Transducer And Array



● Resonant Frequency (fᵣ): 10.2 kHz

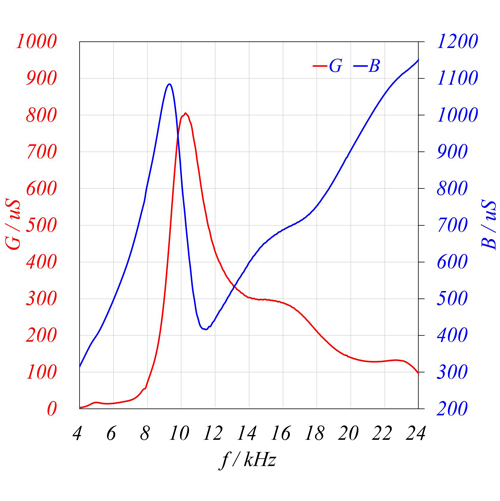

● Static Capacitance (at 1 kHz): 12 nF
● Recommended frequency Range:9~24 kHz
● TVR @ fᵣ: 143 dB re 1 μPa•m/V

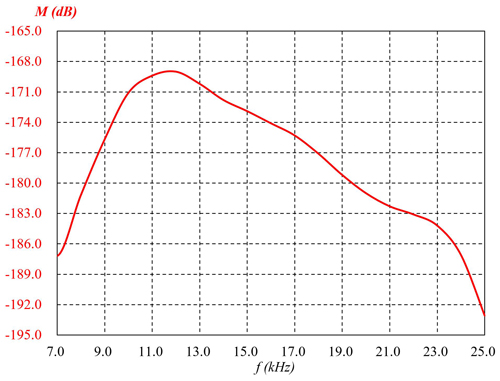

● OCVS @ fᵣ:-171 dB re 1 V/μPa
● Source level @ fᵣ: 203 dB re 1μPa•m

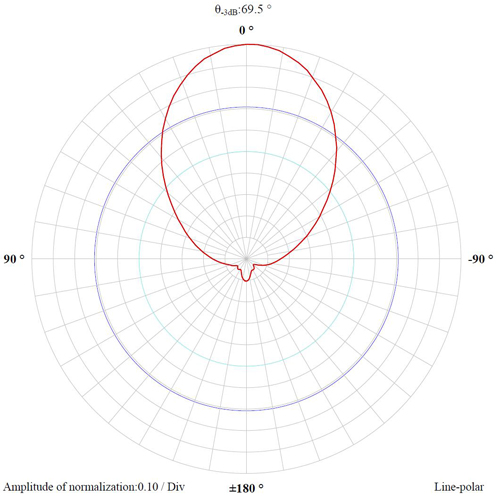

● Beam Pattern(@fᵣ): Conical
● Maximum operating depth: 300 m
● Cable: Polyurethane Ø8mm 2 Core Screened
● Cable length: 10 metres standard Additional lengths supplied to order
● Main body material: Stainless steel
● Weight: 2.1 kg
