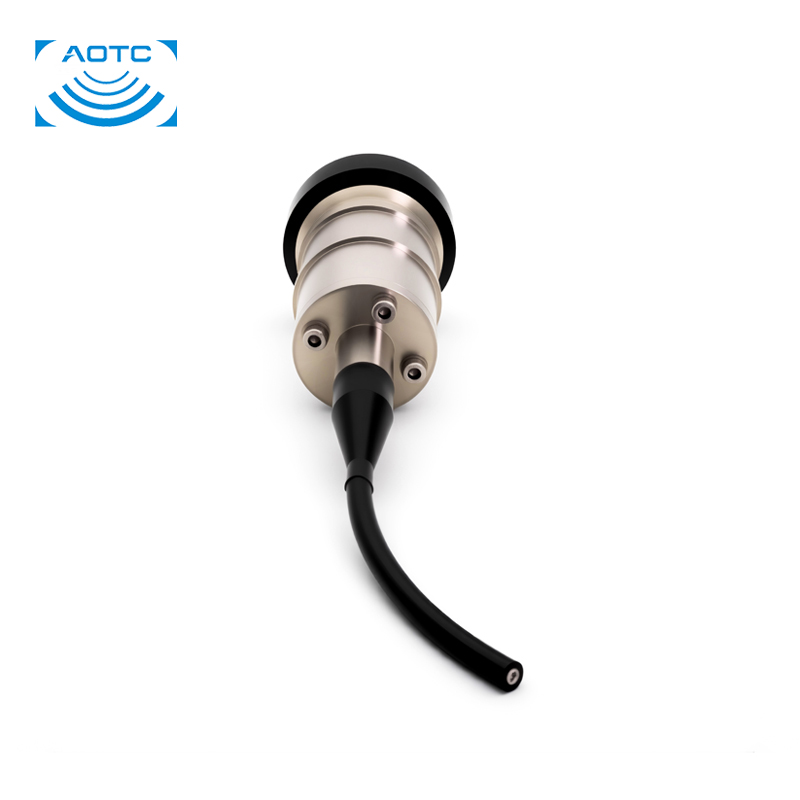

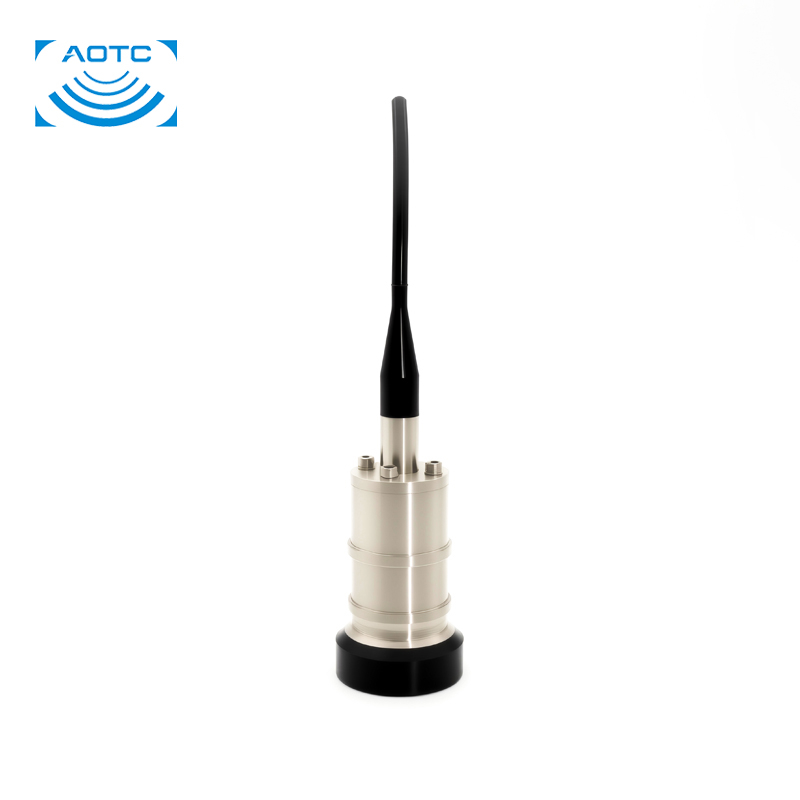

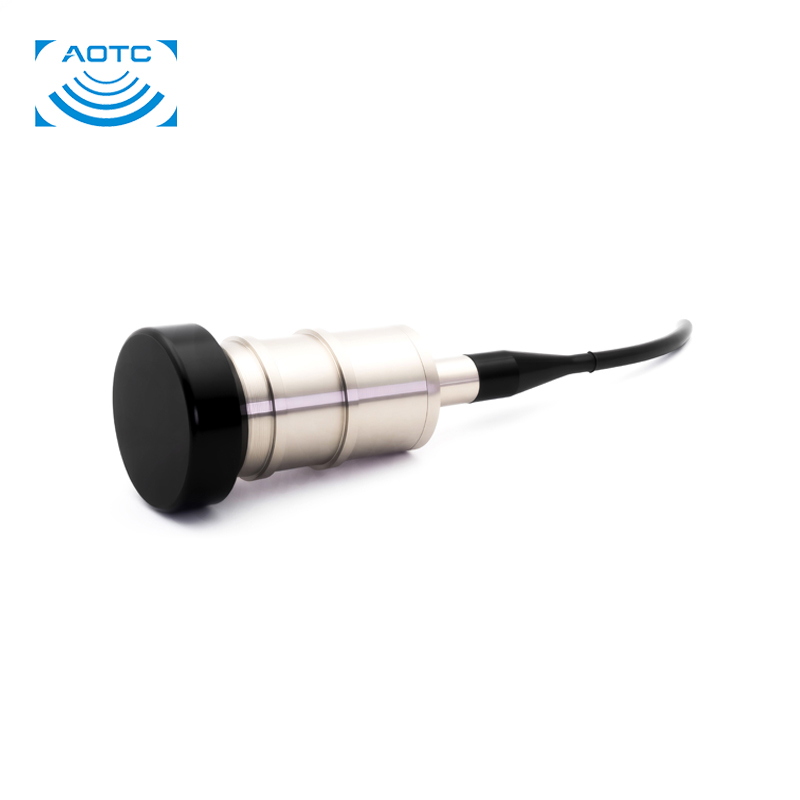

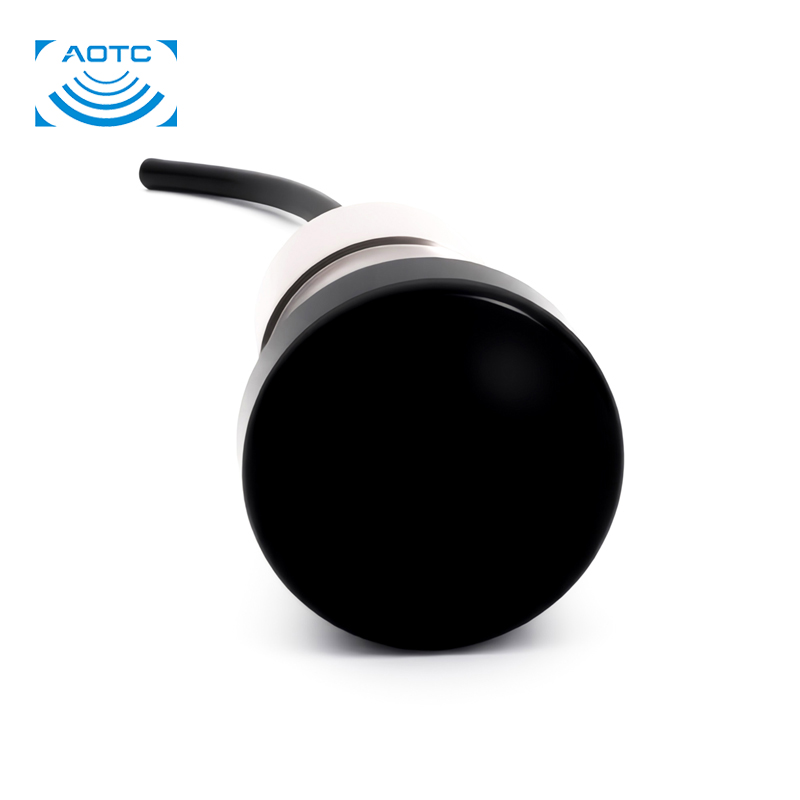

TBP20 Tonpilz Bend Transducer And Array

AOTC’s Model TBP20 transducer is used in applications such as underwater communication and active detection sonar.

● Resonant frequency (fᵣ): 17.5 kHz
● Recommended frequency range: 10 - 30 kHz
● TVR @ fᵣ: 143 dB re 1 μPa/V
● OCVS @ fᵣ: -175 dB re 1 V/μPa
● Beam Pattern: Conical
● Maximum Operating Depth: 300 m
● Cable: 8 mm diameter dual-core shielded polyurethane cable
● Cable length: Standard 10 m, customizable
● Main body material: Stainless steel
● Weight: 1.5 kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
Product Description

Performance Curves (Nominal)

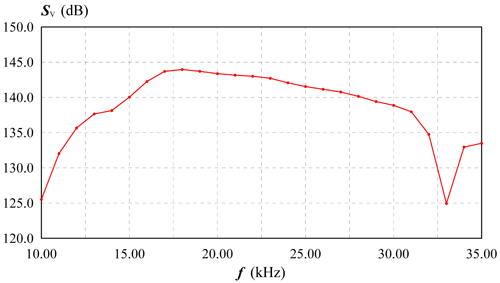

Transmit Curve

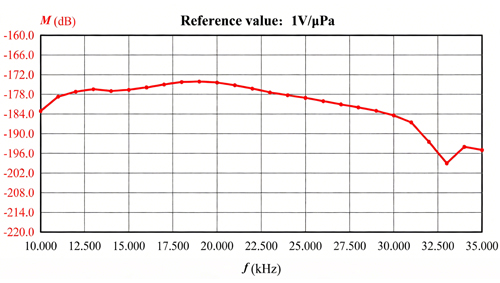

Receive curve

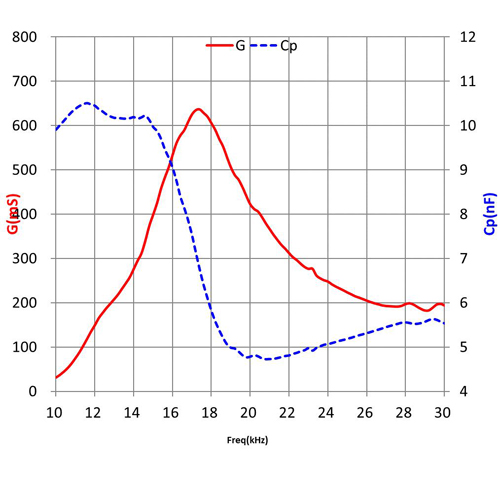

Admittance Plot (G & B) in Water

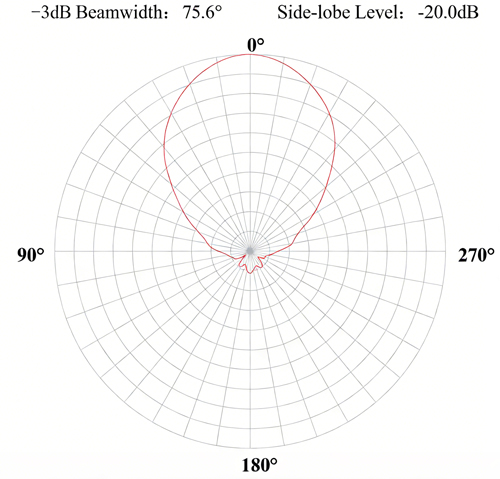

Beam Pattern @20kHz





Product Description

Related Products

TBP30 Tonpilz Bend Transducer And Array
TBP30 Tonpilz Bend Transducer And Array

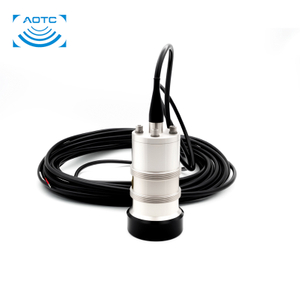

TBP15 Tonpilz Bend Transducer And Array
