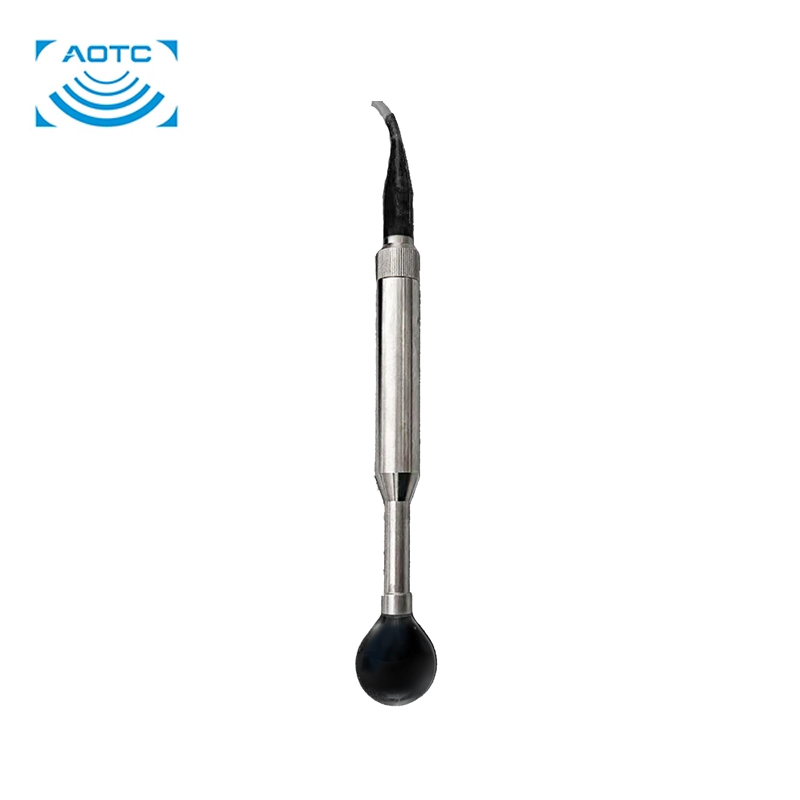

SP60-PreA Spherical Transducer

AOTC’s Model SP60-PreA Hydrophone is designed for underwater acoustic signal acquisition, incorporating a low-noise preamplifier with a gain of 20 dB.

● Resonant Frequency (fᵣ): 60kHz
● Recommended Frequency Range:10Hz~100kHz
● OCVS @ fᵣ:-182dB re 1 V/μPa
● Horizontal Beam Pattern: Omnidirectional
● Vertical Beam Pattern @ fᵣ: θ-3dB ≥300°
● Maximum Operating Depth: 450m
● Cable: Rubber Ø4.2mm 5 Core Screened
● Cable length : 10 m standard/Additional lengths supplied to order
● Main body material: Stainless steel
● Weight: 0.1kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
spherical acoustic transducer
Product Description

Performance Curves (Nominal)

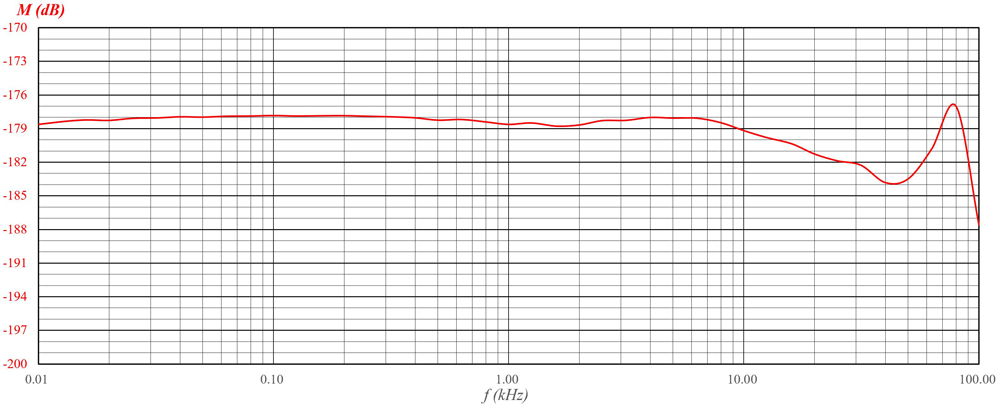

Receive Curve



Wire list


Cable core

Function

Note

red

Supply Voltage(VDC)

+5VDC to +12VDC

white

GND

Supply Voltage and Output

brown

Output

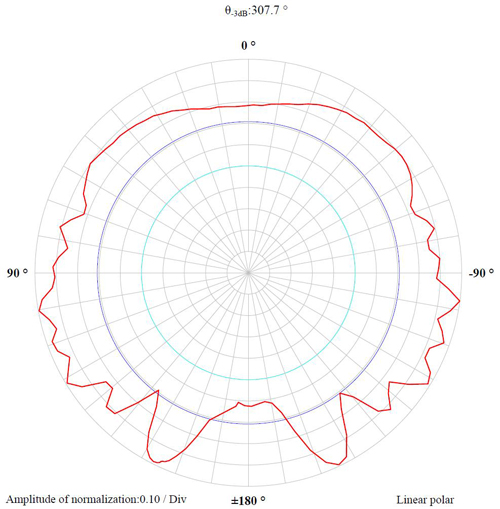

Vertical  Beam Pattern @60kHz
