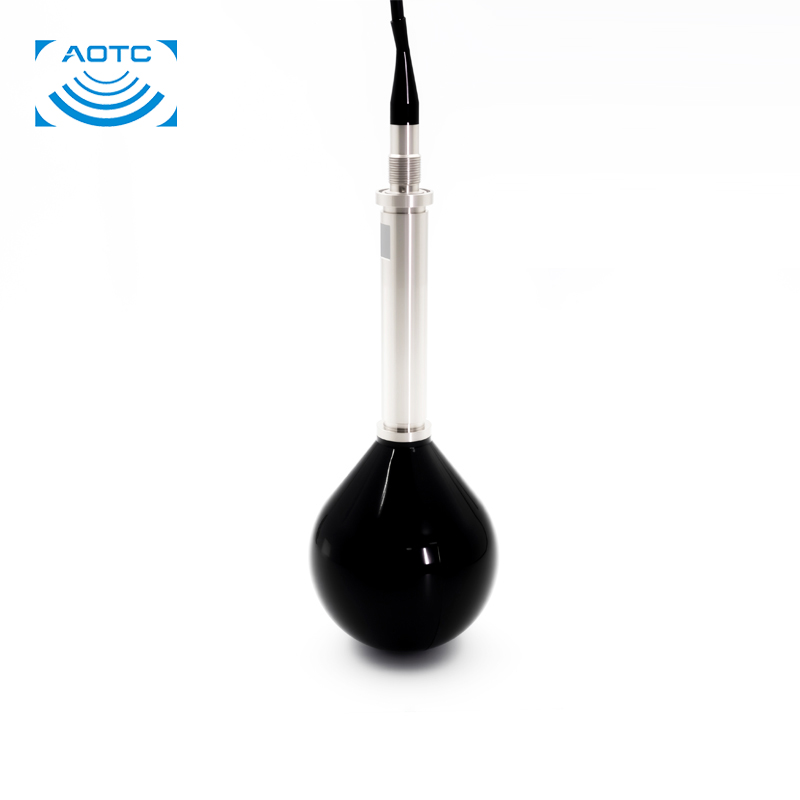

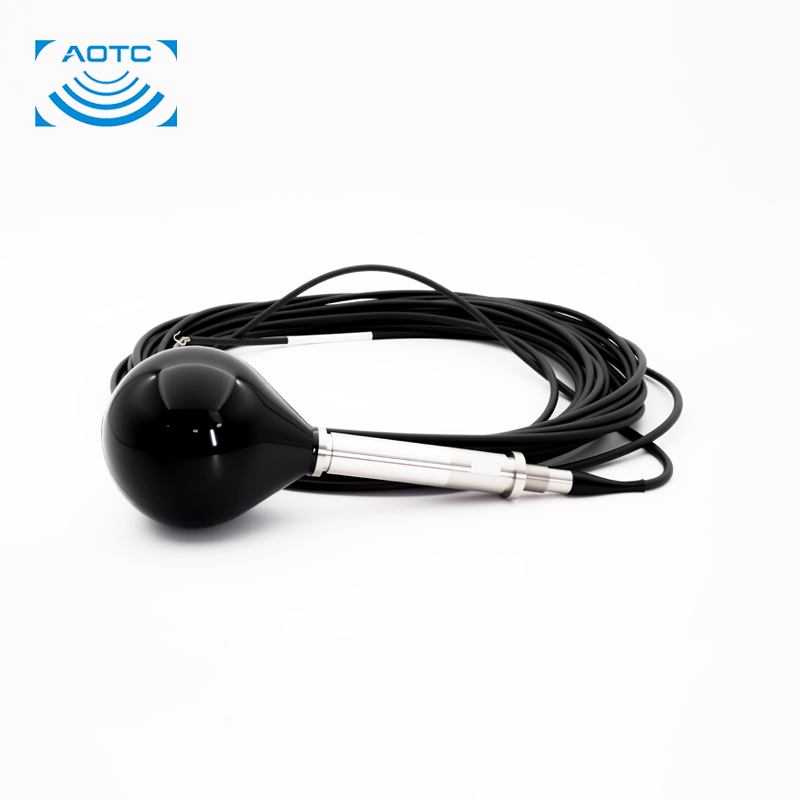

SP23 Spherical Transducer

AOTC’s Model SP23 transducer is used in underwater acoustic communication, underwater acoustic source.

● Resonant Frequency (fᵣ): 22kHz
● Recommended Frequency Range:15~30kHz
● TVR @fᵣ: 146dB re 1 μPa•m/V
● OCVS @ fᵣ:-191dB re 1 V/ μPa
● Horizontal Beam Pattern: Omnidirectional
● Vertical Beam Pattern : ≥300°
● Maximum Operating Depth: 300m
● Interface Type: Twisted pair
● Cable length: 10m
● Main body material: SS
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
spherical sonar transducer
Product Description

Performance Curves (Nominal)

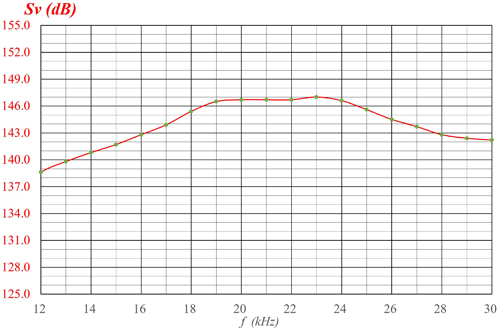

Transmit Curve

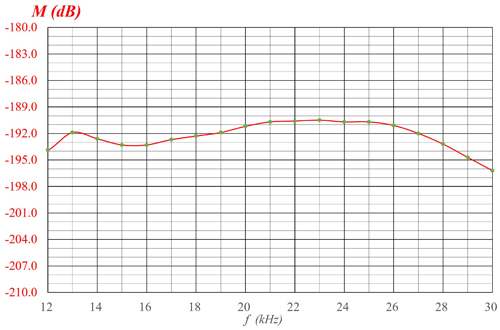

Receive Curve

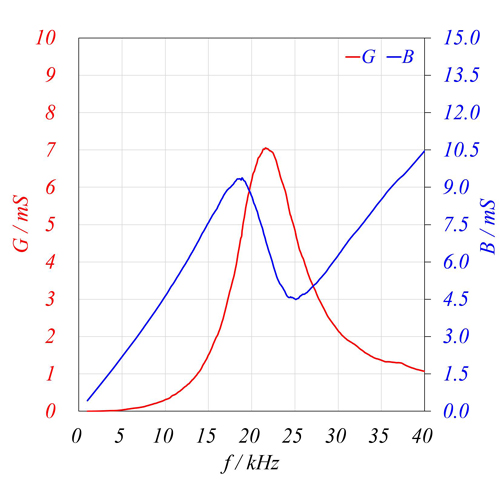

Admittance Plot (G & B) in Water

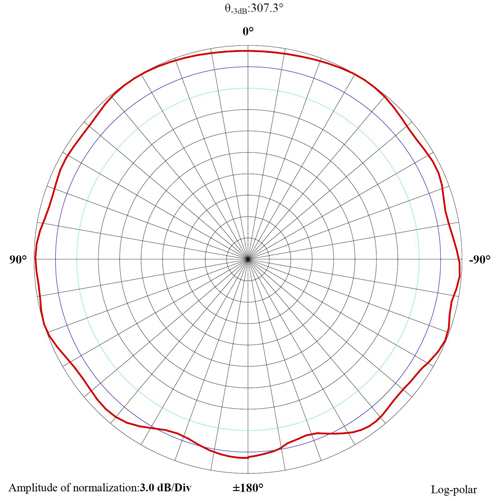

Vertical  Beam Pattern @23.0kHz





Product Description

Related Products

SP30-F Spherical Transducer
SP30-F Spherical Transducer
SP60-PreA Spherical Transducer
SP60-PreA Spherical Transducer

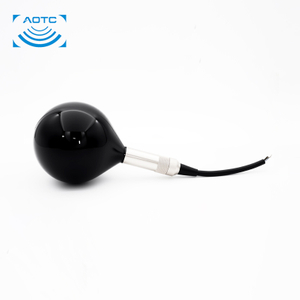

SP15 Spherical Transducer
