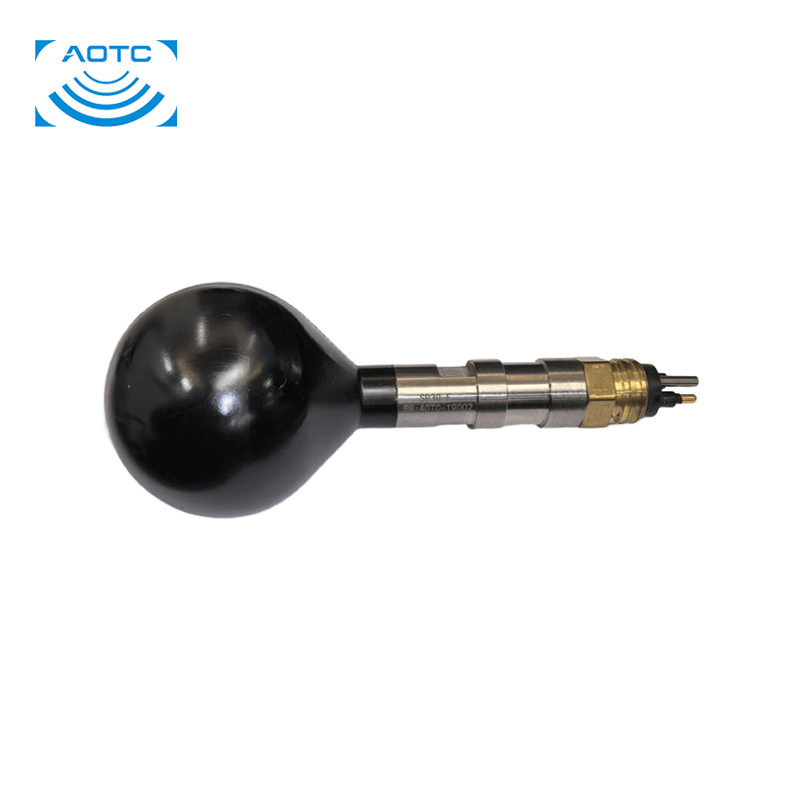

SP30-F Spherical Transducer

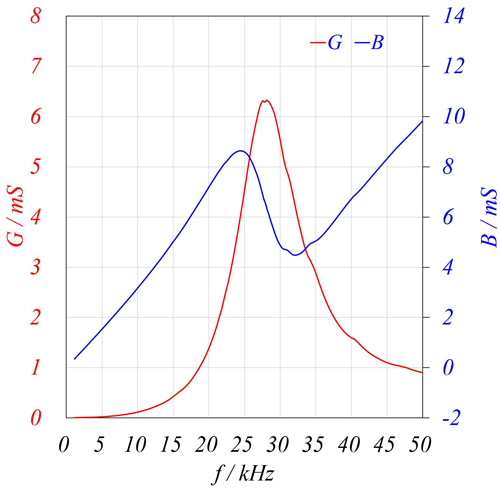

● Resonant frequency (fᵣ): 28 kHz
● Static capacitance (C₀): 48 nF

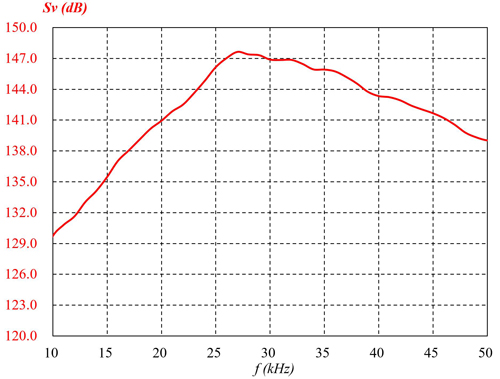

● TVR @ fr: ≥ 147 dB re 1 μPa•m/V
● Source level @ fᵣ: ≥ 200 dB re 1 μPa•m

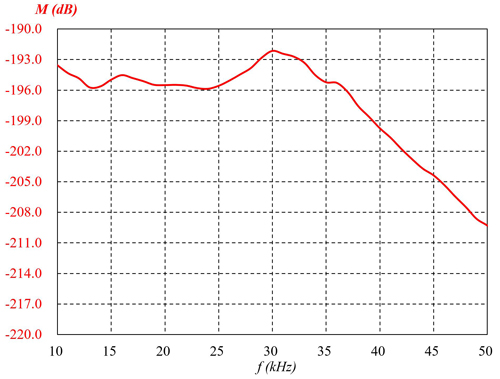

● OCVS @ fr: ≥ -194 dB re 1 V/μPa

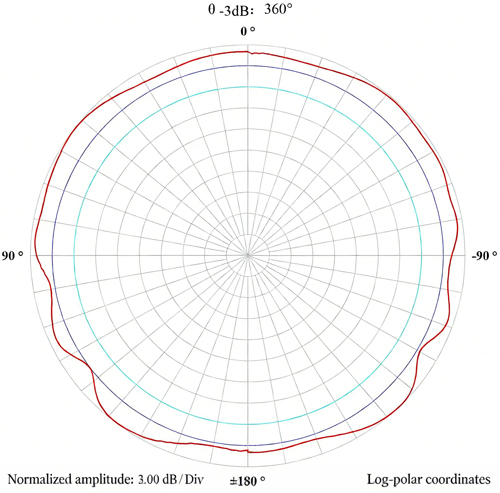

● Vertical Beam pattern θ-3dB: 360°
● Maximum operating depth: 300 m

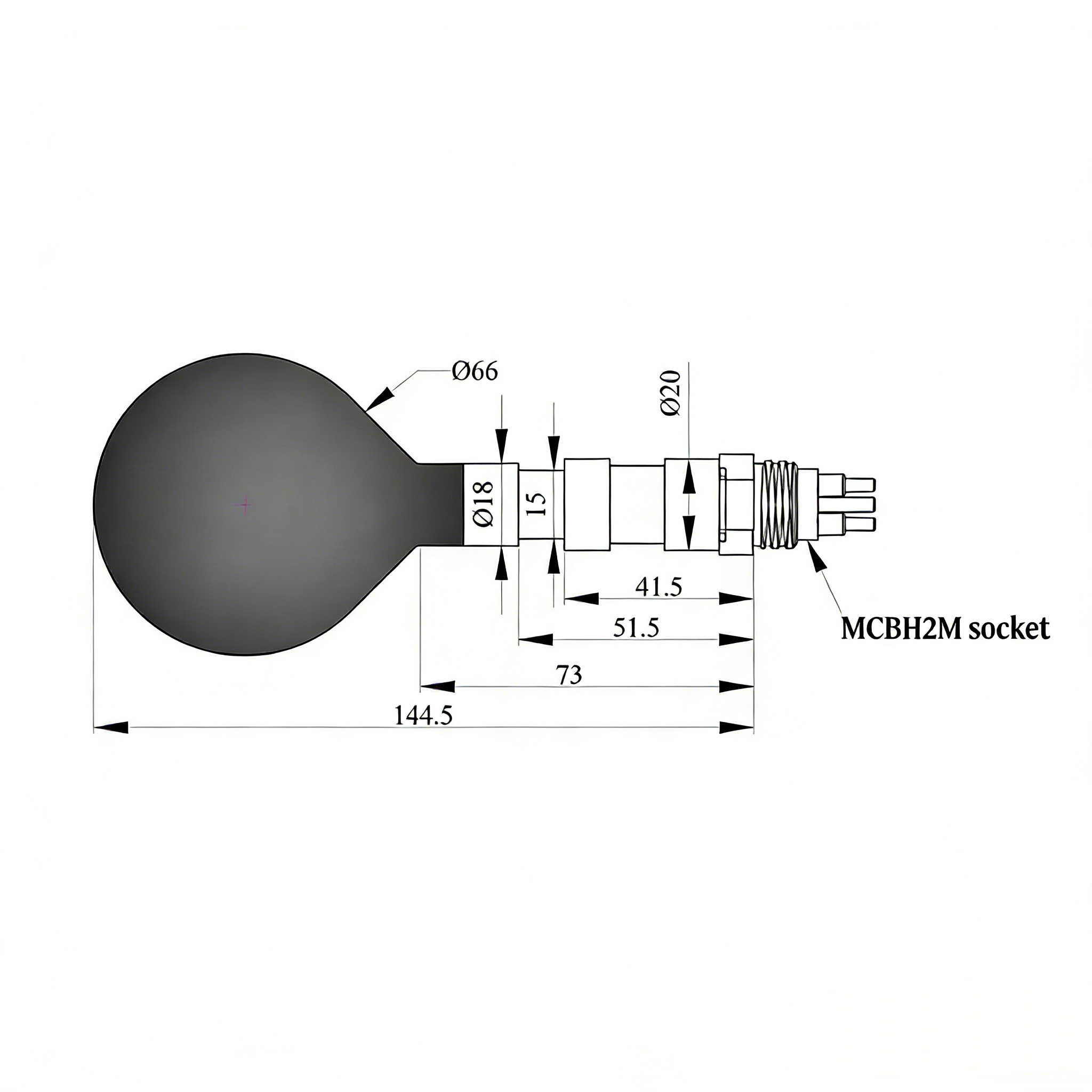

● Interface type: MCBH2M
● Main material: Stainless steel
● Weight: 350 g
