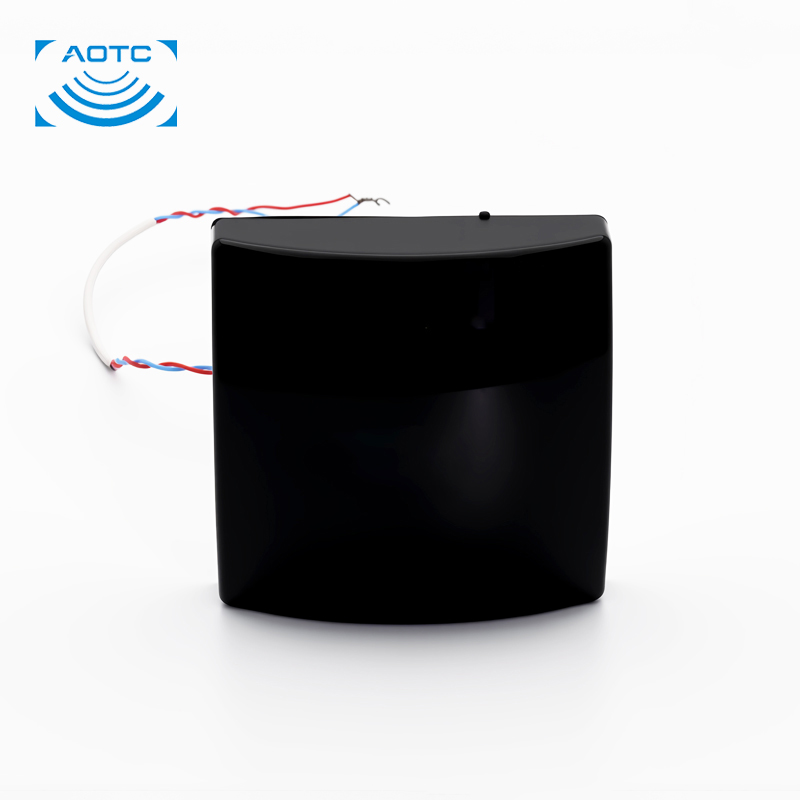

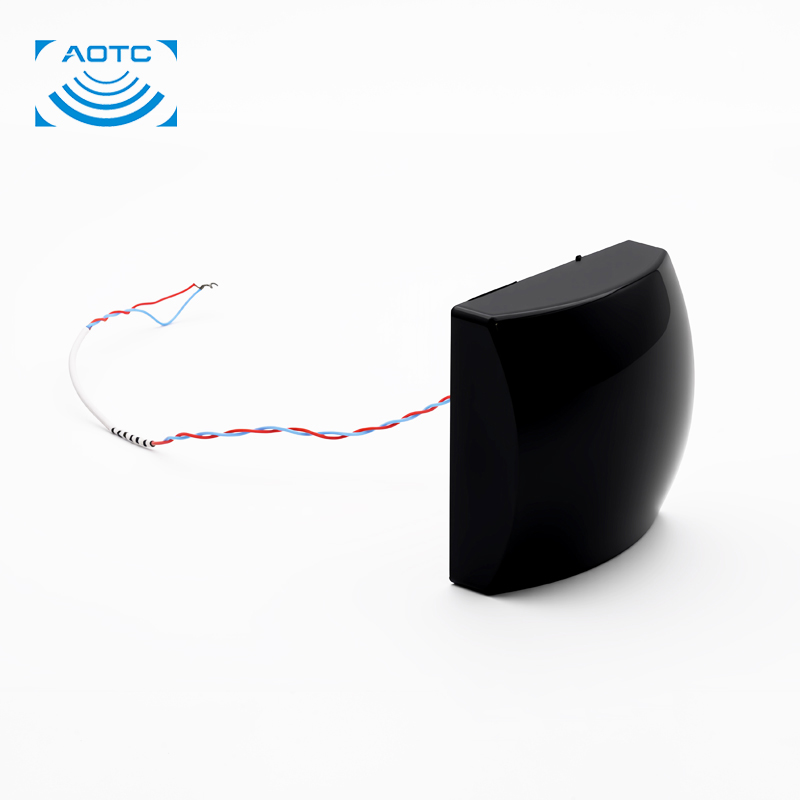

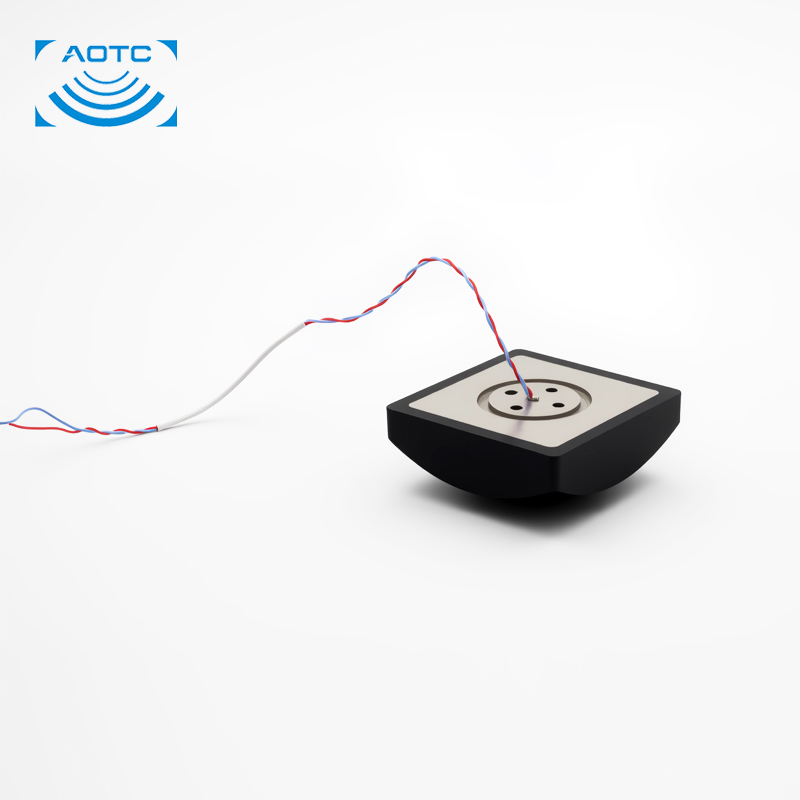

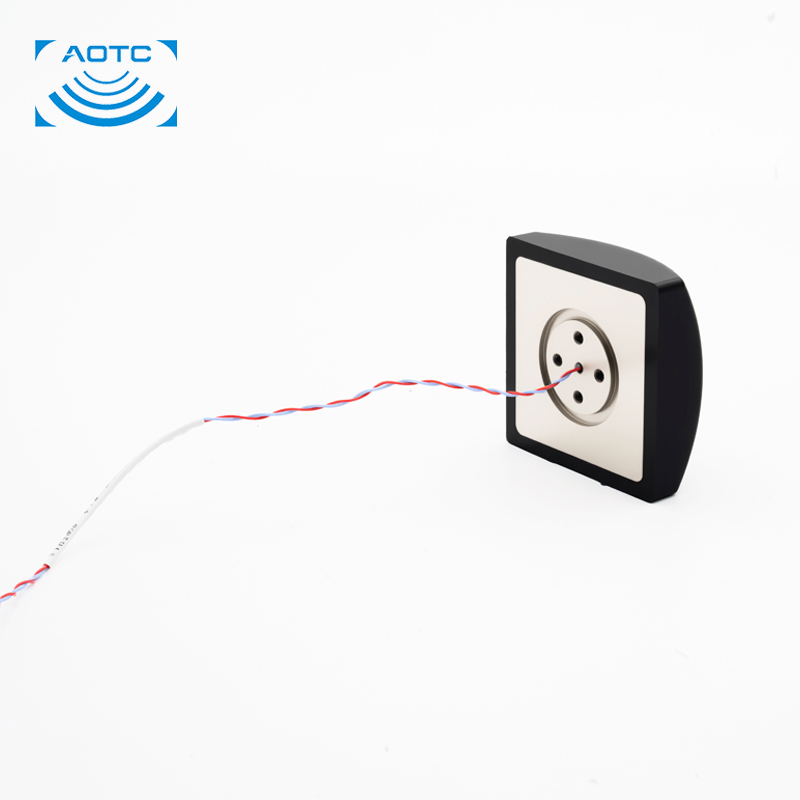

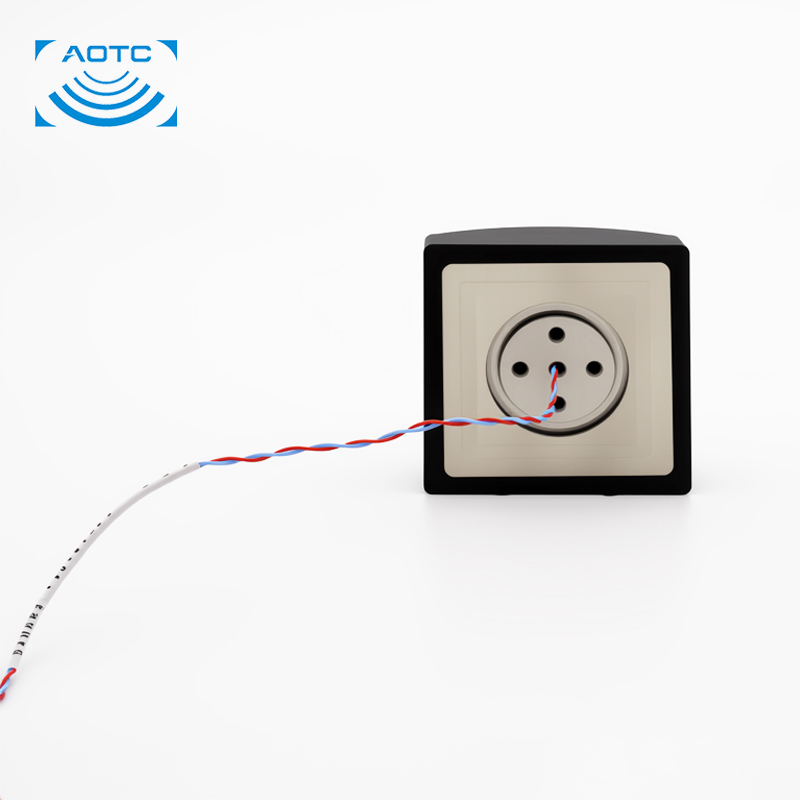

PSP600-45A45 Spherical Cap-Shaped High Frequency Transducer

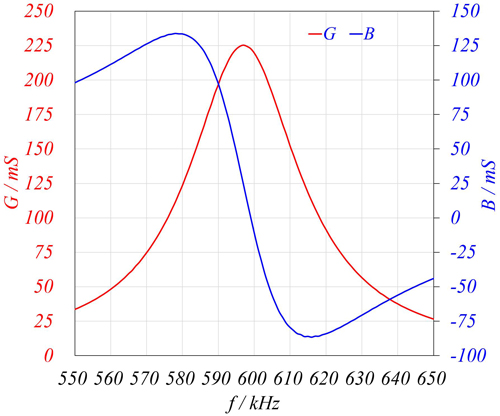

● Resonant frequency (fᵣ): 597 kHz
● Static capacitance (C₀): 12 nF
● Recommended frequency range: 580 - 620 kHz
• TVR @ 600 kHz: 172 dB re 1 μPa•m/V
● Source level @ 600 kHz: 211 dB re 1 μPa•m

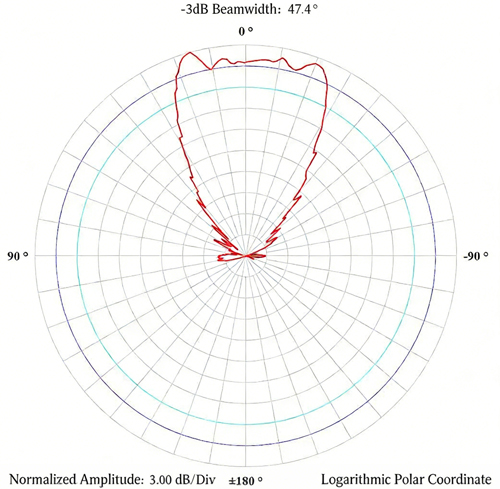

● Horizontal Beam Pattern @ 600 kHz: ≥ 45°

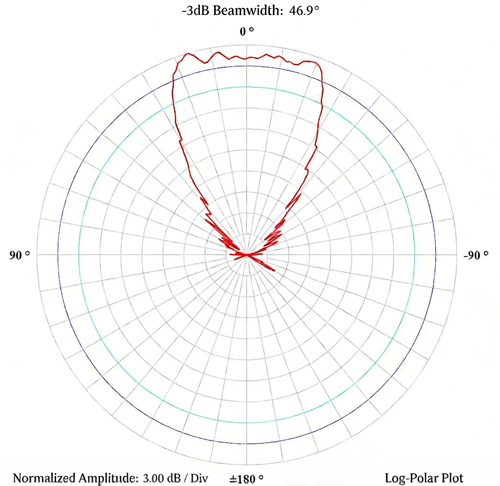

● Vertical Beam Pattern @ 600 kHz: ≥ 45°
● Maximum operating depth: 500 m
● Interface type: Twisted-pair short cable
● Main body material: Aluminum alloy
● Weight: 150 g
