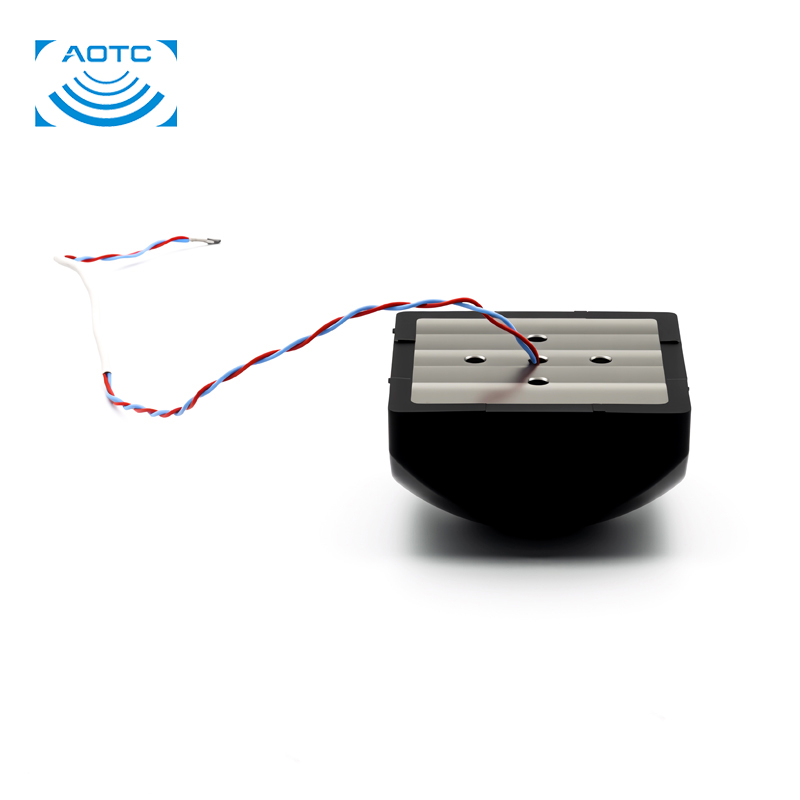

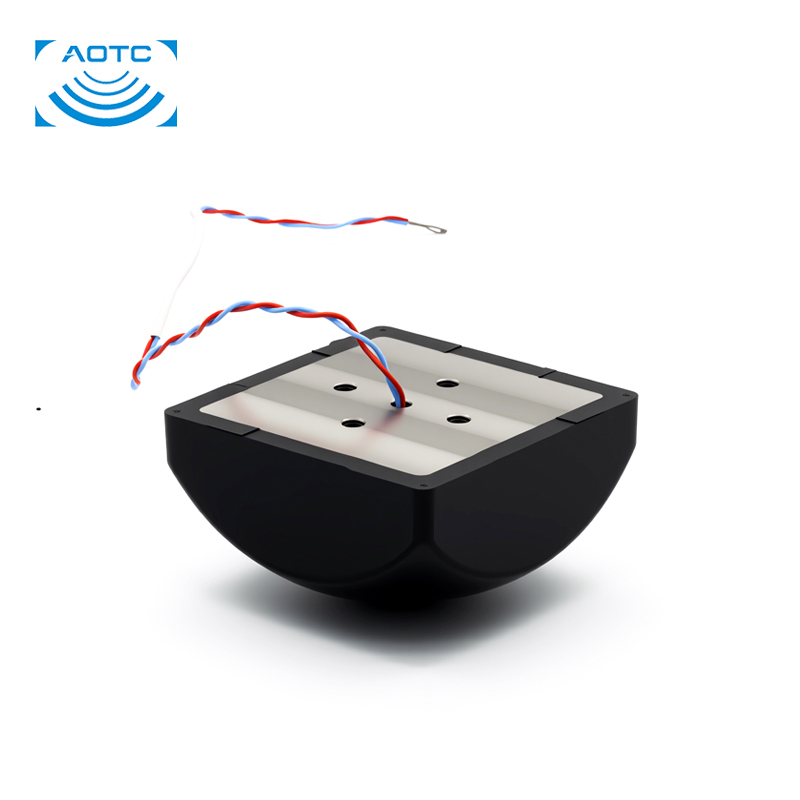

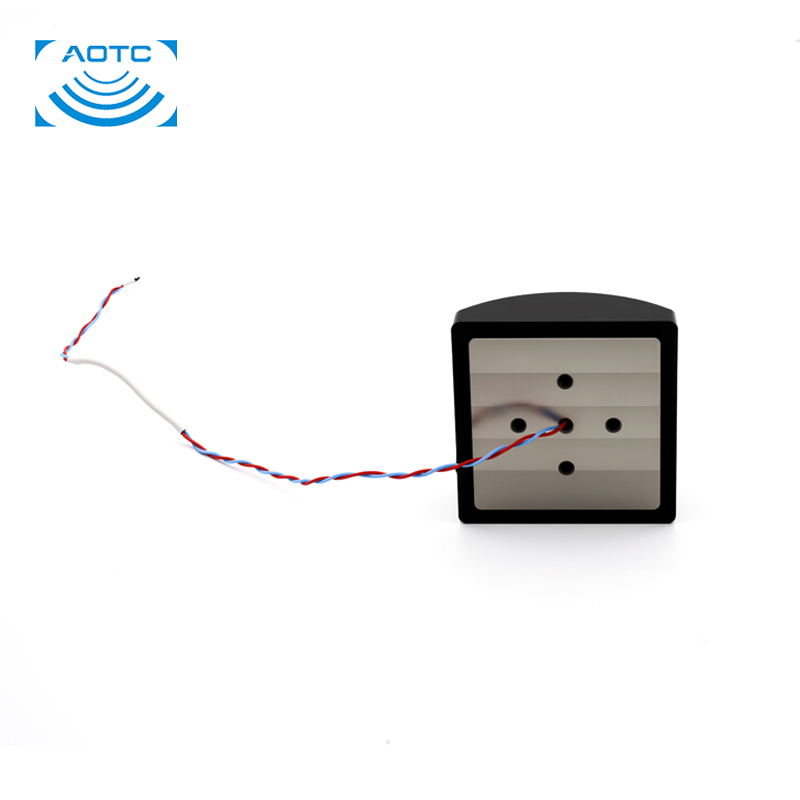

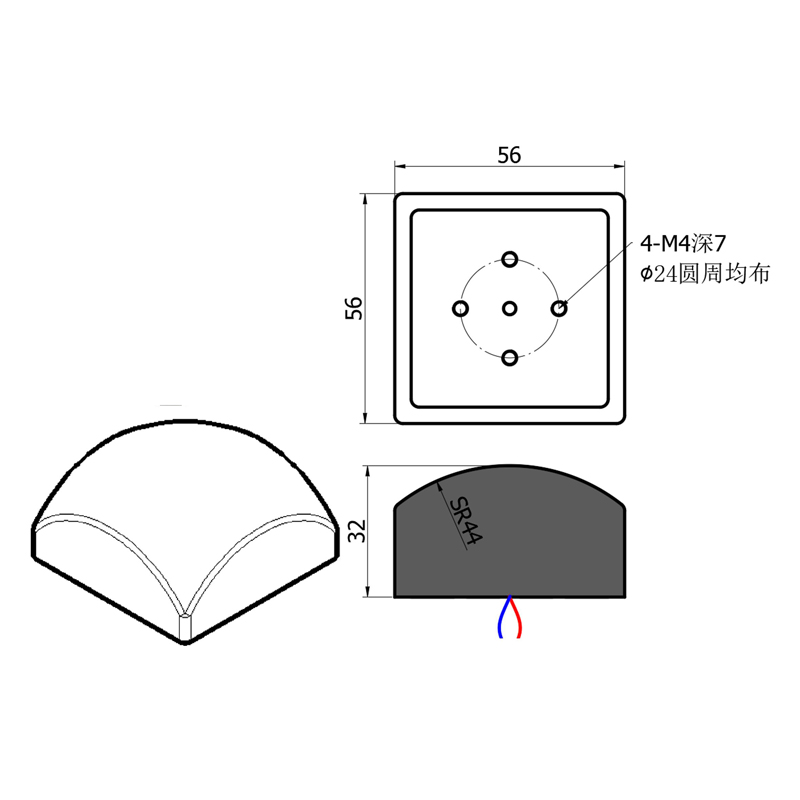

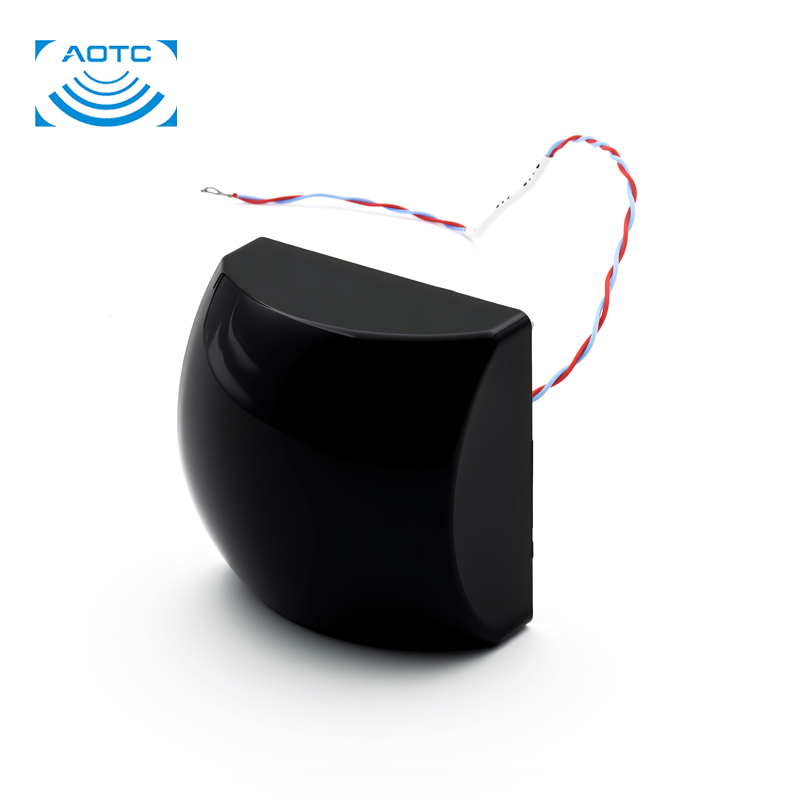

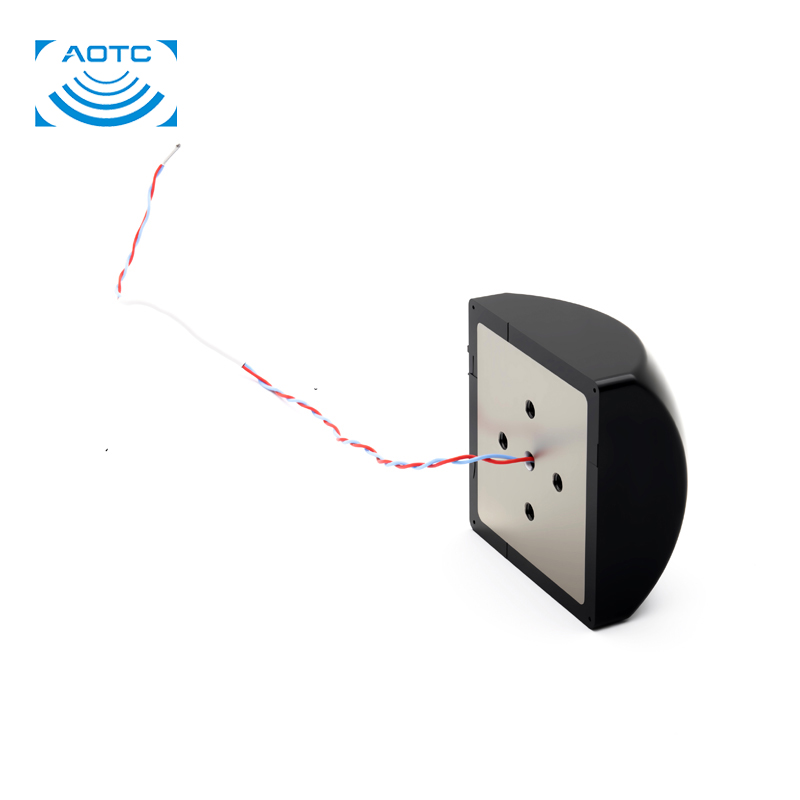

PSP300-50A50 Spherical Cap-Shaped High Frequency Transducer

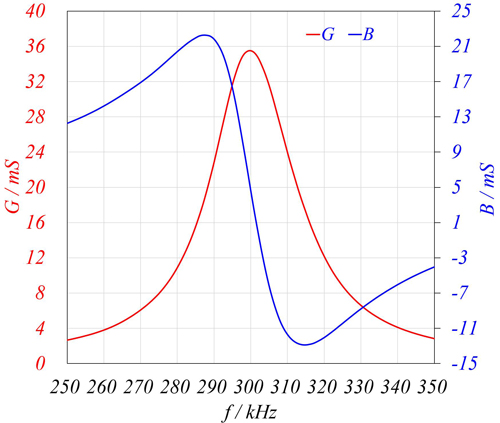

● Resonant frequency (fᵣ): 300 kHz
● Static capacitance (C₀): 5.5 nF
● Recommended frequency range: 290 - 310 kHz

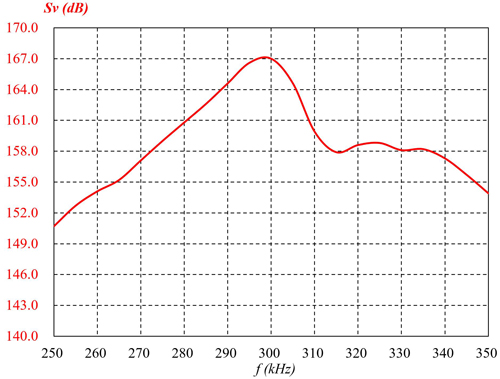

● TVR @ fᵣ: 166 dB re 1 μPa•m/V
● Source level @ fᵣ: 208 dB re 1 μPa•m

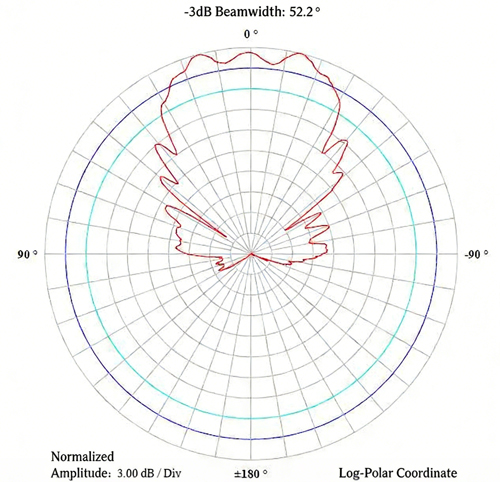

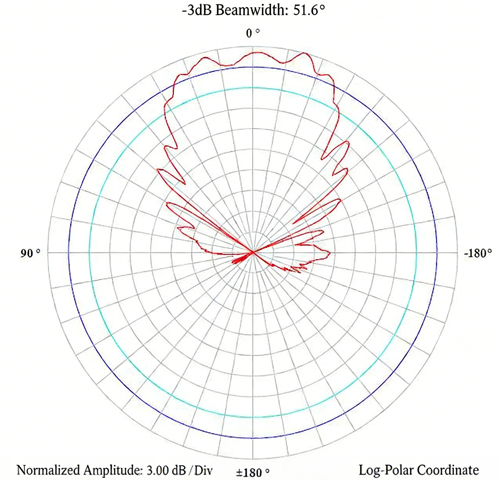

● Horizontal Beam Pattern @ fᵣ: ≥ 50°
● Vertical Beam Pattern @ fᵣ: ≥ 50°
● Maximum operating depth: 50 m
● Interface type: Twisted loose wires
● Main body material: Titanium alloy
● Weight: 180 g
