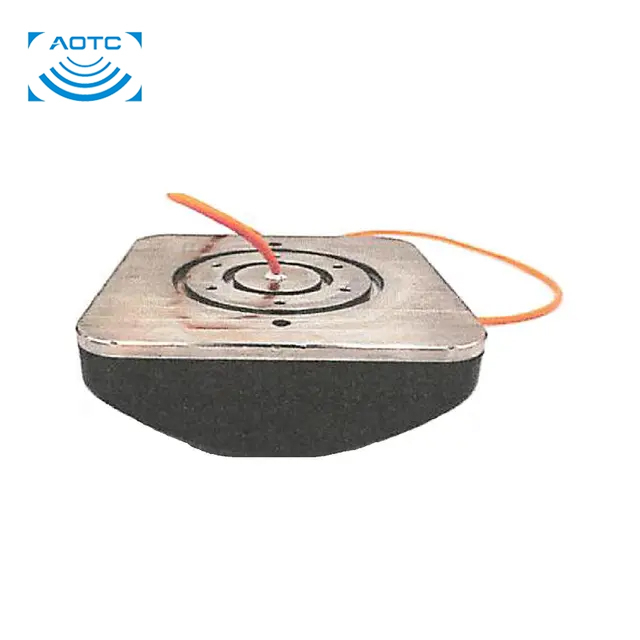

PSP375-50A50 Spherical Cap-Shaped High Frequency Transducer

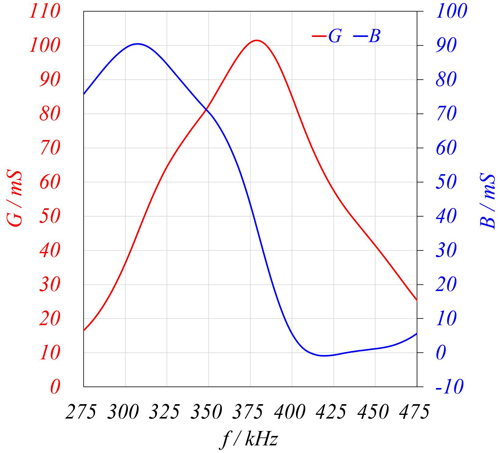

● Resonant frequency (fᵣ)： 378 kHz
● Static capacitance (C₀)： 32 nF
● Recommended frequency range： 330-410kHz

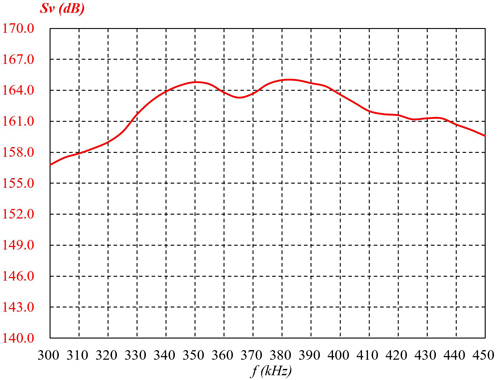

● TVR @375kHz： 164 dB re1μPa•m/V
● Source level @375kHz： 209dB re1μPa•m

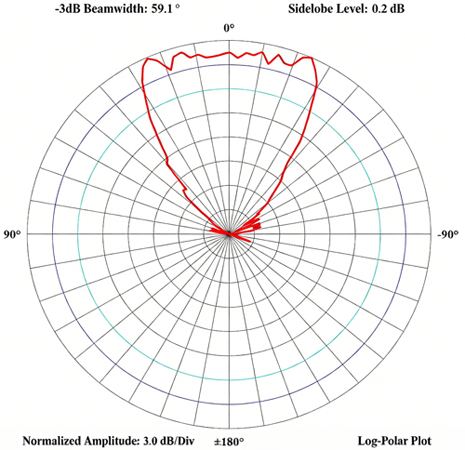

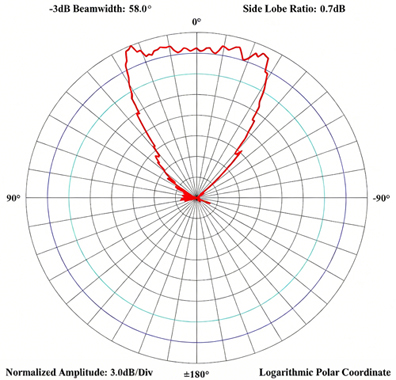

● Horizontal Beam Pattern @375kHz： ≥50°
● Vertical Beam Pattern @375kHz： ≥50°
● Maximum operating depth： 50m
● Interface type： Twisted loose wires
● Main body material： Aluminum Alloy
● Weight： 500g
