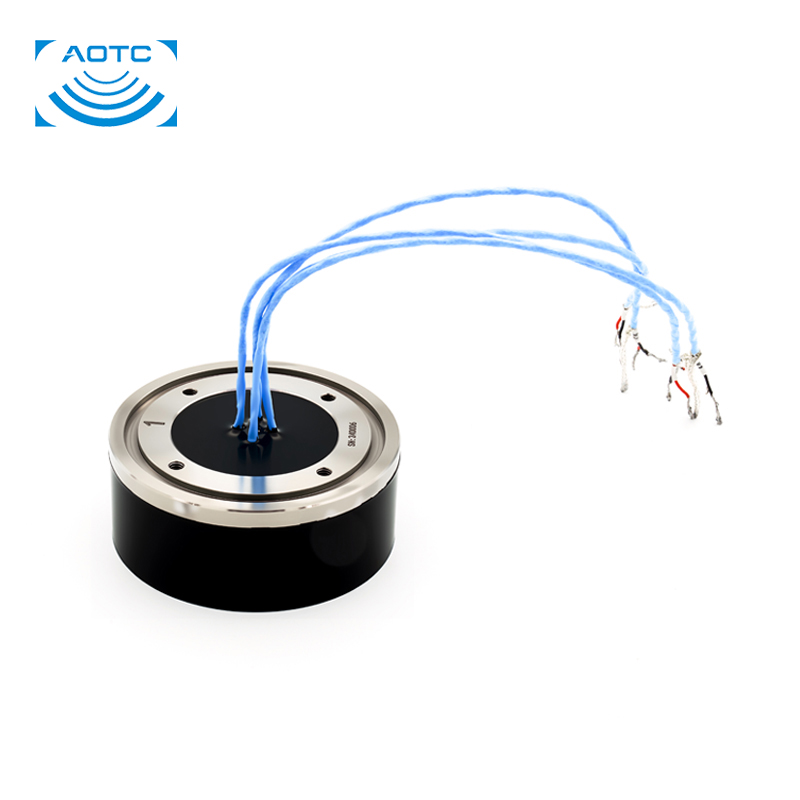

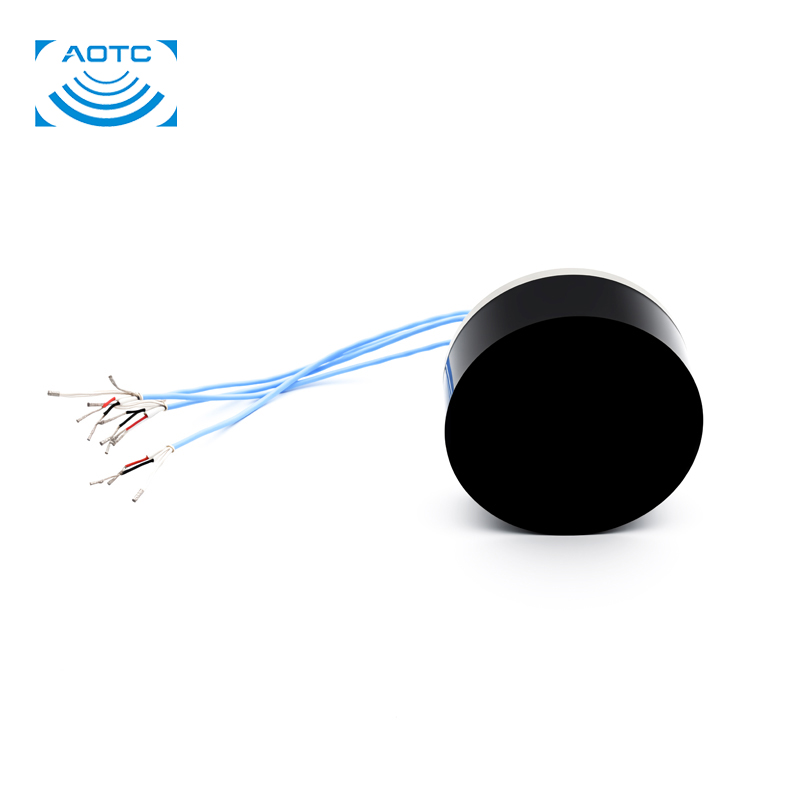

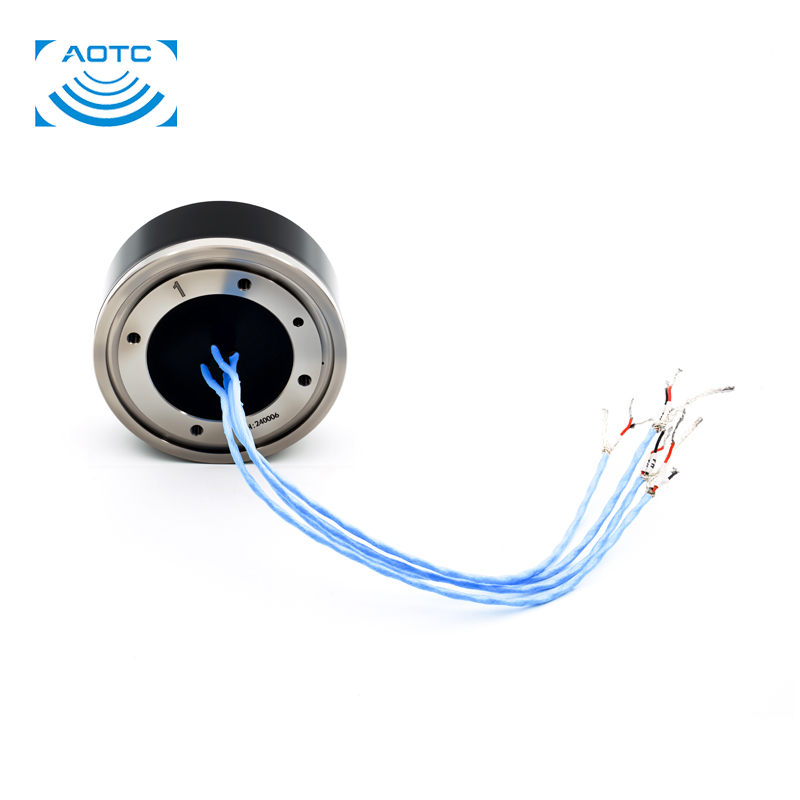

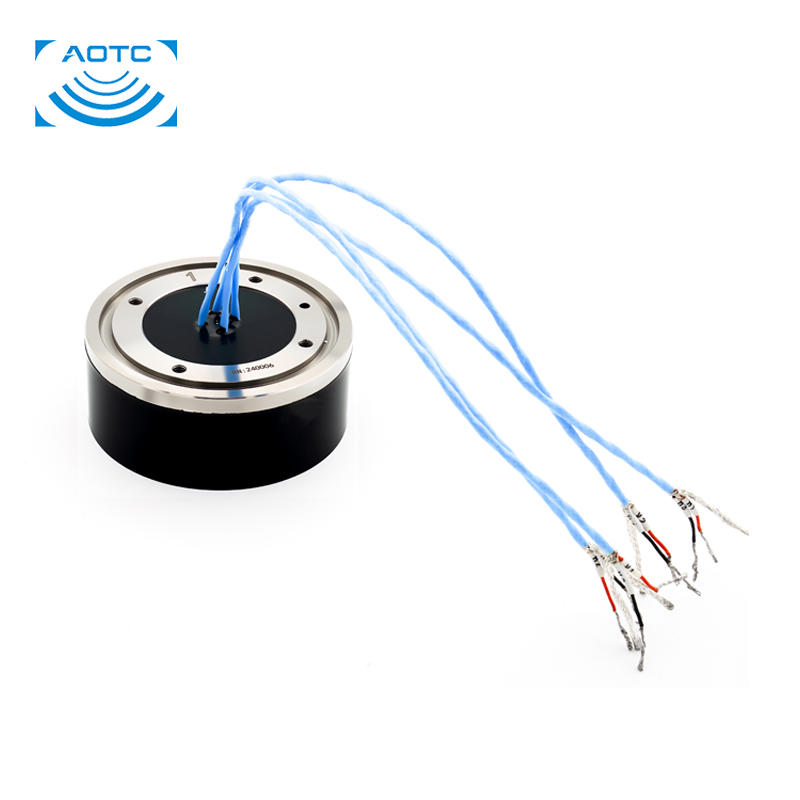

PA600 Planar Phased Array Transducer

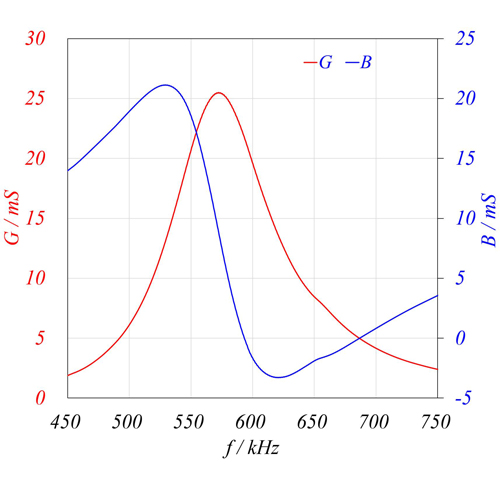

● Resonant frequency (fᵣ): 600 kHz ± 50 kHz
● Array static capacitance (C₀): 3.5 nF
● Operating frequency (fᵥ): 600 kHz

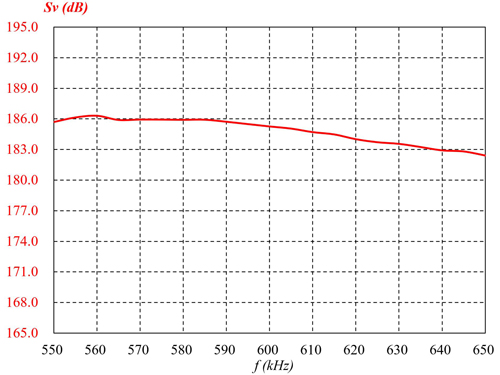

● TVR(array) @ fᵥ: 185 dB re 1 μPa•m/V

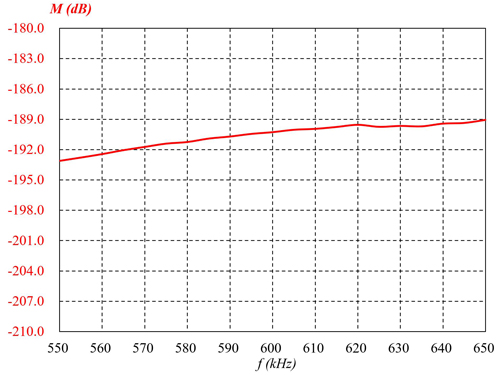

● OCVS(array) @ fᵥ: -191 dB re 1 V/μPa
● Source level (array) @ fᵥ: ≥ 220 dB re 1 μPa•m

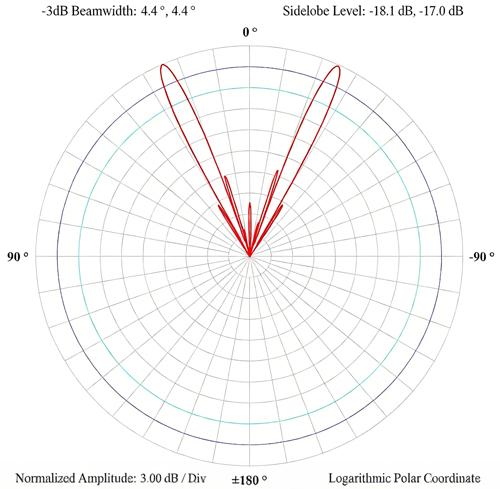

● Phased beamwidth @ fᵥ: 4.0° ± 0.5°
● Phased steering angle @ fᵥ: 25.0° ± 1.0°
● Maximum operating depth: 200 m

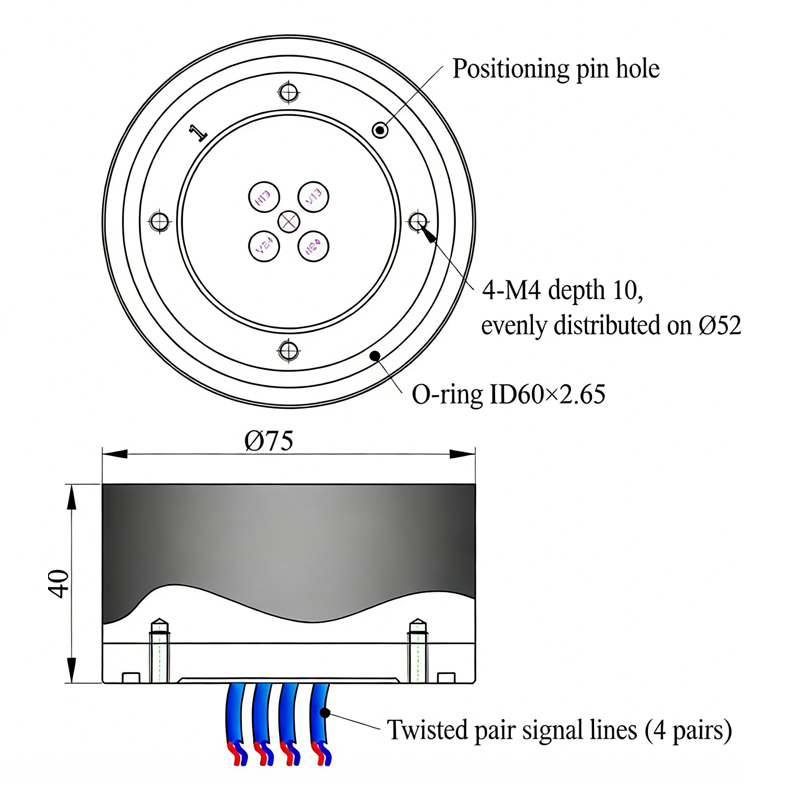

● Interface type: Twisted-pair shielded cable
● Main body material: Stainless steel
● Weight: 350 g
