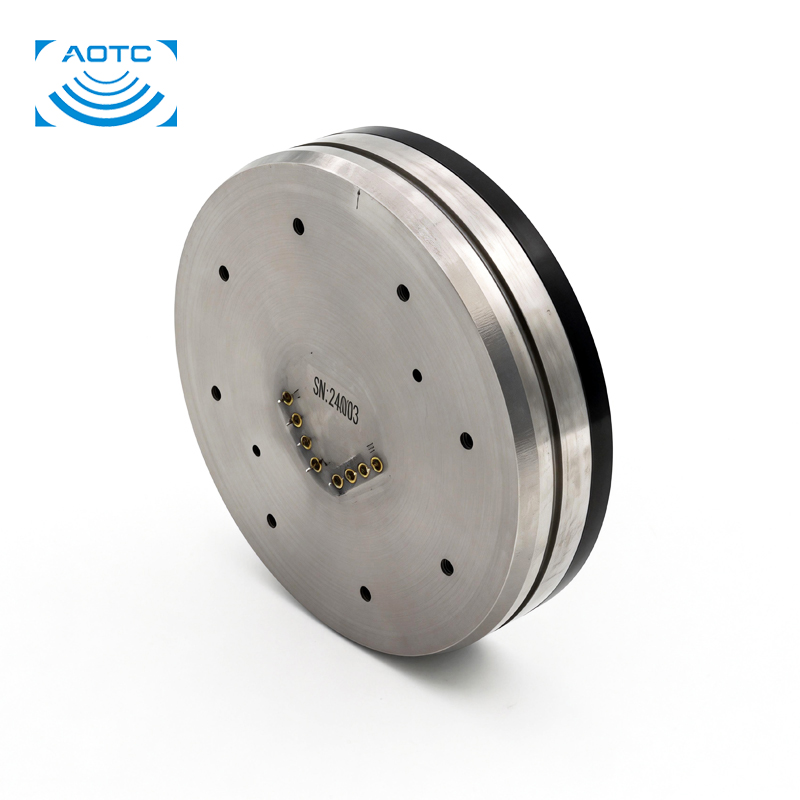

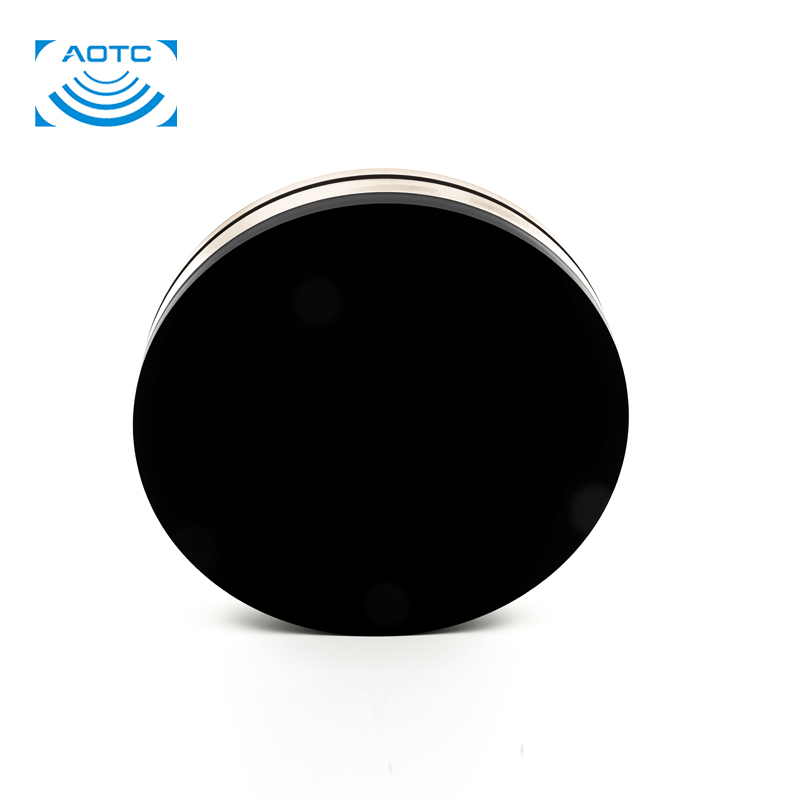

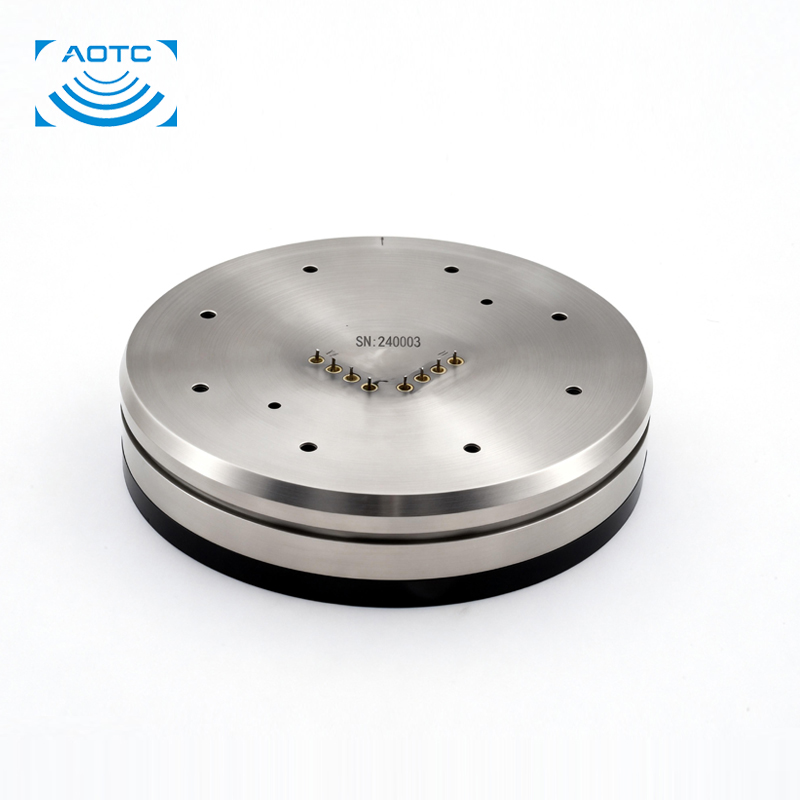

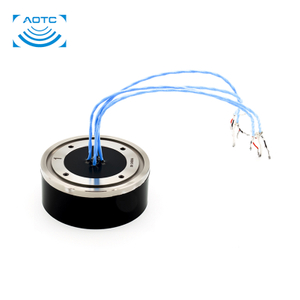

PA300 Planar Phased Array Transducer

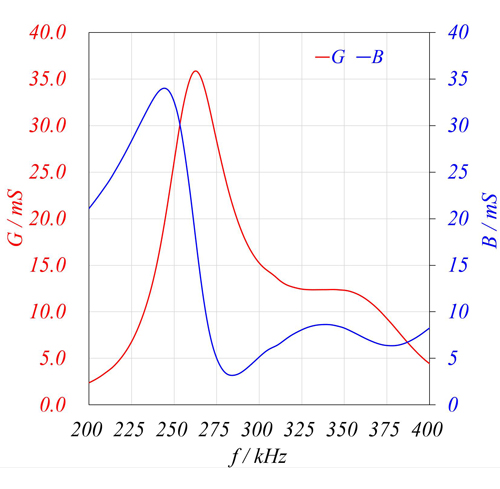

● Resonant frequency (fᵣ): 300 kHz ± 50 kHz
● Array Static capacitance (C₀): 3.5 nF
● Operating frequency (fᵥ): 300 kHz

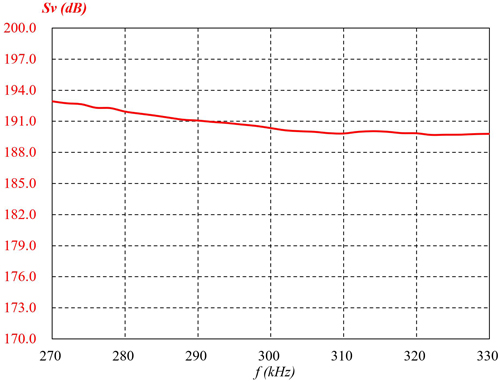

● TVR (Array)@ fᵥ: 190 dB re 1 μPa•m/V
● OCVS (Array) @ fᵥ: -182 dB re 1 V/μPa
● Source level (Array)@ fᵥ: ≥ 230 dB re 1 μPa•m

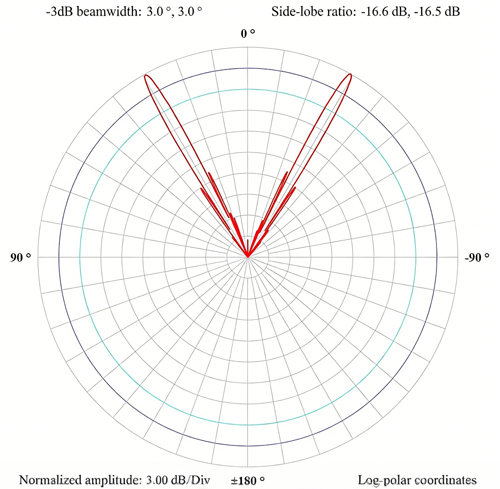

● Phased Beamwidth @ fᵥ: 3.0° ± 0.5°
● Phased Steering angle @ fᵥ: 30.0° ± 1.0°
● Maximum operating depth: 2000 m
● Interface type: Glass insulator
● Main body material: Stainless steel
● Weight: 1.4 kg
