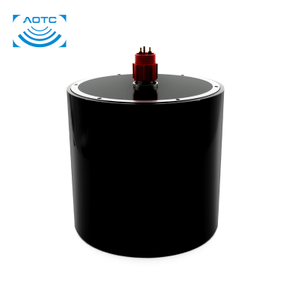

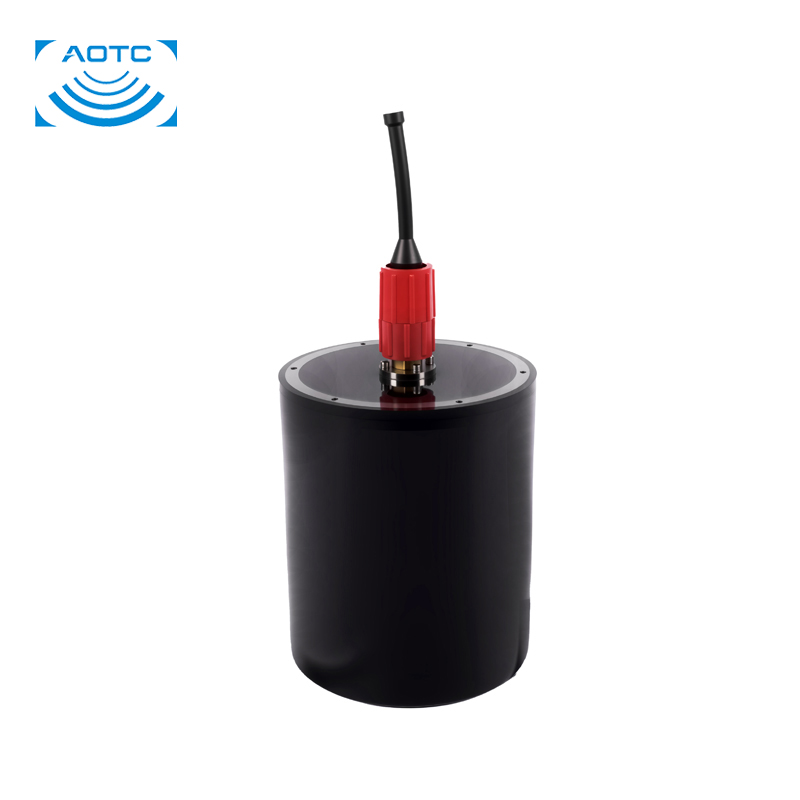

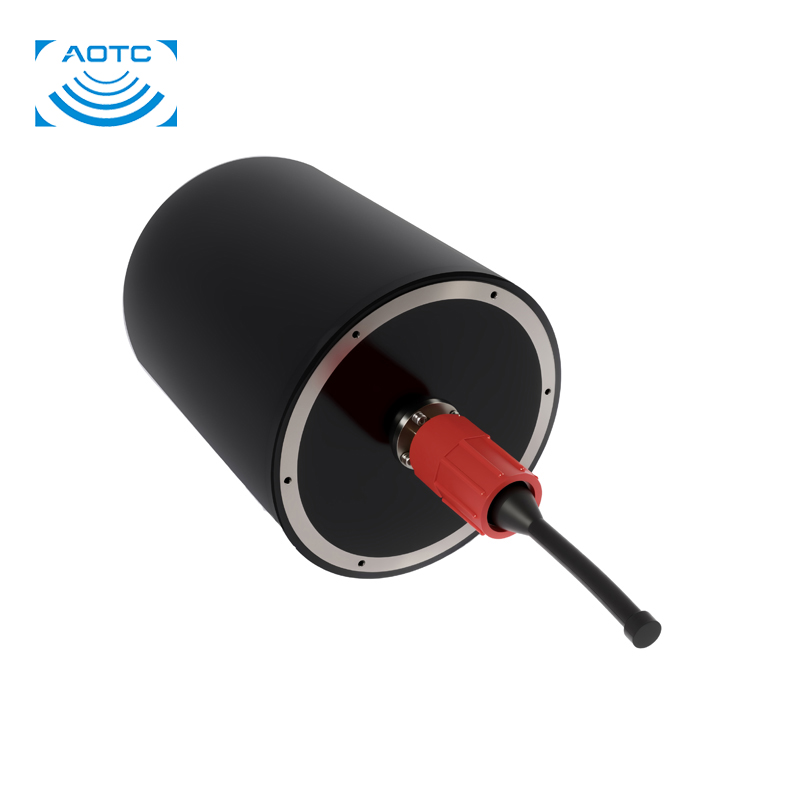

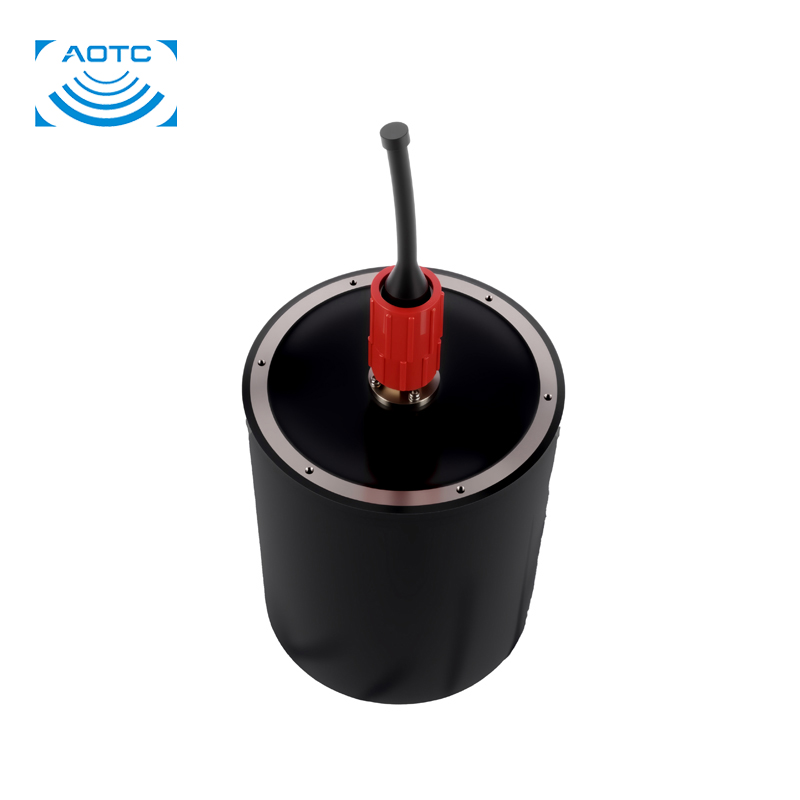

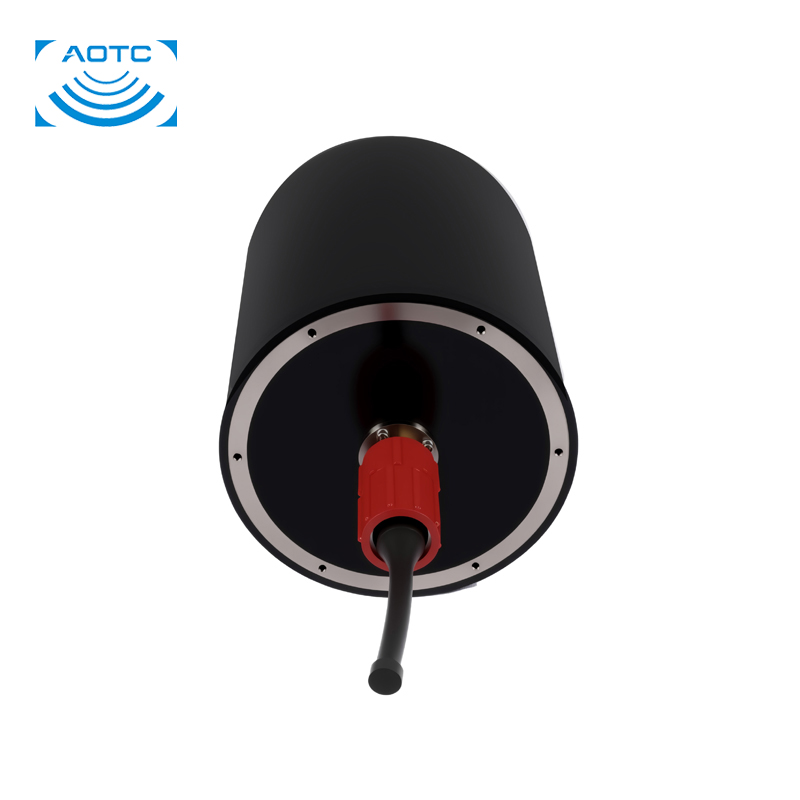

PWBT5-9-i-2U Flooded Ring Transducer

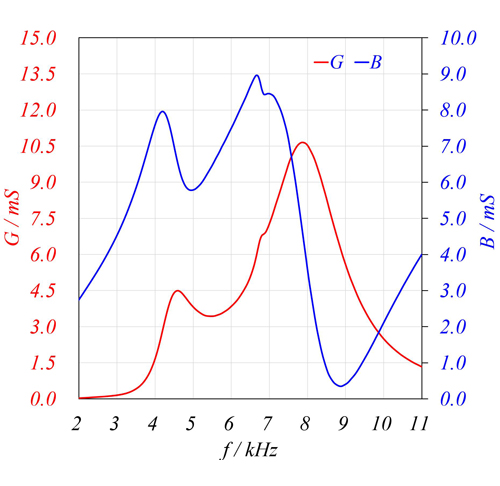

● Resonant Frequency (fᵣ): 7.9kHz
● Static capacitance : 205nF
● Recommended frequency range:4.5~10.0kHz

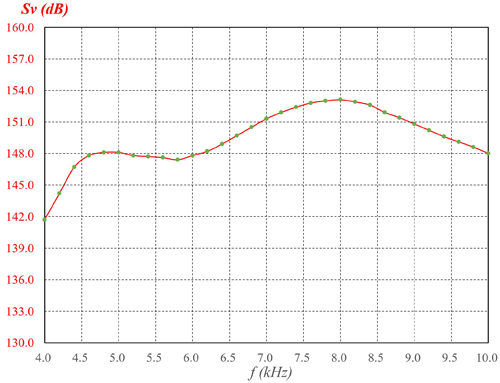

● TVR @fᵣ :152.6dB re 1 μPa•m/V

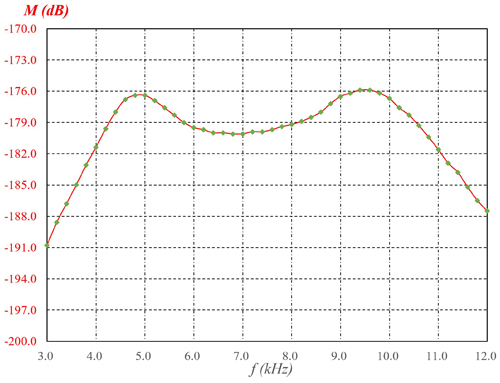

● OCVS @fᵣ :-179.1dB re 1 V/μPa
● Source Level @ fᵣ :210dB re 1μPa•m

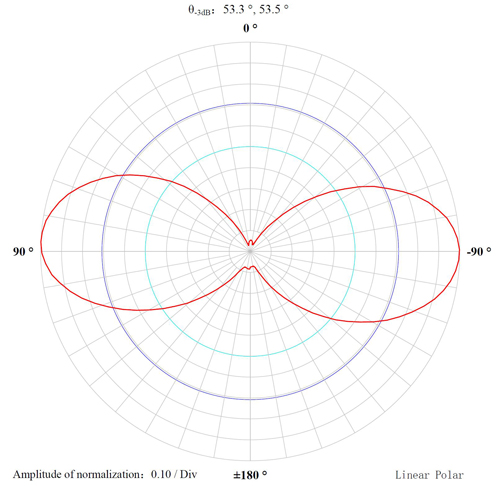

● Horizontal Beam Pattern: Omnidirectional
● Vertical Beam Pattern: ∞
● Maximum Operating Depth:6000m

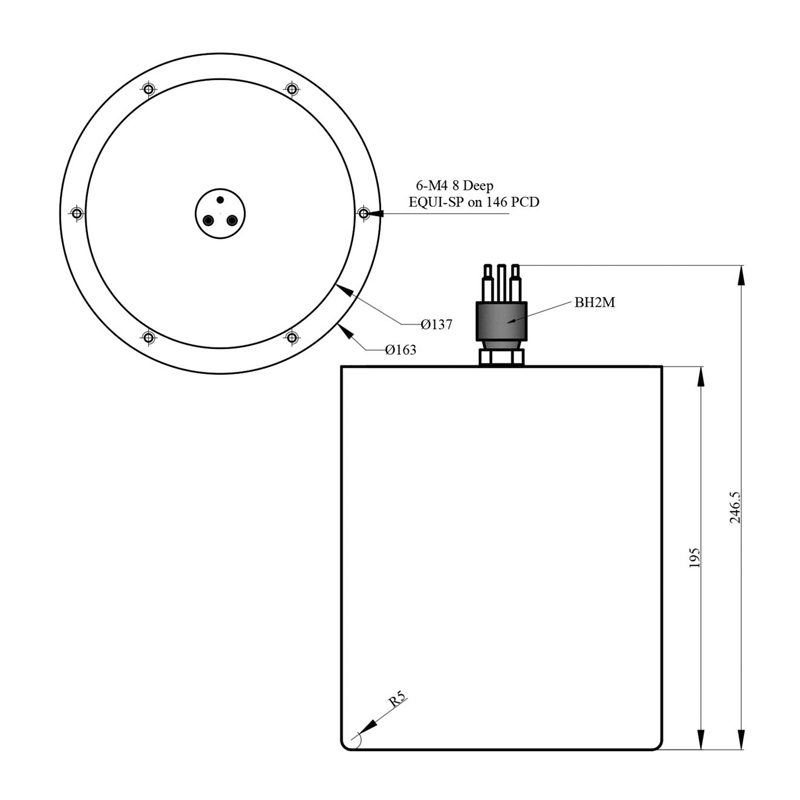

● Interface Type :BH2M
● Main material: Titanium
● Weight: 9.4kg
