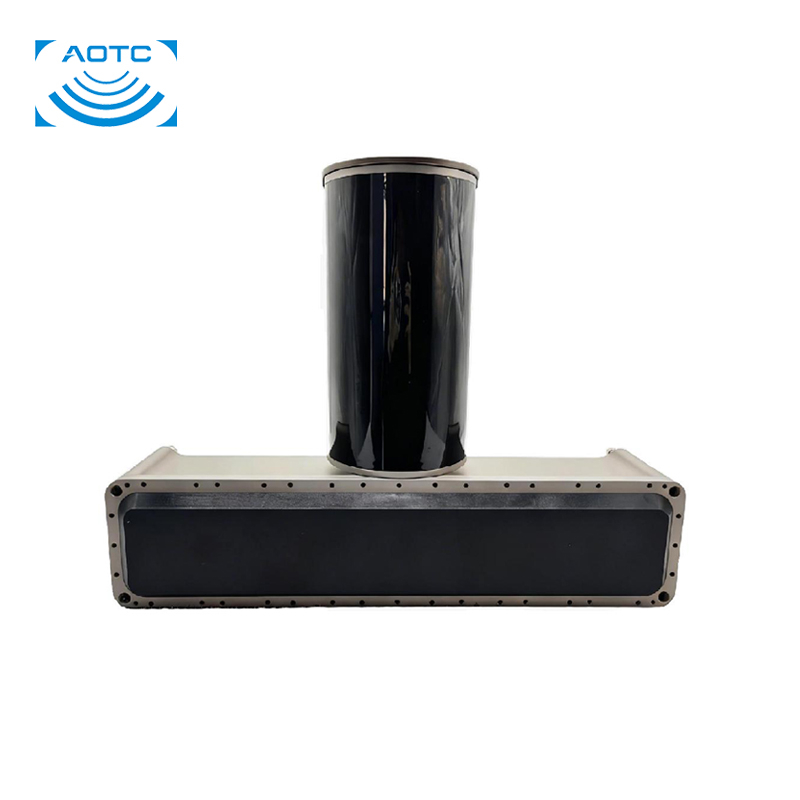

MS8240 Multibeam Transducer And Array

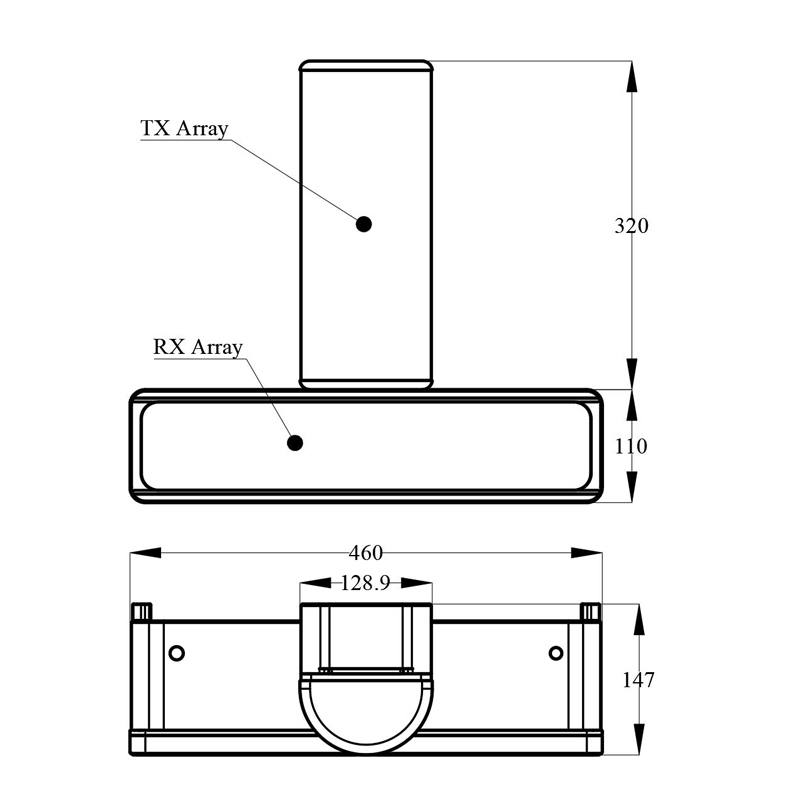

AOTC’s Model MS8240 multi-beam transducer consists of two parts: a transmitting array transducer and a receiving array transducer. The receiving array comprises a 200 kHz narrowband receiving array and a 200-400 kHz broadband receiving array.

● Parameters:Transmitting array / Narrowband receiving array / Broadband receiving array
● Operating frequency band：200~400kHz / 190kHz-210kHz / 200~400kHz
● Number of channels：6+1 / 118 / 256
● OCVS： - / ≥-195dB @200kHz / ≥-195dB @400kHz

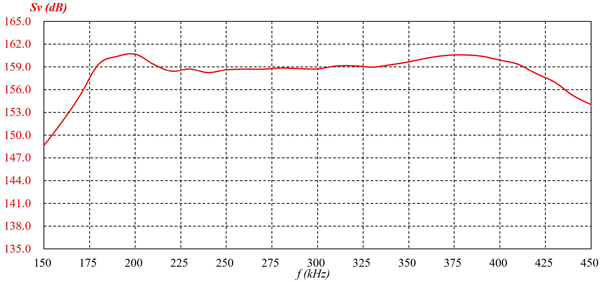

● TRV：≥155dB / - / -

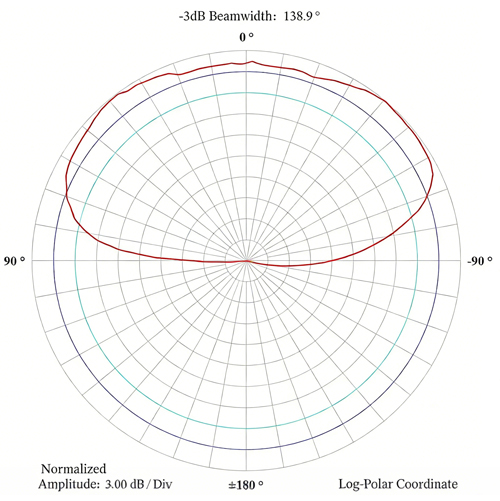

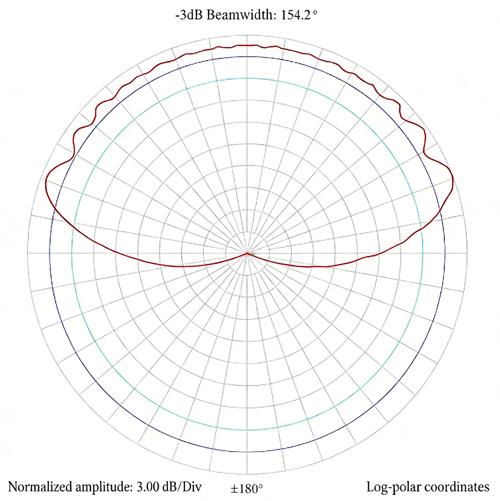

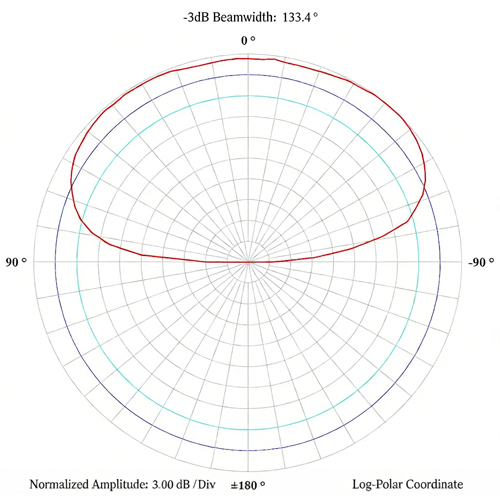

● array element horizontal beamwidth (-3 dB)：≥140° / ≥120° / ≥120°
● Vertical beamwidth (-3 dB)：≤2°(Array) / 25°(array element) / 15°(array element)
● Weight：3.1kg / 2.7kg / 2.7kg
● Interface：Twisted Pair Cable
● Main material：Aluminum alloy
● Maximum Operating Depth：50m
