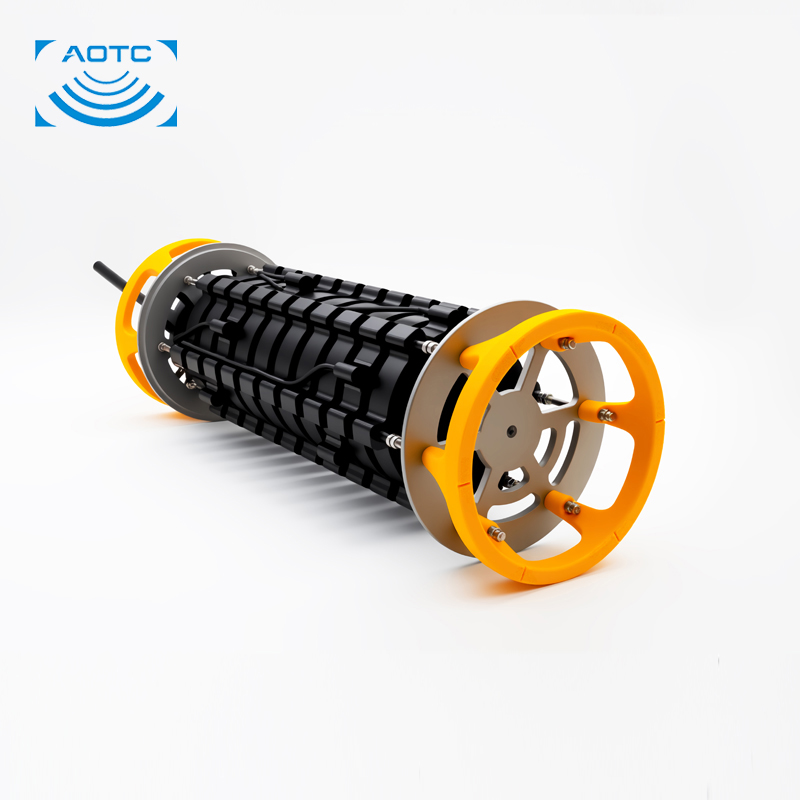

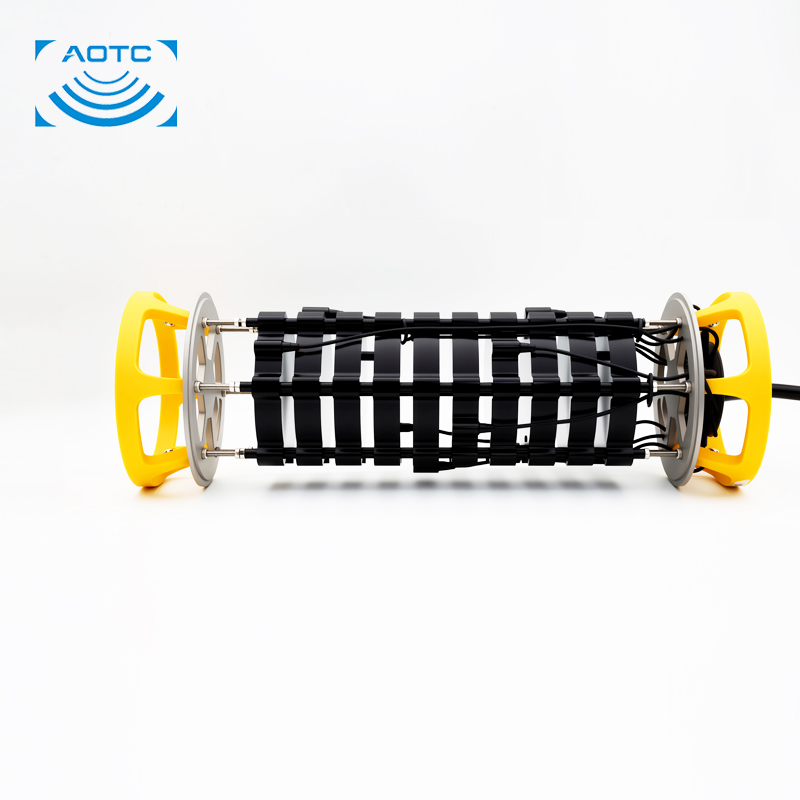

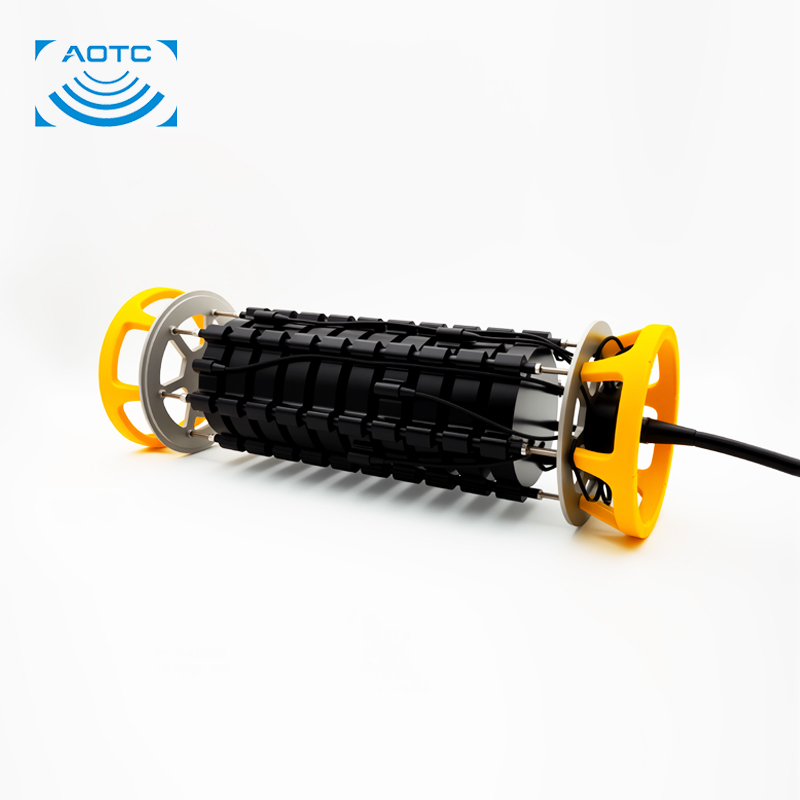

BD0.8-10U Bending Disc Transducer And Array

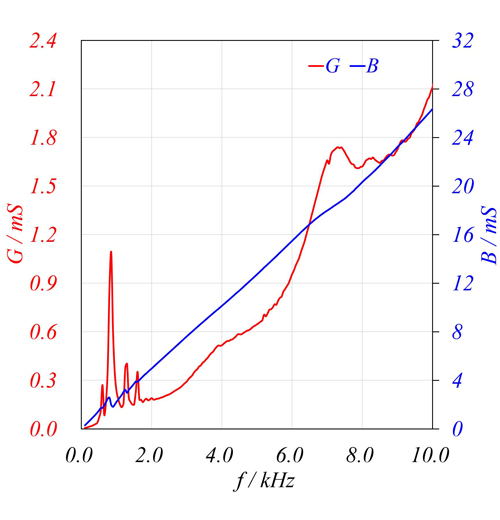

● Static capacitance (C₀): 457 nF
● Resonant frequency (fᵣ): 0.8 kHz
● Recommended frequency range: 0.2~10 kHz

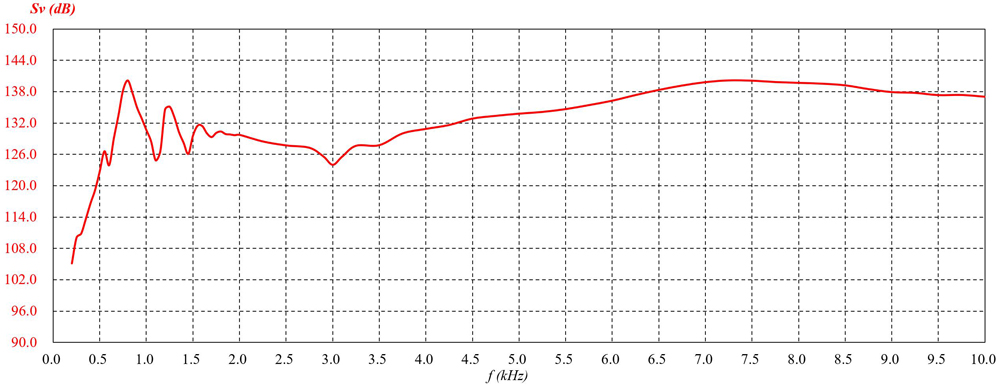

● TVR @ fᵣ: 140 dB re 1 μPa•m/V

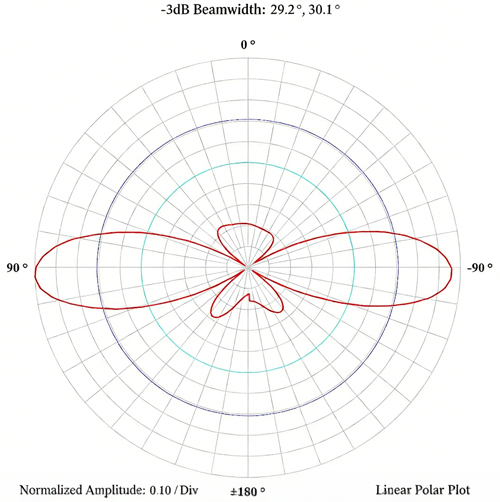

● Horizontal beam pattern: Omnidirectional
● Vertical beam pattern: Omnidirectional at low frequencies, ∞ at high frequencies
● Maximum operating depth: 100 m
● Cable: Φ10 mm two-core shielded polyurethane load-bearing cable
● Cable length: Standard 50 m, customizable
● Main body material: Stainless steel
● Weight: 7.5 kg

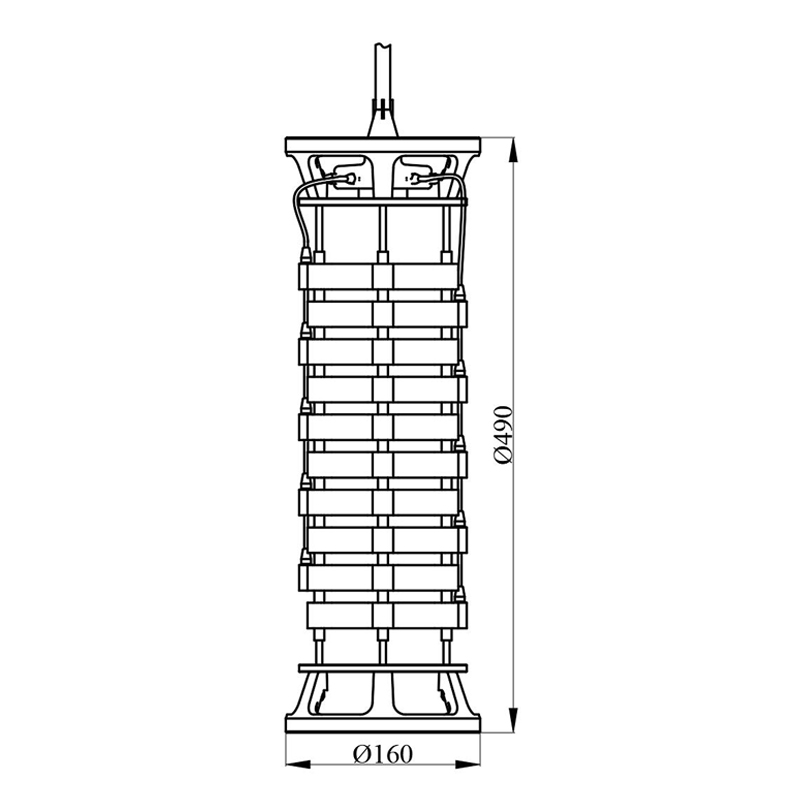

● Dimensions (diameter × height): Φ160 mm × 490 mm
